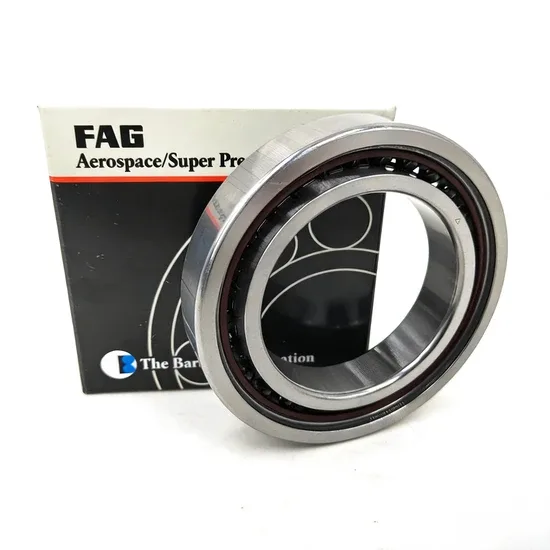

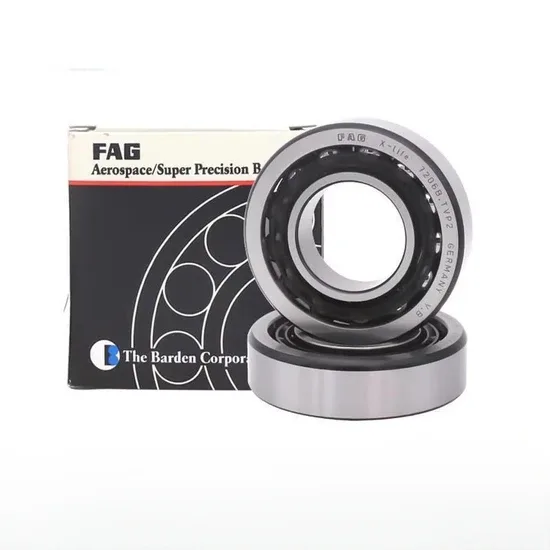

FAG B7201-C-2RSD-T-P4S-UL Angular Contact Ball Bearing P4S

Description

Authorized Distributor Channels — Every FAG B7201-C-2RSD-T-P4S-UL angular contact ball bearing we supply ships with traceable batch documentation sourced through verified distribution partners.

Technical Specifications

Note: The ‘T’ suffix in the designation B7201-C-2RSD-T-P4S-UL requires confirmation against the manufacturer catalog for its specific cage or material definition.

Application Suitability

Precision Suffix Mismatches in High-Speed Spindles

When a maintenance team replaces a spindle bearing based only on the base number B7201, they often overlook the critical P4S precision and UL preload suffixes. A standard P0 or P5 bearing might physically fit the housing, but it lacks the enhanced running accuracy required for minimal runout at 15,000 RPM or higher. This FAG B7201-C-2RSD-T-P4S-UL angular contact ball bearing is engineered specifically to prevent the thermal binding and vibration that destroy spindle performance.

The suffix is the specification. In precision angular contacts, the base designation only gives you the envelope dimensions; the suffixes dictate the actual operating behavior under high-speed radial and axial loads.

I have seen procurement engineers in Southeast Asia source replacements locally to save time, only to install a bearing with the wrong contact angle or no preload matching. The spindle screams, overheats within a week, and the resulting downtime costs significantly more than the bearing itself. Counterfeit precision bearings with cloned QR codes and soft inner rings are entering the supply chain, making verification a critical step before installation [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the FAG B7201-C-2RSD-T-P4S-UL to Spindle Dynamics

The 15° contact angle (C) on this FAG B7201-C-2RSD-T-P4S-UL angular contact ball bearing is optimized for high-speed applications where radial loads dominate but axial stiffness is still required. In a CNC spindle, this angle generates less friction heat compared to 25° or 40° variants, allowing the spindle to reach higher RPMs without thermal expansion compromising the fit. We frequently see buyers match the base number but ignore the contact angle, leading to premature cage failure when the application demands a different load distribution.

Thermal and Contamination Challenges at High RPM

At high rotational speeds, the internal temperature of a spindle bearing rises rapidly due to friction between the rolling elements and the cage. The 2RSD contact seals on this bearing provide a necessary barrier against coolant mist and fine particulate ingress, which are common in machine tool environments. However, contact seals also introduce friction. The P4S precision class ensures that the internal geometry is tight enough to minimize this friction while maintaining the running accuracy needed for a quality surface finish. Proper lubrication is critical here; the sealed design means the bearing relies on its factory-filled grease, and external contamination must be managed by the machine’s external sealing system [NEED_CITE: bearing lubrication life and thermal limits in high-speed spindles].

Decoding the Core Specifications

The P4S precision class is a step above standard P4, offering enhanced running accuracy that is essential for minimizing spindle runout and vibration. This tighter tolerance directly impacts the surface finish of the machined part. The UL suffix indicates universal matching with a light preload. This means the bearing can be paired in back-to-back (DB) or face-to-face (DF) arrangements without needing field scraping or shimming, and the light preload is suitable for high-speed applications where heavy preload would cause excessive heat generation. The 12 mm bore and 32 mm OD place this bearing in the small-diameter, high-speed category, typical for grinding spindles or precision routing heads.

The Hidden Cost of Spindle Downtime

Installing a bearing with incorrect preload or precision class leads to catastrophic damage to the spindle shaft and housing. A soft inner ring from a counterfeit bearing will deform under the clamping force of the lock nut, causing misalignment and rapid failure. According to ISO 281 life calculations, even a slight deviation in internal clearance or preload can drastically reduce the L10 fatigue life of the bearing. The cost isn’t just the replacement bearing; it’s the unplanned downtime, the scrapped workpieces, and the potential need to replace the entire spindle cartridge [NEED_CITE: economic impact of unplanned downtime in manufacturing facilities].

Sourcing Precision Bearings with Traceability

We source the FAG B7201-C-2RSD-T-P4S-UL angular contact ball bearing through authorized distributor channels, ensuring that every unit comes with verifiable documentation. Our cross-reference database doesn’t just match the base number; it aligns the contact angle, precision class, and preload specifications across SKF, NSK, and NTN equivalents, so you can substitute confidently. We provide country-of-origin documentation to support your import compliance and verify the batch through official manufacturer channels. This level of scrutiny is what separates genuine precision components from the soft-ring clones that fail in the field.

Documentation & Authenticity

• Supplier Certificate of Conformity (COC): Confirms the B7201-C-2RSD-T-P4S-UL designation, including the P4S precision class and 15° contact angle.
• Batch Traceability Report: Links the specific bearing lot to the manufacturer’s production records for authenticity verification.
• Country-of-Origin Documentation: Essential for customs clearance and verifying that the bearing originated from an authorized manufacturing facility.
• Dimensional Inspection Data: Confirms that the bore (12 mm) and OD (32 mm) meet the P4S enhanced tolerance requirements.

Storage, Handling & Mounting

• Sealed Integrity: The 2RSD seals are designed for lifetime lubrication; do not wash or attempt to re-grease this bearing before mounting.
• Universal Pairing Marks: For UL matched sets, keep the packaging sealed until the moment of installation to ensure the factory alignment marks are preserved for correct DB/DF stacking.
• Clean Environment: Mounting a P4S precision bearing requires a clean room or laminar flow bench to prevent microscopic dust from compromising the running accuracy.
• Temperature Control: Store in a climate-controlled environment to prevent condensation, which can lead to corrosion on the precision-ground raceways.

Technical Selection & Quotation

To ensure this FAG B7201-C-2RSD-T-P4S-UL angular contact ball bearing meets your specific spindle requirements, please share your operating parameters, including maximum RPM and expected axial load. We can then verify the L10 life and confirm the suitability of the light preload (UL) for your application. If you are replacing an existing bearing, provide the OEM equipment number or the full designation from the old bearing for a precise cross-reference check.

Frequently Asked Questions

Q: How do I verify the authenticity of a FAG P4S precision bearing?
A: Genuine FAG bearings can be verified using the manufacturer’s official app to scan the QR code on the packaging, which links to the batch traceability data. We also provide a Certificate of Conformity that matches the specific lot number on the bearing box.

Q: What is the difference between P4 and P4S precision classes?
A: While both fall under ISO tolerance class 4, P4S offers enhanced running accuracy (specifically for bore and OD tolerances and running accuracy) compared to standard P4. This is critical for high-speed spindles where minimal runout is required for surface finish quality.

Q: What does the ‘C’ suffix mean regarding the contact angle?
A: The ‘C’ suffix indicates a 15° contact angle. This angle is optimized for high-speed applications with predominantly radial loads, offering lower friction heat generation than 25° (AC) or 40° (B) variants.

Q: Can I use this bearing in a back-to-back (DB) arrangement?
A: Yes, the ‘UL’ suffix stands for Universal matching with light preload. This means the bearing is ground so that its faces are flush when stacked in any universal arrangement (DB, DF, or DT) without the need for selective fitting.

Q: What documentation do you provide for import customs?
A: We provide a full documentation package including the commercial invoice, packing list, Certificate of Origin, and HS code classification to ensure smooth customs clearance in your region.

Secure Your Spindle Performance
Contact our engineering team to confirm stock availability and request the full documentation package for the B7201-C-2RSD-T-P4S-UL.
