Description

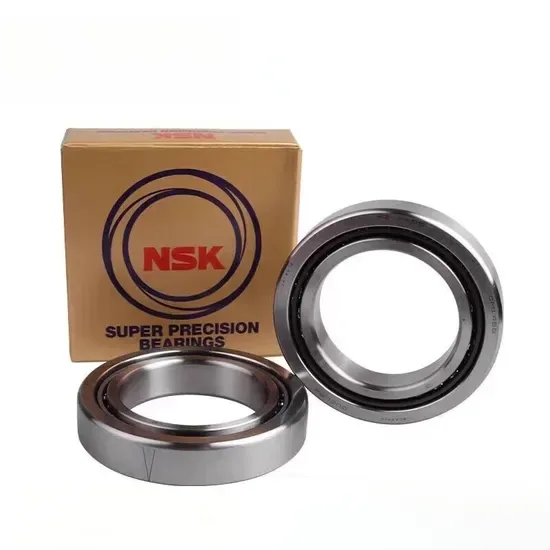

Authorized Channel Procurement — Every NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing ships with batch-level traceability and certificate documentation from verified distributor networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NSK 7900A5SN24TRSUHP5 |
| Bearing Type | Angular Contact Ball Bearing |
| Bore Diameter (d) | 10 mm |
| Outside Diameter (D) | 22 mm |
| Width (B) | 6 mm |
| Weight | 0.009 kg |
| Arrangement | Single |
| Number of Rows | Single |
| Load Direction | Combined Radial and Axial Load |
| Material | Bearing Steel |
| Separated | Separated |
Note: Suffixes A5, SN24, TR, SU, and HP5 require verification against the current manufacturer catalog to confirm specific contact angle, cage material, preload, and precision class designations.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool | High-speed precision grinding spindles, CNC milling spindle noses, internal grinding quills |
| Precision Manufacturing | Optical lens grinding heads, semiconductor wafer dicing saw spindles, coordinate measuring machine rotary axes |
| Aerospace | Gyroscope test rigs, turbine blade profiling spindle noses, fuel pump test stands |
When Spindle Chatter Traces Back to a Suffix Mismatch
A precision grinding operation running the NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing at sustained high RPM demands more than a correct bore and OD match. The hidden variables buried in the suffix chain — contact angle, cage material, preload class, and precision grade — determine whether the spindle holds geometric accuracy or drifts into chatter within weeks of installation.
Replacing a spindle bearing by base number alone is the most expensive shortcut in precision machining.
I have sat on workshop floors in Jeddah watching maintenance teams swap bearings that matched the basic designation perfectly, only to see cage fractures appear within weeks because the replacement carried a steel cage where the original specified a phenolic or polyamide variant rated for high-speed centrifugal loads [NEED_CITE: angular contact bearing cage failure modes under high-speed operation per ISO 15243]. The NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing sits in applications where thermal growth, preload stability, and rotational accuracy converge, and a single suffix discrepancy can cascade into scrapped aerospace shafts or out-of-tolerance die inserts. Counterfeit precision bearings now carry cloned packaging and convincing QR codes, making authorized sourcing and suffix-level verification not optional but structural to the procurement process.
Matching the Bearing to High-Speed Spindle Duty Cycles
Precision grinding spindles operate under a specific envelope: moderate radial loads, controlled axial preload, and rotational speeds that push cage design to its material limits. The NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing is engineered for exactly this duty profile, where combined radial and axial load capacity must hold steady across thermal gradients generated during continuous cutting cycles. Our cross-reference database maps not just the base designation but the complete suffix stack — so when an OEM specifies a particular cage material or preload pairing, the replacement arrives with those parameters intact rather than approximated.
Spindle Operating Conditions That Define Bearing Selection
The operating envelope around a grinding spindle dictates everything about bearing survival: axial thrust from cutting forces, radial loads from belt or motor drive, and thermal expansion that can close internal clearance to zero if the wrong class was specified. Lubrication choice — typically oil-air or oil-mist for high-speed precision applications — must be compatible with cage material and seal configuration. Ambient temperature swings in unclimate-controlled workshops further stress the preload balance, particularly on single-row arrangements where paired preload sets the stiffness baseline [NEED_CITE: thermal effects on angular contact ball bearing preload and stiffness]. Installation precision matters equally: spindle housing tolerances, shaft fit, and clamping nut torque all translate directly into running accuracy once the spindle reaches operating speed.
What the Specifications Mean on the Shop Floor
The single-row angular contact configuration of this bearing supports directional axial loads while maintaining the radial rigidity required for grinding accuracy. At 0.009 kg, the rotating mass is minimal — a deliberate advantage in high-speed spindle design where every gram of rolling element weight translates into centrifugal force on the cage. The bearing steel construction provides the fatigue strength necessary for sustained operation under combined loading. The 10 mm bore and 22 mm OD place this bearing in the compact end of the precision spindle range, typically found in quill assemblies, internal grinding attachments, or secondary spindles on multi-axis machines where envelope constraints are tight. The separated design allows independent fitting of inner and outer rings, which matters when spindle housings require selective fitting for optimal preload.
The Hidden Cost of Unverified Precision Bearings
When a spindle bearing fails prematurely, the visible cost is the replacement part and the technician’s time. The invisible cost is the scrapped workpiece, the missed delivery window, and the reputational damage when a batch of aerospace components goes out of tolerance mid-run. Correct selection verified against the full suffix chain, sourced through traceable channels, eliminates this risk at the specification stage. Wrong clearance class, unmatched preload, or counterfeit material that softens under thermal load all produce failure modes catalogued under ISO 15243 — fatigue spalling, cage fracture, or thermal seizure — none of which appear gradually enough for preventive intervention [NEED_CITE: rolling bearing failure mode classification per ISO 15243].
Why Procurement Engineers Source Precision Bearings Through Verified Channels
Every NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing we supply moves through authorized distributor channels, meaning the documentation chain traces back to the manufacturer’s production facilities rather than an unverified intermediary. Our cross-reference process checks clearance, cage material, and precision class simultaneously — not just the base number — so substitution across the six major brands we cover happens without field surprises. Batch-level traceability documentation ships with every order, and QR code verification pathways through the brand’s official applications are confirmed before dispatch. For buyers managing import compliance, we provide country-of-origin documentation and HS code support aligned with destination customs requirements.
Documentation & Authenticity
- Supplier Certificate of Conformity tied to specific batch and lot numbers for each NSK 7900A5SN24TRSUHP5 shipment
- Batch and lot traceability records linking the bearing back through authorized distributor inventory
- QR code verification pathway confirmed via NSK official applications for authenticity confirmation before installation
- Country-of-origin documentation package prepared for import customs clearance at destination
- Dimensional inspection report available upon request confirming bore, OD, and width tolerances
Storage, Handling & Mounting
- Keep the NSK 7900A5SN24TRSUHP5 in original sealed packaging until the moment of spindle assembly; early exposure risks contamination of the precision raceway surfaces
- Store in a temperature-stable environment away from direct sunlight to prevent degradation of any factory-applied rust preventive on the bearing steel surfaces
- Handle with clean, lint-free gloves to prevent fingerprint corrosion on the 10 mm bore and raceway contact zones before mounting
- During installation, apply clamping force evenly and verify preload against the spindle OEM specification — the single-row separated design requires controlled fitting of each ring independently
- Confirm lubrication compatibility with the cage material before introducing oil-air or grease; mismatched lubricant chemistry can degrade cage integrity at high RPM
Request a Technical Quotation
Share your spindle OEM equipment number and operating parameters — speed, load profile, lubrication method — so we can verify suffix-level compatibility and confirm batch availability for the NSK 7900A5SN24TRSUHP5 super precision angular contact ball bearing. We will return a quotation with lead time, documentation package scope, and cross-reference options if the exact configuration requires substitution.
Frequently Asked Questions
Q: How can I verify the authenticity of an NSK precision bearing before installation?
A: Authenticity verification starts with confirming the QR code against NSK’s official application, then cross-referencing the batch and lot number on the certificate of conformity against the packaging markings. Bearings sourced through authorized distributor channels carry complete documentation chains that unverified intermediaries cannot replicate.
Q: Why does cross-referencing a precision bearing require matching the full suffix chain, not just the base number?
A: The base designation identifies bore, OD, and width. The suffix chain specifies contact angle, cage material, preload class, and precision grade — all of which determine whether the bearing survives the application’s speed, load, and thermal envelope. A base-number match with mismatched suffixes can produce thermal binding, cage failure, or loss of running accuracy within weeks.
Q: What precision classes are typical for grinding spindle applications?
A: Grinding spindles generally require P4 or higher precision classes to maintain geometric accuracy under load. The appropriate class depends on the spindle’s rotational speed, the workpiece tolerance requirements, and the OEM’s original specification — factors we verify during the technical selection review.
Q: What should I do if certain suffixes on my required bearing are unfamiliar or difficult to decode?
A: Some NSK suffix combinations require confirmation against the current manufacturer catalog to decode precisely. We handle this verification as part of the technical selection process, confirming contact angle, cage type, and precision class before quoting to ensure the replacement matches the application requirements exactly.
Source Genuine NSK 7900A5SN24TRSUHP5 Today
Submit your inquiry with application parameters or OEM equipment number to initiate technical verification and receive a documented quotation.
