Description
Authorized channel procurement — Every UCP218 unit we ship is sourced through verified distributor networks with batch traceability and hardness spot-checks before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|

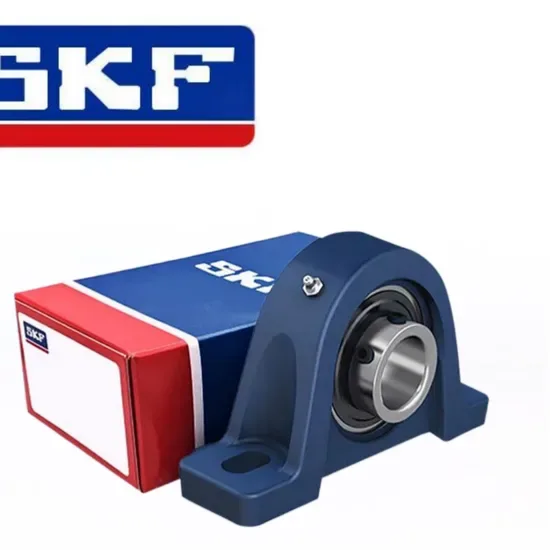

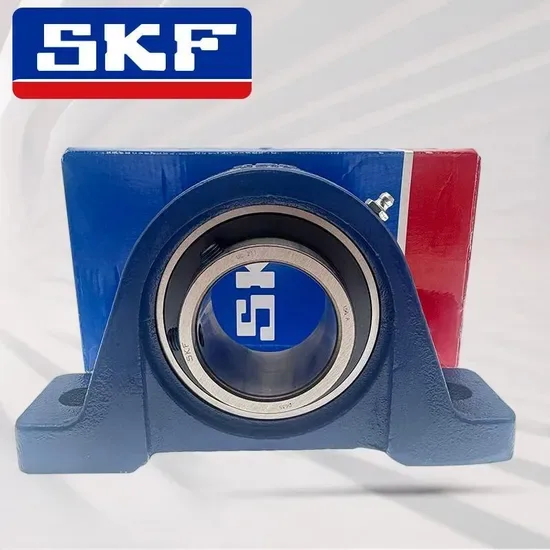

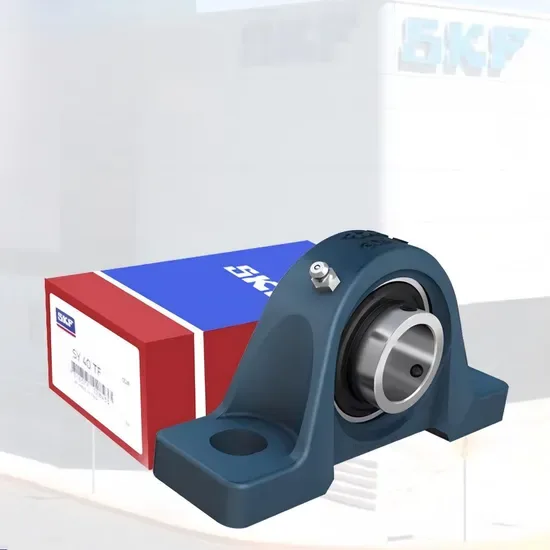

| Designation | UCP218 Pillow Block Unit (Multi-Brand Sourcing) |
| Bearing Type | Pillow Block Unit (Insert Bearing with Housing) |
| Bore Diameter (d) | 90 mm |
| Number of Rows | Single |
| Raceway Type | Spherical Raceway |
| Aligning Capability | Self-Aligning |
| Separated | Yes — insert and housing replaceable independently |
| Locking Method | Set-Screw |
| Housing Type | Pillow Block (Square Base) |
| Feature | Corrosion Resistant, High Temperature, High Speed |
| Standards | JIS B 1559 / ISO 3228 |
Cage material, seal type, and clearance class vary by brand and suffix; confirm against the selected manufacturer’s catalog for the exact variant being quoted.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Vibrating screen drive shafts, crusher conveyor tail pulleys |
| Material Handling | Belt conveyor idler stations, bucket elevator head shafts |
| Agricultural Machinery | Combine harvester rotor drives, grain auger support bearings |
| Steel and Metallurgy | Roll table guide rollers, cooling bed transfer arms |
| General MRO | Replacement pillow blocks for OEM equipment with 90 mm shafts |
What a Soft Inner Ring Costs on a Conveyor Drive
Hardness below 58 HRC on the inner ring turns set-screws into cutting tools.
I have watched a Thai palm oil plant lose a full production shift because a UCP218 pillow block from an unverified middleman had an inner ring that barely read 55 HRC. The set-screws gouged through the raceway during installation, the insert spun on the shaft, and the entire conveyor line sat dead for three days. [NEED_CITE: inner ring hardness requirements per JIS B 1559 for set-screw locking bearings] A mismatched bolt-hole pattern on the housing can compound the problem — even when the bore diameter appears correct, the housing may not seat flat, creating a bending moment that accelerates fatigue on the outer ring. Buyers who verify only the base number expose their maintenance teams to field failures that no warranty will cover.
Matching the UCP218 to High-Load Conveyor Stations
The UCP218 pillow block bearing unit earns its place on conveyor drives and agricultural equipment through the spherical raceway on the outer ring. This geometry allows the insert to pivot inside the housing, compensating for shaft deflection under belt tension or housing misalignment from frame settling. In practice, that self-aligning capability saves maintenance crews from having to re-machine mounting surfaces every time a support bracket shifts. We recently cross-referenced a UCP218 replacement for a limestone quarry in Central Asia where the original NSK units had been back-ordered; by verifying housing bolt-hole spacing and set-screw angular position against the NTN catalog, the substitution went in without shaft modification.
Loads, Contamination, and Thermal Drift on Pillow Blocks
Radial loads dominate on most UCP218 applications — belt tension, material weight, and pulley reaction forces all push perpendicular to the shaft. But conveyor start-stop cycles introduce shock loading that standard CN clearance may not absorb if the shaft runs warm from friction or ambient heat. [NEED_CITE: thermal expansion effects on bearing clearance in pillow block applications] In dusty environments like grain handling or mining, particulate ingress through inadequate seals accelerates wear on the spherical raceway surface. Set-screw locking avoids the complexity of adapter sleeves, but it demands that the shaft surface finish and hardness meet minimum thresholds — otherwise the screws embed unevenly and the insert walks axially under vibration.
Reading the UCP218 Designation Beyond the Base Number
The "UC" prefix identifies the insert as a wide-inner-ring design with set-screw locking, built for direct mounting on standard metric shafts. "P" specifies the pillow block housing with a two-bolt square base. "218" maps to the size series — in this case, a 90 mm bore with housing dimensions governed by JIS B 1559 and ISO 3228. The spherical outer ring diameter and housing bore must match precisely for the self-aligning function to work; even a small deviation in the outer ring OD across brands can leave the insert loose or jammed inside the housing. This is why cross-brand substitution requires verifying more than the base number — housing width, bolt-hole center distance, and set-screw angular position all need to align with the OEM equipment envelope.
What Premature Pillow Block Failure Really Costs
A single unplanned shutdown on a primary conveyor can eclipse an entire year’s bearing budget.
When a counterfeit or mis-specified UCP218 fails, the expense is never just the replacement unit. Production stops, crews mobilize for emergency maintenance, and downstream equipment may suffer cascading damage if the shaft seizes under load. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] Inner ring spalling from inadequate hardness, cage fracture from vibration the original design never anticipated, and housing cracks from bolt-hole misalignment all fall under preventable failure modes when sourcing is traceable and cross-references are verified on clearance and geometry — not just the bore diameter.
How Our Sourcing Process Reduces Field Risk
Every UCP218 pillow block bearing unit we quote is sourced through authorized distributor channels — not grey-market trading desks. We run hardness spot-checks on inner rings before dispatch and verify QR codes against brand official apps to confirm batch authenticity. Our cross-reference database covers SKF, NSK, NTN, Timken, Koyo, and NACHI, matching on housing dimensions, set-screw position, and clearance class rather than the base number alone. For import buyers, we prepare country-of-origin documentation and HS code declarations so customs clearance does not become a bottleneck. When an application involves unusual shaft speeds or contamination levels, our technical team reviews the load spectrum and recommends the correct seal variant before the order is placed.
Documentation & Authenticity
- Supplier Certificate of Conformity with batch and lot traceability tied to the specific UCP218 shipment
- Hardness spot-check results on insert inner rings confirming minimum 58 HRC before release from warehouse
- Third-party dimensional inspection report covering bore tolerance, housing bolt-hole center distance, and outer ring spherical diameter
- Country-of-origin documentation and HS code declarations prepared for import compliance
- QR code verification pathway via brand official apps for batch authenticity confirmation
- Material certificate available on request for the insert bearing steel grade
Storage, Handling & Mounting
- Keep the UCP218 in original sealed packaging until the day of installation — early exposure in humid environments risks corrosion on the spherical raceway before the unit ever sees load
- Store horizontally on a flat shelf; stacking heavy pillow block units can chip the cast iron housing base and compromise bolt-hole alignment
- Before mounting, verify shaft diameter measures within the JIS B 1559 tolerance band for a 90 mm bore — an oversized shaft will crack the inner ring during press-fit, while an undersized shaft guarantees creep under set-screw clamping
- Use a torque wrench on the set-screws following the manufacturer’s specified sequence; uneven tightening distorts the inner ring and introduces a preload imbalance that shows up as vibration within the first operating week
- In high-dust applications such as mining conveyors, confirm that the seal type specified in the suffix matches the contamination level — open or lightly shielded inserts will ingest particulate within the first re-lubrication cycle
Request a Cross-Reference and Availability Check
Share your OEM equipment number or the operating parameters — shaft speed, load type, ambient temperature, and contamination level — so we can verify the correct UCP218 variant and cross-reference across available brands. We will confirm clearance class, seal configuration, and housing bolt pattern against your mounting envelope before quoting. Lead time and batch availability depend on the selected brand and suffix combination.
Frequently Asked Questions
Q: What does UCP218 mean in bearing nomenclature?
A: "UC" designates a wide-inner-ring insert bearing with set-screw locking. "P" identifies the pillow block housing type with a two-bolt square base. "218" is the size series code mapping to a 90 mm bore and specific housing dimensions per JIS B 1559 and ISO 3228.
Q: Can I substitute a UCP218 across SKF, NSK, NTN, and Timken without modifications?
A: The base designation is standardized, but housing bolt-hole center distance, set-screw angular position, and insert outer ring diameter can vary between manufacturers. Always verify these three dimensions against your existing mounting envelope before ordering a cross-brand replacement.
Q: How should I mount the set-screw insert to avoid inner ring damage?
A: Press*nly the inner ring face — never hammer the outer ring or housing. Tighten the set-screws evenly in the manufacturer’s recommended sequence using a calibrated torque wrench. If the shaft surface is scored or below the required hardness, the set-screws will embed unevenly and the insert will walk axially.
Q: What grease and re-lubrication interval is typical for UCP218 units in dusty environments?
A: A lithium-complex or polyurea grease with good mechanical stability is standard. In high-contamination settings like mining or grain handling, re-lubrication intervals shorten considerably compared to clean indoor applications. Purging old grease through the housing relief port helps expel ingested particulate with each cycle.
Q: What is the typical lead time and minimum order for multi-brand UCP218 sourcing?
A: Availability and lead time depend on the specific brand, seal type, and clearance class requested. Standard variants in high-demand brands often ship faster, while specialized suffix combinations require sourcing through the authorized channel network. Contact us with your exact specification for a confirmed timeline.
Get Your UCP218 Cross-Reference Verified
Send your OEM part number or operating parameters for a matched quote with full documentation. Our team responds within one business day with availability, lead time, and the complete file package.
