Description
Authorized Channel Sourcing — Every SKF 7006ACD/P4ADGB batch we ship carries full distributor-chain traceability from the manufacturer’s production facilities to your receiving dock.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF 7006ACD/P4ADGB |
| Bearing Type | Angular Contact Ball Bearing |
| Bore Diameter (d) | 30 mm |
| Outside Diameter (D) | 55 mm |
| Width (B) | 13 mm |
| Number of Rows | Single Row |
| Seal or Shield Type | Double Sealed |
| Weight | 0.100 kg |
| Precision Class | P4A |
| Contact Angle | 25° |
| Clearance Class | Normal (CN) |
| Origin | China |
| Arrangement | Universal Matching, Moderate Preload (GB) |
The "D" portion within the P4ADGB suffix string requires verification against the current manufacturer catalog for exact arrangement designation; contact us to confirm before finalizing spindle stack-up drawings.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool Manufacturing | CNC grinding headstock spindles, high-frequency milling spindles |
| Precision Equipment | Optical inspection rotary stages, coordinate measuring machine axes |
| Robotics | High-speed articulated joint actuators, harmonic drive input shafts |
| Industrial Pumps | High-speed chemical pump shafts, vacuum pump rotor supports |
What Suffix Overlook Costs on a Precision Spindle Rebuild
A single overlooked suffix letter turns a P4A duplex pair into scrap metal inside the spindle housing.
I watched a CNC grinder operator spend an entire shift chasing surface finish ghosts on hardened steel workpieces. The vibration signature pointed straight at the spindle front bearing, but the replacement set had arrived with the right base number and the wrong preload class. By the time the spindle was pulled apart, the cage on one bearing had already started to smear. That grinder sat idle for a week while we sourced the correct GB preload pair and had the housing bored for a new interference fit. Premature spindle failures traced back to suffix mismatches account for a significant share of unplanned downtime in precision machining cells [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. When procurement matches only the 7006 portion and ignores ACD, P4A, and GB, the result is not a near-miss — it is thermal binding, cage fracture, or spindle runout that ruins every part the machine touches.
How the 7006ACD/P4ADGB Meets Spindle Demands at Speed

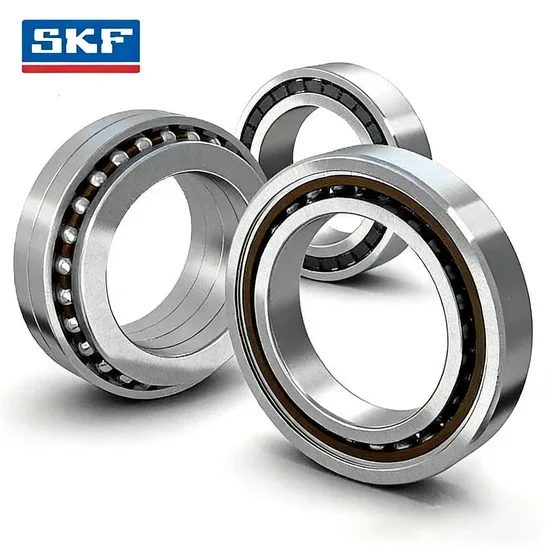

The SKF 7006ACD/P4ADGB angular contact ball bearing is engineered for applications where radial loads dominate but axial stiffness still governs surface finish quality. In a typical CNC grinding spindle, the front bearing pair must resist axial cutting forces while maintaining runout well below what a standard P5 class allows. This bearing’s 25° contact angle strikes a balance: enough axial capacity to hold the grinding wheel steady, yet low enough friction torque to keep heat generation manageable at elevated speeds. We cross-checked this specification against a spindle OEM’s original equipment number for a client in the hydraulic valve sector and confirmed that the ACD internal geometry matched the factory fit — preventing a cage material mismatch that would have shortened grease life considerably.
Thermal Expansion and Running Accuracy Under Continuous Operation
Spindle environments cycle between ambient startup and sustained operating temperatures that can shift inner ring fit by measurable amounts. A bearing running at P4A precision must maintain its dimensional tolerance across that thermal window, and the GB preload class is calibrated to absorb some of that expansion without going slack or stacking excessive axial load. At sustained rotational speeds, the 25° contact angle generates noticeably less friction heat than a 40° B-type variant would under the same radial-dominant load spectrum [NEED_CITE: angular contact bearing heat generation versus contact angle in high-speed spindles]. Lubrication strategy matters here: double sealed construction keeps contamination out of the raceway, but it also means the grease fill is fixed for life — no relubrication port, no mid-service top-up. Installers need to verify that the sealed grease type matches the expected duty cycle temperature range before pressing the bearing onto the shaft journal.
Decoding the Engineering Behind Each Suffix
The ACD designation specifies a 25° contact angle with an optimized internal geometry that distributes contact stresses more evenly across the raceway curvature. This matters for spindle applications where the load zone shifts between pure radial during idle and combined radial-axial under cutting forces. P4A precision reaches ISO tolerance class 4 dimensional accuracy with an additional running accuracy specification — tighter bore and OD tolerances alone would not guarantee the low runout a grinding spindle demands. The GB preload class delivers moderate preload when bearings are universally matched and mounted back-to-back or face-to-face, eliminating the need for field adjustment of spacer lengths. Double sealed construction on a bearing this size means stamped steel shields with contact seals, trading a small amount of friction torque for reliable contamination exclusion in environments where coolant mist and fine grinding swarf are constant threats [NEED_CITE: sealed versus open bearing contamination ingress in machine tool spindles]. Normal clearance is the correct baseline for interference-fitted spindle shafts where the inner ring expansion will reduce internal clearance during operation.
The Hidden Expense of Ignoring the D and GB Letters
Procurement teams sometimes treat suffix strings as optional decoration, ordering "7006 P4" and accepting whatever arrives on the loading dock. When the preload class is wrong — GA instead of GB, or no preload designation at all — the spindle assembler either shims blindly or installs a pair that runs too loose, generating chatter marks on every workpiece. A loose pair will also allow the balls to skid during light-load high-speed segments, accelerating raceway wear and shortening L10 life well before the spindle manufacturer’s recommended rebuild interval. Conversely, excessive preload from a GC substitution causes the bearing to overheat, breaking down the grease and triggering premature cage failure that can score the shaft journal beyond salvage. ISO 281 life calculations assume correct preload, proper alignment, and specified lubrication; deviate on any of these and the calculated rating life becomes meaningless [NEED_CITE: ISO 281 bearing life calculation assumptions versus actual field conditions]. Warranty claims are routinely voided when failure analysis reveals an incorrect preload class or precision grade substitution.
How Our Supply Chain Protects Your Spindle Rebuild
We source the SKF 7006ACD/P4ADGB angular contact ball bearing through authorized distributor channels, so the batch you receive carries documentation back to the manufacturer’s production facilities — not a grey-market warehouse with unknown storage conditions. Our cross-reference database does not stop at matching the base number; we align the contact angle, preload class, precision grade, and seal type before suggesting any interchange. For a recent order from a maintenance team in the mining sector replacing spindle bearings on a portable sampling mill, we flagged that their existing bearings used a machined brass cage while the replacement spec called for polyamide — and caught the mismatch before shipment. Every unit ships with country-of-origin documentation ready for customs filing, and we provide QR code verification pathways through the brand’s official app so your receiving team can confirm authenticity without specialized equipment.
Documentation & Authenticity
- Supplier Certificate of Conformity with full batch and lot traceability tied to the manufacturer’s production run
- Third-party runout inspection confirming P4A running accuracy on each bearing before it leaves our facility
- Country-of-origin documentation and HS code classification ready for import compliance filing
- Material certificate detailing raceway and ball steel specification matching ISO 492 requirements
- QR code verification pathway via SKF official app for receiving-department authenticity confirmation

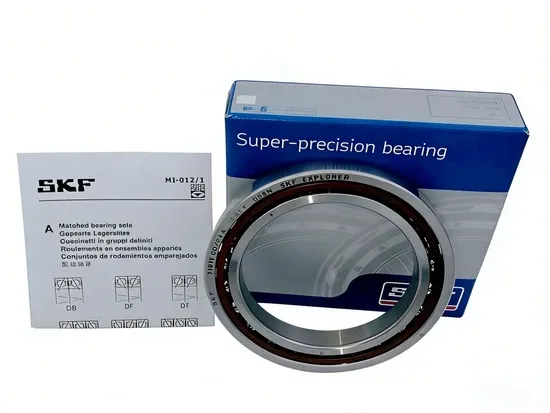

Storage, Handling & Mounting
- Keep the matched GB preload set sealed in original packaging until the moment of mounting; premature opening risks contamination settling on the P4A-precision raceways before installation
- Handle double sealed bearings with lint-free gloves only; fingerprint residue on the outer ring OD can compromise the interference fit in the spindle housing bore
- Mount using induction heating for the inner ring at the temperature specified by the spindle OEM; cold pressing a 30 mm bore risks brinelling the raceway and destroying the P4A running accuracy
- Do not attempt to remove the seals for relubrication; the double sealed design contains a fixed grease fill calculated for the bearing’s speed-life envelope
- Verify shaft journal and housing bore tolerances against the spindle drawing before pressing; a housing bore that is oversized will allow outer ring creep, destroying the contact angle geometry under axial load
Request Your Technical Package
Share your spindle application parameters — operating speed, axial and radial load values, and operating temperature range — so we can confirm the SKF 7006ACD/P4ADGB angular contact ball bearing is the correct match and verify L10 life for your duty cycle. If you are replacing an existing bearing, provide the OEM equipment number or photograph the full suffix string on the bearing label so our cross-reference team can validate every suffix letter before quoting. Request the documentation package and country-of-origin confirmation early to align with your import timeline.
Frequently Asked Questions
Q: Why does matching the base 7006 number not guarantee a correct replacement?
A: The base number defines only bore, OD, and width. Contact angle (ACD = 25°), precision class (P4A), preload (GB), and seal type must all match the original specification. Substituting a 40° B-type bearing or a standard P0 precision unit will cause either excessive heat generation or inadequate running accuracy, leading to spindle chatter or thermal binding.
Q: What is the difference between P4A and standard ABEC 7 precision?
A: Both relate to ISO tolerance class 4, but P4A includes an additional running accuracy specification beyond dimensional tolerances. This tighter running accuracy requirement addresses assembled bore runout and outer ring thickness variation — critical for spindle applications where even minimal runout translates directly into workpiece surface finish defects.
Q: How do GA, GB, and GC preload classes differ in practice?
A: GA is light preload, GB is moderate preload, and GC is heavy preload. The correct choice depends on the ratio of axial cutting force to bearing axial capacity and the speed range. Using GC where GB is specified will cause excessive friction heat at high speeds; using GA where GB is needed allows ball skidding under light loads, accelerating raceway wear.
Q: What does the ACD internal design offer versus a standard AC suffix?
A: The ACD designation indicates an optimized internal geometry for the 25° contact angle, improving load distribution across the raceway contact ellipse compared to earlier AC designs. This optimization matters under combined loading typical in spindle applications where radial and axial forces shift continuously.
Q: How can I verify the authenticity of the bearing I receive?
A: Each bearing carries a QR code that links to the brand’s official verification app. Your receiving team can scan the code to confirm the batch number, manufacturing origin, and product specifications match the accompanying Certificate of Conformity. We also supply third-party dimensional inspection reports for P4A tolerance verification upon request.
Verify Your Spindle Replacement Before It Ships
Send us your OEM equipment number or full application parameters today, and our engineering team will return a verified cross-reference with complete suffix alignment and documentation package preview. Contact us through our inquiry channel to begin the technical selection review.
