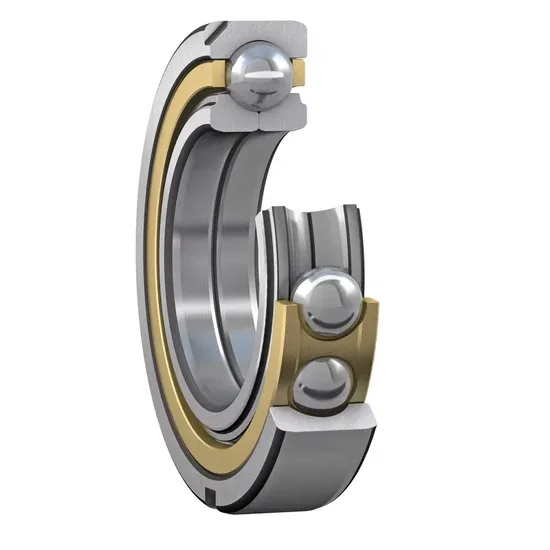

SKF 7014ACE/HCP4ADT Angular Contact Bearing P4A Precision

Description

Authorized Channel Sourcing — every SKF 7014ACE/HCP4ADT angular contact ball bearing we ship traces back through verified distributor records with batch-level documentation and origin files ready for import clearance.

Technical Specifications

Note: The "HC" suffix in this designation remains unverified and should be confirmed against the official SKF catalog before final specification lock-in.

Application Suitability

What Happens When a Spindle Bearing Fails at 25,000 RPM

A P4A angular contact bearing installed wrong is just an expensive countdown to catastrophic spindle damage.

I’ve seen it happen: a CNC shop replaced a matched tandem set with two random single bearings from an unverified supplier. The QR codes looked real, the packaging was convincing, but the inner rings were soft — likely counterfeit stock mixed into the supply chain through an unvetted middleman. Within weeks, thermal binding destroyed the spindle cartridge. The downtime and replacement cost dwarfed what they would have paid for genuine, traceable product. A significant share of premature spindle failures trace back to exactly this kind of sourcing shortcut [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

Matching the SKF 7014ACE/HCP4ADT to Spindle Operating Profiles

Spindle bearings live or die by how well their internal geometry matches the actual duty cycle. The SKF 7014ACE/HCP4ADT angular contact ball bearing is built around a 25° contact angle, which gives it a balanced split between radial load capacity and axial stiffness — exactly what most machining spindles need when cutting forces push both radially and axially at the same time. The tandem (DT) arrangement stacks the axial load capacity of two bearings in the same direction, making it the right call for spindles where thrust loads are consistently unidirectional, like in most turning centers and grinding heads. When we cross-reference this bearing for a client, we don’t just match the base number — we verify that the contact angle, precision class, and arrangement suffix align with the original equipment specification.

Thermal Behavior and Precision Demands at High Speed

At speeds approaching 29,000 r/min under oil-air lubrication, heat generation inside the bearing becomes the dominant design constraint. The P4A precision class ensures tight running accuracy, which directly limits vibration-induced heat at high RPM. Temperature rise affects internal clearance: as the inner ring expands faster than the outer ring, any initial clearance shrinks. If a standard CN clearance bearing were installed where the application demands preloaded tandem operation, the result is thermal binding — the exact failure I’ve watched wipe out a CNC line. Lubrication method matters just as much; oil-air systems deliver metered lubricant while carrying heat away, whereas grease packing would overheat and degrade rapidly at these speeds [NEED_CITE: thermal equilibrium and lubricant life in high-speed angular contact bearings].

Decoding the Engineering Behind the Designation

The ACE suffix signals a 25° contact angle with an optimized internal raceway geometry. That optimization redistributes contact stress across a larger area of the ball-raceway interface, which reduces localized fatigue and supports the high-speed ratings this bearing carries. The P4A precision class goes beyond standard ISO class 4 tolerances — it adds specific running accuracy requirements that control bore and outside diameter runout, critical for spindle applications where even minimal radial displacement translates directly into workpiece surface finish errors. The DT (tandem) suffix means these bearings are paired to share axial loads in a single direction; unlike back-to-back (DB) pairs, tandem sets do not resist moment loads and should not be used where the spindle sees significant tilting forces. The open design — no integral seals or shields — is deliberate for this speed range, as contact seals would generate unacceptable friction heat at oil-air lubricated speeds.

The Hidden Expense of a Shortcut on a P4A Spindle Bearing

When procurement focuses on unit price alone for a bearing this critical, the real costs hide in the aftermath. Counterfeit bearings with soft inner rings may pass visual inspection and even casual hardness checks, but under sustained high-speed loading they develop spalling far earlier than genuine product — and by then the spindle housing, seals, and adjacent components may all need replacement. Using a bearing with mismatched precision (say, a P5 substituted where P4A was specified) introduces runout that degrades machining accuracy before any physical failure occurs, producing scrap parts and triggering warranty disputes with end users. ISO 281 provides the framework for calculating bearing rating life, but that calculation assumes genuine materials and correct precision — neither of which applies when the supply chain is compromised [NEED_CITE: ISO 281 bearing life calculation assumptions and material quality factors].

How Our Sourcing Process Protects Your Spindle Investment

Every SKF 7014ACE/HCP4ADT angular contact ball bearing we supply moves through authorized distributor channels — not gray-market brokers or unverified trading companies. We provide batch-level traceability that connects your purchase back to the production lot, which matters when your end customer requires material certification for their own quality records. Our cross-reference database doesn’t just swap base numbers between brands; it checks that clearance, cage material, and precision suffixes all match before we propose an alternative. When a client needs import documentation, we prepare country-of-origin certificates and HS code support so customs clearance doesn’t become a bottleneck. We also guide authenticity verification through the official SKF app QR pathway, giving your receiving team a concrete check they can perform before the bearing goes into inventory.

Documentation & Authenticity

• Supplier Certificate of Conformity linked to the specific batch and lot number of your SKF 7014ACE/HCP4ADT shipment
• Third-party dimensional inspection report verifying P4A running accuracy before dispatch
• QR code verification pathway through SKF official mobile applications for on-site authenticity confirmation
• Country-of-origin documentation prepared for import compliance and customs filing
• Material certificate confirming bearing steel specification and heat treatment records

Storage, Handling & Mounting

• Keep the matched DT pair sealed in original packaging until the moment of installation — breaking the seal early risks contaminating the factory-cleaned raceways on this open-design bearing
• Store flat in a climate-controlled area below 60% relative humidity to prevent corrosion on the exposed precision-ground surfaces of this P4A class component
• Handle with lint-free gloves only; fingerprint acids etch into the raceway surfaces of a 70 mm bore bearing and create initiation points for fatigue spalling
• Mount using controlled induction heating of the inner ring only — never press through the ball complement, as point loading on the 25° contact angle raceway causes Brinell damage invisible to the naked eye
• Apply the specified oil-air lubricant immediately after mounting; running this open bearing dry even briefly at operational speeds will score the optimized ACE raceway geometry within seconds

Request a Technical Review Before You Order

Share your spindle application parameters — speed range, load profile, lubrication system, and operating temperature — so we can verify that the SKF 7014ACE/HCP4ADT angular contact ball bearing is the correct match for your equipment. If you’re replacing an existing bearing, send us the OEM equipment number or the full designation from the bearing currently in service, and we will cross-reference it against our database to confirm interchangeability. Ask for the documentation package upfront so you can review traceability and origin files before committing to the order.

Frequently Asked Questions

Q: How do I verify that the SKF 7014ACE/HCP4ADT I receive is genuine?
A: Each bearing can be scanned using the SKF official mobile application, which reads the product QR code and confirms authenticity against the manufacturer’s database. We also supply a Certificate of Conformity with batch and lot traceability that connects back to the authorized distribution channel.

Q: What is the difference between a tandem (DT) and a back-to-back (DB) arrangement for this bearing?
A: A tandem pair stacks both bearings to share axial load in one direction, doubling axial capacity but offering no resistance to moment loads. A back-to-back pair resists axial loads in both directions and handles moment loads, making it suitable where the spindle sees bidirectional thrust or tilting forces.

Q: Why does the contact angle matter for spindle applications?
A: The 25° contact angle on the ACE design balances radial and axial load capacity. A 15° contact angle offers higher radial capacity with less axial stiffness, while 40° provides maximum axial rigidity but generates more friction heat — a trade-off that directly affects spindle thermal stability and speed capability.

Q: Can I substitute a P5 precision bearing where P4A is specified?
A: P4A includes specific running accuracy requirements beyond standard ISO class 4 tolerances. Installing a P5 bearing in a spindle designed for P4A introduces additional runout, which degrades surface finish and accelerates vibration-induced fatigue. Always match the precision class to the original equipment specification.

Confirm Your SKF 7014ACE/HCP4ADT Spindle Bearing Requirement
Send us your application parameters or OEM reference number, and we will return a verified match with full traceability documentation and lead-time confirmation.
