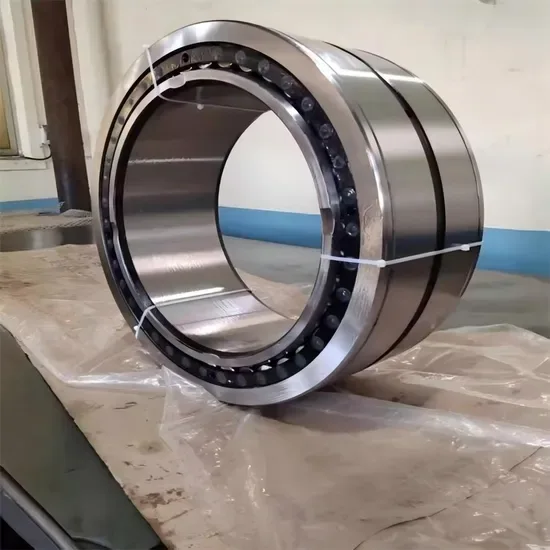

1200SLPT1752 Split Spherical Roller Bearing for Converter Trunnion

Description

Traceable Channel Sourcing — Every 1200SLPT1752 split spherical roller bearing we supply ships with full batch documentation and certificate of conformity tied to authorized distributor records.

Technical Specifications

The suffix SLPT1752 does not match a standard catalog designation and requires manufacturer catalog confirmation before final specification lock-in.

Application Suitability

What Happens When a Converter Trunnion Bearing Fails Mid-Campaign

A single unplanned trunnion stoppage can idle an entire steelmaking line for days.

I was called to a steel plant years ago where a converter trunnion bearing seized within weeks of installation. The inner ring hardness was well below spec, the QR code was a clone, and the cage showed fatigue cracks that should not have appeared so early. The shutdown cost them a fortune in lost heats and emergency rigging. Counterfeit bearings entering the supply chain through unverified middlemen remain a serious problem in heavy metallurgical service, where the loads and temperatures leave no margin for material shortcuts [NEED_CITE: counterfeit bearing detection methods in heavy industry].

Matching the Bearing to Trunnion Service Conditions

Converter trunnions demand a bearing that handles extreme radial loads, slow oscillating rotation, and elevated ambient heat from the vessel shell. The 1200SLPT1752 split spherical roller bearing for converter trunnion applications is designed to be installed without full shaft disassembly, cutting maintenance windows significantly. We once supplied a set for a 150-tonne converter where the existing housing could not be removed — the split design let the maintenance crew swap the bearing in a single shift instead of the usual multi-day teardown. Sourcing through authorized distributor channels means we can pull documentation that matches the specific production batch to the operating envelope your engineers specify.

Load Spectrum, Temperature, and Contamination Challenges

Trunnion bearings see predominantly radial loading from the vessel weight, but tilting during tapping introduces axial components and moment loads. Speeds are low — often just a few revolutions per minute — but temperatures at the bearing seat can climb well above ambient due to radiant heat from the converter shell. This thermal gradient affects internal clearance: a bearing specified with standard CN clearance may bind when the inner ring expands faster than the outer ring. Contamination from slag dust and scale is constant, making the sealed construction critical. Grease degradation accelerates at elevated temperatures, so re-lubrication intervals must account for thermal aging rather than calendar time [NEED_CITE: bearing lubrication life at elevated temperatures per ISO 281].

Decoding the Sealed Split Construction

The split arrangement allows the inner ring, outer ring, and cage assembly to be divided into halves, enabling field installation around an existing shaft without dismantling adjacent equipment. Sealed construction keeps out slag fines and moisture that would otherwise pit raceways and accelerate spalling. Bearing steel material provides the core load-carrying capacity needed for the heavy static and dynamic loads typical of converter service. The high-temperature feature designation indicates suitability for environments where standard grease and seal materials would degrade prematurely. These design choices work together: a split housing without adequate sealing would let contamination destroy the rollers within weeks, while sealed construction without split capability would force a complete mechanical teardown for every replacement.

What Incorrect Sourcing Really Costs

Fitting a counterfeit or incorrectly specified bearing on a converter trunnion does not just mean an early replacement — it risks catastrophic damage to the trunnion journal itself, which can require re-machining or full shaft replacement. Soft inner rings deform under load, shifting the vessel alignment and stressing the drive gearing. Premature cage failure sends roller fragments into the raceway, turning a planned swap into an emergency extraction. Under ISO 15243 failure classification, these modes fall squarely into material defects and mounting errors — categories that void warranty and shift liability to the procurement chain [NEED_CITE: rolling bearing failure mode classification per ISO 15243].

How We Reduce Procurement Risk on Large-Bore Bearings

Every 1200SLPT1752 split spherical roller bearing for converter trunnion service we quote is sourced through authorized distributor channels with traceable documentation back to the production batch. We cross-reference the required clearance, cage material, and precision suffixes — not just the base designation — so substitutions between SKF, FAG, TIMKEN, and other major brands maintain field reliability. Our team provides origin identification documentation for import compliance, and we can arrange third-party dimensional and material inspection before shipment. When a maintenance engineer sends us an OEM equipment number, we verify the match against the actual operating temperature and load rather than relying on a drawing that may not reflect field modifications.

Documentation & Authenticity

• Supplier Certificate of Conformity tied to the specific production batch of this split spherical roller bearing, listing heat number and inspection results
• Third-party dimensional inspection covering bore roundness, OD, and split-housing mating surfaces before dispatch
• Material certificate confirming bearing steel composition and hardness for the high-temperature trunnion application
• Country-of-origin documentation and HS code classification for customs clearance on international shipments
• QR code verification pathway via brand official apps where the manufacturer supports digital authentication
• Batch and lot traceability records retained on file for future re-order or failure investigation reference

Storage, Handling & Mounting

• Keep the split halves sealed in original packaging until the mounting shift begins; early exposure to humid mill air risks corrosion on the precision-matched split faces of this 1200 mm bore bearing
• Store horizontally on a level rack to prevent distortion of the outer ring halves, which must mate perfectly during reassembly in the trunnion housing
• Use clean gloves when handling the sealed surfaces; finger oils on the bearing steel raceways can create initiation points for corrosion under high-temperature converter conditions
• Induction heating of the inner ring halves must follow the manufacturer’s recommended temperature range to avoid annealing the raceway surface or damaging the seal lips
• Confirm residual internal clearance after mounting, as the split housing clamping force can reduce clearance if the housing bore is out of round
• Align the factory match marks on the split outer ring halves during reassembly to preserve the original load distribution across both roller rows

Request a Technical Review Before Committing

Share your converter trunnion operating parameters — vessel weight, tilting frequency, ambient temperature at the bearing seat, and housing dimensions — so we can verify clearance class and confirm cross-brand interchangeability. If you have an OEM equipment number or existing bearing designation, send it over and we will run a full suffix-level comparison. We can also provide the documentation package and country-of-origin confirmation before you commit to the order.

Frequently Asked Questions

Q: How do you verify cross-reference accuracy for split spherical roller bearings across different brands?
A: We align three parameters simultaneously: internal clearance, cage material and design, and precision class. A base-number match alone is insufficient — different manufacturers may use different default clearances or cage constructions for the same nominal size. For split spherical roller bearings, we also verify that the split-face geometry and clamping method are compatible with your existing housing.

Q: What are typical lead times for ultra-large split bearings like the 1200SLPT1752?
A: Ultra-large split spherical roller bearings carry typical multi-week lead times due to their specialized production scheduling. We recommend requesting availability early in your maintenance planning cycle so we can confirm batch allocation and arrange pre-shipment inspection without delaying your shutdown window.

Q: Do you provide installation guidance for split bearings in trunnion applications?
A: Yes. We supply mounting instructions covering induction heating parameters, split-face alignment procedures, and residual clearance verification. If your maintenance team encounters unexpected fit issues during installation, our technical support is available for remote troubleshooting and failure analysis follow-up.

Q: How do you handle the SLPT1752 suffix which is not a standard catalog designation?
A: We treat unverified suffixes as requiring confirmation against the manufacturer’s current catalog and drawing set before quoting. This ensures the bearing you receive matches the dimensional envelope and performance rating your application demands, rather than relying on assumption.

Q: What post-delivery support is available if the bearing shows early signs of distress?
A: We assist with failure analysis including visual inspection guidance, lubrication condition assessment, and root-cause determination aligned with ISO 15243 classification. If the issue traces to a material or manufacturing defect within the warranted scope, we coordinate the claim through the authorized distributor channel.

Get Your Trunnion Bearing Quotation Started
Send us your converter specifications or OEM equipment number, and we will return a sourced-and-verified proposal with full documentation and lead time.
