Description

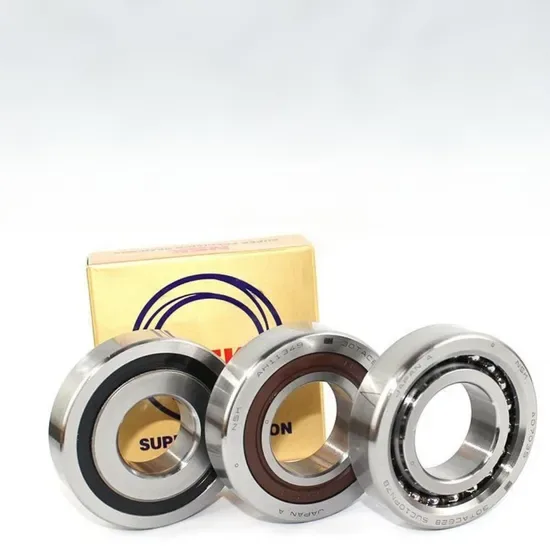

Authorized Sourcing Chain — Every NSK 7200A5TRSUELP3 angular contact ball bearing ships with distributor-level traceability documents linking the batch to verified production records.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NSK 7200A5TRSUELP3 |
| Bearing Type | Angular Contact Ball Bearing |
| Bore Diameter (d) | 10 mm |
| Number of Rows | Single |
| Load Direction | Combined Radial and Axial Load |
| Material | Bearing Steel |
| Weight | 0.009 kg |
| Precision Class | P3 |
| Separated | Separated |
| Arrangement | Single (Universal Mounting) |
| Transport Package | Carton Box |
Suffixes A5, T, R, and SUE appear in the manufacturer’s designation but require catalog confirmation for full decoding; LP3 confirms P3 precision class per ISO 492.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Machinery | High-speed spindle nose positions, precision indexer rotary tables |
| Robotics | Joint actuator supports requiring low runout and axial rigidity |
| Precision Equipment | Optical measuring device spindles, coordinate measuring machine axes |
Why Ignoring Suffix Details Wrecks Spindle Performance
A 25° contact angle paired with P3 precision is not a generic angular contact bearing — it is a spindle component engineered for tight thermal and dimensional margins.
When procurement matches only the base number 7200 and overlooks the A5 contact angle, cage material, or precision suffix, the installed bearing may spin freely on the bench but fail under spindle thermal load. Standard P0 or P6 grades introduce runout that compounds at high RPM, generating vibration signatures that destroy surface finish on machined parts. Counterfeit bearings with cloned markings and soft inner rings pass visual inspection but spall within weeks under combined loading [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The NSK 7200A5TRSUELP3 angular contact ball bearing exists precisely to eliminate these field surprises.
Matching Precision to Spindle Speed Envelopes
Machine tool spindles demand bearings that maintain radial and axial stiffness across thermal gradients. The P3 precision class of this NSK 7200A5TRSUELP3 angular contact ball bearing ensures tighter bore and outside diameter tolerances than conventional grades, keeping interference fits predictable during assembly. In my experience supplying precision angular contacts to grinding shops, the difference between a P4 and a P3 in a high-speed spindle often shows up not as immediate failure but as gradual loss of surface finish over a production run — a problem that gets blamed on tooling when the root cause sits in the bearing pocket. Cross-reference substitutions that ignore the universal mounting suffix pairing logic lead to preload errors that no amount of adjustment can correct after assembly.
Thermal Expansion and Load Spectrum Demands
Spindle environments cycle between ambient start-up and sustained operating temperatures that can exceed 60°C at the bearing outer ring. This thermal gradient alters internal clearance and shifts the contact ellipse across the raceway. A bearing with incorrect initial clearance will either preload itself into excessive friction or loosen enough to allow axial float under cutting forces. The single-row angular contact configuration handles combined radial and axial loads in one direction, which is why spindles typically mount them in opposed pairs or sets [NEED_CITE: angular contact bearing mounting arrangements and preload effects]. Lubrication choice — oil-air mist versus grease-packed — directly affects speed capability and thermal equilibrium, and the open design of this bearing accommodates either method depending on the spindle builder’s system architecture.
Decoding the Engineering Behind the Designation
The P3 precision class sits above P4 in the ISO 492 tolerance hierarchy, meaning this bearing meets tighter dimensional and running accuracy limits suitable for applications where shaft runout translates directly into part quality defects. Bearing steel construction provides the raceway hardness necessary to resist surface fatigue under the concentrated Hertzian contact stresses that angular contact geometries produce. At 0.009 kg, the low rotating mass reduces centrifugal loading on the outer raceway at high RPM, a factor that becomes significant when spindle speeds push into the upper range of the bearing’s speed envelope. The separated design allows independent fitting of inner and outer rings — critical when spindle housings use interference fits on the outer ring while the shaft uses a transition or light press fit on the inner ring. The universal mounting arrangement suffix means this bearing can be paired in back-to-back, face-to-face, or tandem configurations with matched preload when ordered as a set.
The Hidden Price of Substituting on Base Number Alone
Dropping in a bearing that shares the 7200 bore and OD but carries a different contact angle, cage design, or precision grade creates a cascade of mismatches. Wrong contact angle alters the axial stiffness-to-radial stiffness ratio, making the spindle either too compliant under thrust cutting forces or too rigid to absorb thermal growth. A phenolic cage specified for high-speed oil mist lubrication replaced with a standard steel cage generates cage instability and premature wear [NEED_CITE: cage material selection and high-speed bearing failure mechanisms]. Counterfeit bearings with soft rings and cloned packaging bypass incoming inspection but produce dimensional scatter that makes consistent preload setting impossible. These failures rarely announce themselves immediately — they surface as scrap parts, warranty claims, or unplanned downtime weeks after installation, long after the purchasing decision is forgotten.
How Our Supply Chain Protects Your Spindle Investment
We source NSK precision bearings through authorized distributor channels, which means every shipment carries documentation traceable back to the manufacturer’s production batch. Our cross-reference database does not stop at matching bore and outside diameter — it aligns contact angle, cage material, precision class, and preload designation so that a substitution from another brand preserves the engineered performance envelope. When a buyer in South America needed to replace a spindle bearing on short notice and the exact NSK suffix combination showed multi-week availability, we identified a dimensionally and functionally equivalent alternative with matching P3 tolerance and 25° contact angle, verified through side-by-side specification review. Country-of-origin documentation accompanies each shipment to satisfy import compliance requirements, and QR verification pathways through the NSK official app allow receiving inspectors to confirm authenticity before the bearing leaves the box.
Documentation & Authenticity
- Supplier Certificate of Conformity linking the specific batch of NSK 7200A5TRSUELP3 angular contact ball bearings to the authorized distributor purchase record
- Third-party dimensional and runout inspection report confirming P3 running accuracy before shipment leaves our facility
- Material certificate documenting bearing steel grade and heat treatment compliance for the supplied lot
- Country-of-origin documentation prepared for import customs clearance in the destination market
- QR code verification pathway via NSK official applications enabling on-site authenticity confirmation by receiving personnel
Storage, Handling & Mounting
- Retain the sealed carton packaging until the moment of spindle assembly; early exposure of this P3 precision bearing to shop-floor particulate compromises raceway surface integrity
- Store the 10 mm bore bearings horizontally in climate-controlled inventory below 60% relative humidity to prevent corrosion on the exposed bearing steel raceways
- Use lint-free gloves when handling the separated inner and outer rings to avoid fingerprint etching on the precision-ground surfaces
- For universal mounting pair configurations, keep matched set markings aligned during installation to preserve the factory preload relationship
- Apply induction heating to the inner ring only when mounting on the spindle shaft; overheating the outer ring of this angular contact bearing alters the raceway geometry at P3 tolerance levels
- Confirm oil-air or grease lubrication compatibility with the open bearing design before final assembly, as relubrication access depends on the spindle housing port configuration
Request a Technical Quotation
Share your spindle speed, operating temperature range, and mounting arrangement so we can verify that the NSK 7200A5TRSUELP3 angular contact ball bearing suffix combination matches your application requirements. If you are cross-referencing from another brand, provide the full OEM equipment number and existing bearing designation including all suffixes for a complete interchange review.
Frequently Asked Questions
Q: How can I verify that the NSK 7200A5TRSUELP3 I received is genuine?
A: NSK provides QR code verification through their official mobile applications, which trace the bearing back to the production batch. We supply a Certificate of Conformity and authorized distributor documentation with every shipment so you can cross-check the batch number against both our records and the manufacturer’s system.
Q: What happens if I substitute a different brand using only the base number 7200?
A: Base number matching ignores contact angle, cage material, precision class, and preload designation. A bearing with the same bore and OD but a 15° contact angle instead of 25° will have fundamentally different axial stiffness characteristics, leading to spindle deflection under thrust loads or thermal binding at operating temperature.
Q: How does P3 precision compare to P4 and P5 for spindle applications?
A: P3 represents a tighter tolerance band than P4 and P5 under ISO 492, with more restrictive limits on bore diameter deviation, outside diameter deviation, and running accuracy. For spindle applications, this translates to lower assembled runout and more predictable preload behavior across a matched set.
Q: What do the suffixes A5, T, R, SUE, and LP3 indicate on this bearing?
A: LP3 confirms the P3 precision class. The remaining suffixes — A5, T, R, and SUE — are NSK-specific designations relating to contact angle, cage type, and universal mounting arrangement, and their exact definitions should be confirmed against the current NSK precision bearing catalog for your specific application.
Q: What is the typical lead time for precision angular contact bearings in this size range?
A: Availability depends on current stock at authorized distributor channels and whether the exact suffix combination is in production. We confirm batch availability and lead time at the quotation stage, along with options for functionally equivalent alternatives if the specific configuration requires extended scheduling.
Confirm Your Spindle Bearing Specification
Send us your application parameters or OEM equipment number for a suffix-verified quotation on the NSK 7200A5TRSUELP3 angular contact ball bearing, including full interchange analysis and documentation package details.
