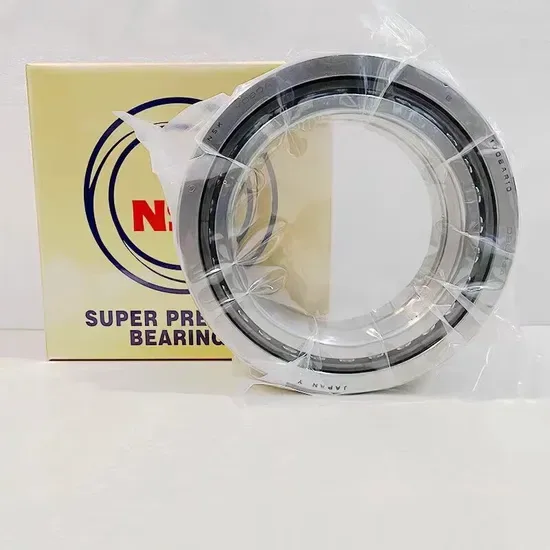

NSK 7200ATYNSUELP5 Angular Contact Ball Bearing P5 Precision

Description

Authorized Channel Traceability — Every NSK 7200ATYNSUELP5 unit ships with batch-level documentation confirming its path from the manufacturer’s production facilities to your spindle housing.

Technical Specifications

Application Suitability

Why a 30° Contact Angle Changes Everything on Small-Bore Spindles

The NSK 7200ATYNSUELP5 angular contact ball bearing balances axial rigidity with thermal stability in ways that 15° alternatives simply cannot match at this bore size.

When a procurement engineer substitutes a 15° contact angle bearing into a spindle designed for 30°, the axial stiffness drops at the exact moment cutting forces push the shaft off-center. I once traced a chatter mark problem on a CNC lathe back to this exact mismatch — the base number was right, but the contact angle suffix had been swapped by a middleman chasing a lower unit price. The workpiece surface finish degraded within days, and the shop owner absorbed the scrap cost before anyone connected it to the bearing. Counterfeit units with cloned packaging now make this kind of substitution harder to catch at receiving inspection. [NEED_CITE: angular contact bearing contact angle effect on axial stiffness]

How This Bearing Fits High-Speed Precision Spindles

At 10 mm bore, the NSK 7200ATYNSUELP5 angular contact ball bearing sits in the size range where spindle designers need every advantage in running accuracy and friction control. The P5 tolerance class keeps radial and axial runout within the tight envelope that small-diameter spindles demand, while the polyamide cage minimizes inertia so the bearing reaches operating speed without excess heat buildup. We have matched this exact configuration to replacement orders where the OEM specified a universal-matched single bearing, letting the machine builder set preload during assembly rather than relying on a factory-paired set.

Thermal and Load Demands at Spindle Speeds

Small-bore spindle bearings face a punishing combination: high rotational speed generates friction heat that expands the inner ring against the shaft, while combined radial and axial cutting loads test the contact angle’s capacity continuously. The 30° contact angle on the NSK 7200ATYNSUELP5 angular contact ball bearing provides meaningful axial load capacity without pushing friction torque to the levels a 40° design would create at these speeds. Temperature management becomes critical because polyamide cages have an upper continuous operating limit that must stay compatible with the spindle’s steady-state thermal profile. Oil-air or minimal quantity lubrication is typically specified to keep the raceway film thin enough for low drag while still protecting against metal-to-metal contact. [NEED_CITE: polyamide cage operating temperature limits in angular contact bearings]

Decoding the Suffix Chain: A, TYNS, U, E, LP5

Each suffix on the 7200ATYNSUELP5 tells a specific engineering story. The A designates the 30° contact angle, which positions the load line to handle the combined radial-axial forces common in spindle nose positions. TYNS specifies the polyamide cage — lighter than brass, generating less friction heat at high RPM, and well-suited to the oil-air lubrication environments most modern spindles use. The U suffix means universal matching, so this single bearing can be mounted in any arrangement (back-to-back, face-to-face, or tandem) with preload set by the machine builder’s clamping force. The E indicates an optimized internal geometry where ball count and raceway curvature have been refined for better load distribution. LP5 confirms ISO 492 Class 5 precision, the standard threshold for machine tool spindle applications where runout directly affects workpiece surface finish.

The Hidden Cost of Ignoring Suffix Details

A procurement team that matches only the base number 7200 and overlooks the suffix chain risks installing a bearing that fails the application on multiple fronts. A P0-precision substitute in a P5 spindle position will introduce runout that shows up as visible chatter marks on machined surfaces. A brass cage swapped in place of polyamide adds rotational mass and friction heat, potentially pushing the spindle past its thermal equilibrium point and forcing unplanned cool-down cycles. ISO 15243 classifies these outcomes under different failure modes — geometric fatigue from misalignment, surface distress from inadequate lubrication film — but the shop floor experiences them as one thing: a machine that will not hold tolerance. [NEED_CITE: bearing failure modes classified under ISO 15243]

What Our Sourcing Process Delivers

We procure the NSK 7200ATYNSUELP5 angular contact ball bearing through authorized distributor channels, which means every unit carries a traceable batch record back to the manufacturer. Our cross-reference database checks not just the base number but the full suffix chain — contact angle, cage material, precision class, and matching type — so when a buyer asks whether an SKF or FAG equivalent exists, we confirm whether the substitute actually aligns on all four dimensions. We have seen too many field failures traced to partial cross-references where the precision class or contact angle drifted. Each shipment includes the documentation package your receiving inspection and customs broker both need, and we support QR code verification through the official NSK authentication app for buyers who want to scan before they mount.

Documentation & Authenticity

• Certificate of Conformity from authorized NSK distributor channels confirming genuine origin for each batch of 7200ATYNSUELP5 units
• Batch and lot traceability records linking each bearing to its production run, supporting your ISO audit trail
• QR code verification pathway via the official NSK app, allowing your receiving team to authenticate before the bearing leaves the shelf
• Material certificate confirming bearing steel grade consistent with P5 precision requirements
• Country-of-origin documentation identifying Japan as the manufacturing origin for customs clearance and import compliance

Storage, Handling & Mounting

• Keep each 7200ATYNSUELP5 bearing in its original sealed packaging until the moment of mounting; the open design means any dust ingress before installation will score the raceway immediately
• Store in a climate-controlled environment below the polyamide cage’s thermal limit to prevent cage material property drift before the bearing ever sees service
• Handle with lint-free gloves to avoid transferring moisture to the bearing steel surfaces, which are unprotected by seals in this open configuration
• For universal-matched (U suffix) installations, follow the machine builder’s specified preload torque exactly — the clamping force determines the operating contact angle and internal clearance
• Use induction heating for inner ring fitting on shaft seats where interference fit is specified, keeping temperature uniform to avoid thermal distortion of the P5-precision raceway geometry

Request a Technical Quotation

Share your spindle speed, expected load spectrum, and operating temperature range so we can confirm whether the P5 precision class and polyamide cage suit your specific duty cycle. If you are replacing an existing bearing, provide the OEM equipment number or the full designation from the nameplate and we will verify the cross-reference including contact angle and matching type. We can also supply the complete documentation package for your import compliance review before you commit to a production batch.

Frequently Asked Questions

Q: How can I verify that the NSK 7200ATYNSUELP5 bearing I receive is genuine?
A: Each bearing from authorized channels carries a QR code that links to the official NSK authentication system. Your receiving team can scan it with the NSK Verify app to confirm batch origin and traceability. Counterfeit units sometimes clone the QR code itself, so we also provide the distributor chain documentation that ties the physical bearing to a verifiable authorized purchase.

Q: Can I cross-reference the 7200ATYNSUELP5 to an SKF or FAG equivalent?
A: Cross-referencing is possible but requires matching beyond the base number. The 30° contact angle (A), polyamide cage (TYNS), universal matching (U), optimized internal design (E), and P5 precision (LP5) must all align on the substitute bearing. A mismatch on any single suffix — particularly the contact angle or precision class — can cause thermal binding or runout problems in spindle applications.

Q: What is the difference between P5 and P4 precision for spindle use?
A: P4 provides tighter running accuracy than P5 under ISO 492, which matters for ultra-precision grinding spindles or high-frequency routing heads. For most turning and milling spindle positions, P5 delivers the runout control needed to hold workpiece tolerances. The selection depends on your specific machine’s speed, load, and surface finish requirements.

Q: Why does the polyamide cage matter compared to brass in this bearing?
A: Polyamide weighs less than brass, reducing cage inertia and friction heat generation at high rotational speeds. This makes it well-suited to the oil-air lubrication systems common in modern spindles. Brass cages tolerate higher temperatures and heavier loads but generate more drag, which can shift the thermal equilibrium of a precision spindle.

Genuine NSK 7200ATYNSUELP5 — Ready for Your Next Spindle Build
Send us your application parameters or OEM reference number, and we will return a technical match confirmation with full documentation scope and lead time.
