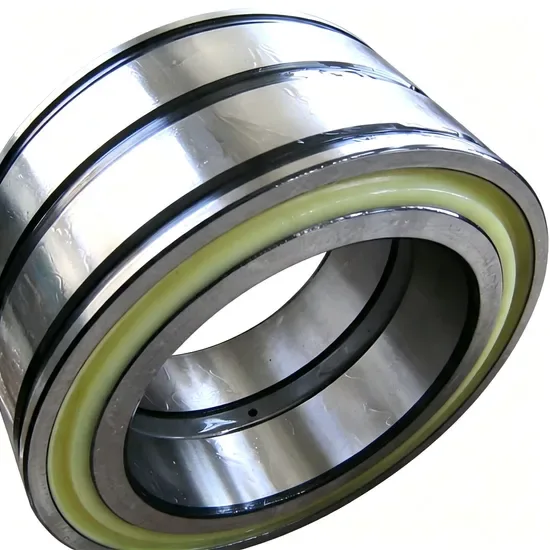

Description
Authorized Channel Sourcing — Every 23022SWRCDg2E4 spherical roller bearing we ship carries a verifiable batch trail back to its production lot, not just a generic packing slip.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF 23022SWRCDg2E4 |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 110 mm |
| Outside Diameter (D) | 170 mm |
| Width (B) | 45 mm |
| Seal or Shield Type | Sealed Type |
| Material | Bearing Steel |
| Feature | High Temperature, Heavy-Load |
| Customization | Available |
| Standards | ISO9001:2008, ISO9001:2000, RoHS, CE |
Note: The suffix cluster "SWRCDg2E4" does not map to standard SKF, NSK, or FAG catalog suffix conventions; individual suffix meanings require manufacturer-specific confirmation before finalizing order.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel and Metallurgy | Continuous caster roll segments, guide roller assemblies |
| Mining and Crushing | Vibrating screen shafts, crusher eccentric bearings |
| Industrial Machinery | Heavy-duty gearboxes, kiln trunnion supports |
| Material Handling | Conveyor head and tail pulley bearings |
What a Seal Failure Costs Inside a Continuous Caster
Contamination breaches kill bearings faster than overload ever will.
In continuous casting environments, scale dust, coolant mist, and roll coolant residue find every gap in a bearing’s defenses. When a maintenance crew substitutes a standard open-type spherical roller bearing where a sealed variant was specified, particulate ingress accelerates raceway wear and triggers cage fracture well before L10 calculations predict [NEED_CITE: contaminant ingress bearing failure modes per ISO 15243]. A significant share of premature removals in steel plants traces back not to overload, but to seal degradation or wrong seal selection at the procurement stage.
How This Spherical Roller Bearing Fits the Caster Line
The 23022SWRCDg2E4 spherical roller bearing for continuous caster service arrives with integrated sealing and high-temperature tolerance, reducing the dependency on external labyrinth seals that often leak during roll segment vibration. In roll guide positions where misalignment is routine, the self-aligning geometry absorbs shaft deflection without edge-loading the roller ends. Procurement teams working across multiple OEM caster designs can use the 110×170×45 mm envelope to cross-check interchange compatibility — but only if the cage type and clearance match the original equipment drawing, not just the base designation.
Operating Conditions That Define Selection
Caster roll bearings face combined radial and axial loads from strand weight and guide forces, with shock peaks at every roll bite [NEED_CITE: continuous caster bearing load spectrum]. Ambient temperatures near the mold and secondary cooling zones push grease degradation, making sealed and high-temperature-rated designs necessary rather than optional. Sealed-type units trade a marginal speed ceiling for reliable exclusion of scale and water spray. Where induction heating is used for mounting, the bore and outer ring thermal expansion must be monitored to avoid annealing the raceway surface or destroying the seal lips.
Inside the Specification Choices
The 110 mm bore paired with a 170 mm outside diameter and 45 mm width places this bearing in the medium-width 230 series, balancing radial capacity against axial envelope constraints common in caster roll chocks. Sealed-type construction eliminates relubrication scheduling but shifts the failure mode — once the seal is compromised, the bearing cannot be purged and must be replaced. Bearing steel material with ISO-certified quality management ensures consistent heat treatment, yet the actual hardness depth and retained austenite content vary by production facility, making batch-specific material certificates essential for critical positions. The high-temperature designation signals suitability for environments exceeding standard grease thermal limits, though the exact threshold depends on the specific lubricant fill confirmed at order time.
The Hidden Expense of Wrong Suffixes
A base-number match that ignores cage material or clearance creates a ticking clock.
Substituting a standard-CN-clearance unit where C3 was specified for thermal expansion in caster service leads to preload buildup as the inner ring expands, accelerating fatigue and risking catastrophic cage collapse mid-strand. Incorrect cage material — a stamped steel cage where a machined brass cage was designed for high-vibration duty — fractures under the cyclic shock loads of casting oscillation [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. The cost is never just the bearing; it is the unplanned strand stop, the lost heat, the scrapped slab, and the overtime weekend crew.
Why Maintenance Teams Source Through Us
Every 23022SWRCDg2E4 we quote comes with the authorization channel trace — not a trading company invoice, but documentation linking the unit back to the distributor network the manufacturer recognizes. Our cross-reference checks do not stop at the base number; we verify cage type, clearance class, and precision suffixes against your OEM drawing before confirming interchangeability. For buyers managing import compliance, we supply country-of-origin documentation and HS code details alongside the Certificate of Conformity. Technical selection guidance is built into the quotation process: share your load, speed, and temperature parameters, and we review whether this designation actually fits your duty point before you commit to a purchase order.
Documentation & Authenticity
- Supplier Certificate of Conformity issued against the specific production batch, traceable to the manufacturing lot number stamped on the bearing outer ring
- Material certificate confirming bearing steel grade and heat treatment parameters for the shipped 23022SWRCDg2E4 units
- Dimensional inspection report covering bore, OD, width, and radial runout measured before dispatch
- Country-of-origin documentation prepared for customs clearance in destination markets requiring preferential tariff treatment
- QR code verification pathway via brand official apps, allowing receiving inspectors to confirm authenticity on the dock
Storage, Handling & Mounting
- Keep each sealed 23022SWRCDg2E4 unit in its original moisture-barrier packaging until the moment of installation; premature opening in a humid steel plant stores room invites seal lip corrosion
- Store horizontally in a temperature-stable area — thermal cycling on a warehouse shelf can degrade the factory grease fill before the bearing ever reaches the caster
- For mounting on caster roll shafts, use induction heating with temperature monitoring to avoid exceeding the seal material limit during thermal expansion fitting
- Clean the shaft seat and chock bore with lint-free cloths before installation; residual scale dust trapped behind the sealed bearing cannot be purged later
- Match the bearing to the correct roll position using the lot number; do not mix bearings from different production batches on the same strand segment
Request a Technical Quotation
Send Us Your Caster Parameters
Share your roll position, operating temperature, and OEM equipment number. We will cross-check the 23022SWRCDg2E4 suffix configuration, confirm interchange compatibility, and return a documented quotation with lead time and minimum order quantity.
Frequently Asked Questions
Q: How do I verify that the 23022SWRCDg2E4 I receive is genuine and not a counterfeit?
A: Every shipment includes a Certificate of Conformity tied to the batch lot number. Receiving inspectors can cross-verify using the manufacturer’s official mobile app via QR code scan. We also supply dimensional and material inspection reports so you can audit independently.
Q: Can I substitute another brand’s spherical roller bearing in place of this designation?
A: Interchange is possible only when the replacement matches the cage material, clearance class, seal type, and precision — not just the base number. We run a full cross-reference check across our covered brands to confirm dimensional and functional equivalence before recommending a substitution.
Q: Why does the suffix matter so much for continuous caster applications?
A: Suffixes encode cage design, clearance, seal configuration, and thermal treatment. In caster service where temperatures and vibration are severe, an incorrect suffix — even with the right bore and OD — can trigger premature cage failure or thermal binding that shuts down the strand.
Q: What import documents do you provide with the bearing shipment?
A: Each order ships with a Certificate of Conformity, material certificate, country-of-origin statement, and HS code classification support. For buyers in markets with preferential trade agreements, we prepare the origin documentation required to claim tariff reductions.
Q: How do I know if this sealed bearing suits my caster roll position?
A: Send us the application parameters — load spectrum, speed range, ambient and operating temperature, and contamination level. We review whether sealed construction, cage type, and clearance match the duty point and flag any mismatch before quoting.
Secure Your 23022SWRCDg2E4 Supply
Contact our engineering desk with your OEM part number or caster roll drawing. We respond with a verified cross-reference, documentation preview, and confirmed availability window.
