Description
Authorized Channel Procurement — Every UCP214 unit we ship carries batch-level traceability documents linked back to the original manufacturer’s authorized distributor chain.
Technical Specifications
| Parameter | Value |
|---|---|

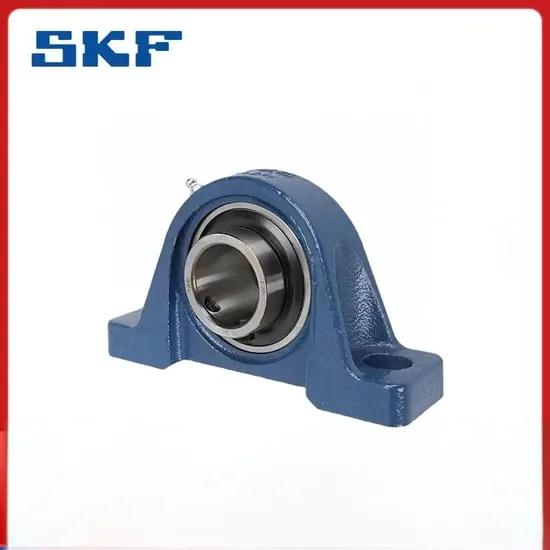

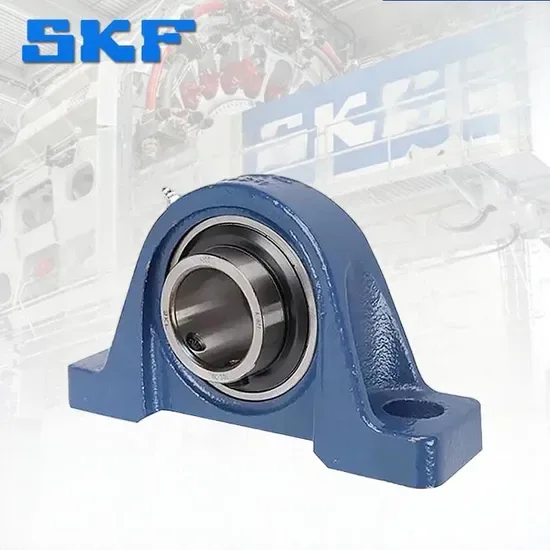

| Designation | UCP214 (Generic Pillow Block Unit) |
| Bearing Type | Pillow Block Unit (Insert Bearing with Housing) |
| Number of Rows | Single |
| Raceway | Spherical Raceway |
| Feature | Corrosion Resistant, High Temperature, High Speed |
| Bearing Block Model | F |

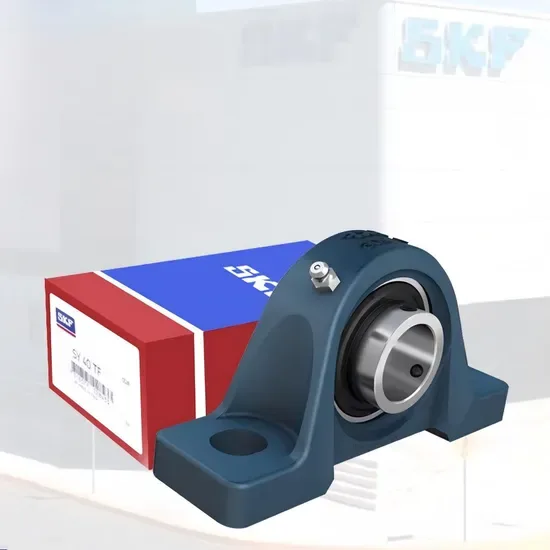

| Transport Package | Carton + Wooden Pallet / Export Standard Packing |
The "F" bearing block model suffix is unverified and should be confirmed against the manufacturer’s catalog before final order placement.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Material Handling | Belt conveyor drive pulleys, transfer chute idler shafts |
| Agricultural Machinery | Combine harvester rotor shafts, grain auger support bearings |
| Industrial Machinery | Dusty environment fan shafts, vibrating screen support mounts |
When Dust Kills a Pillow Block Faster Than Load
A UCP214 pillow block bearing supplier must look beyond the base number, because the housing seal — not the load rating — is often the first thing that fails on a grain conveyor or a fertilizer spreader.
At a grain processing facility I once visited, a replacement pillow block was sourced by matching only the bore and housing bolt pattern. The seal was a simple steel shield, fine for a clean gearbox but useless against airborne flour dust. Within weeks the dust penetrated past the shield, contaminated the grease, scored the inner ring raceway, and the unit seized mid-shift. The conveyor stopped, the downstream packaging line stopped, and the maintenance team spent an entire night p*ime cost far more than the bearing itself [NEED_CITE: unplanned downtime cost multipliers in bulk material handling per ISO 14224].
Matching the UCP214 to Conveyor and Agricultural Loads
Conveyor pulleys and grain augers share a common load profile: moderate radial load, low-to-medium speed, and heavy particulate contamination. The single-row spherical raceway inside the UCP214 insert bearing tolerates the angular misalignment that inevitably develops as conveyor frames deflect under belt tension. This self-aligning capability prevents edge-loading on the raceway — a frequent cause of spalling in rigid bearings mounted on long shafts. As a UCP214 pillow block bearing supplier, we review each inquiry against the actual mounting envelope and contamination level before confirming seal type and clearance class. A buyer once sent us a photo of a failed unit from a fertilizer blending line; the original seal was a non-contact metal shield, completely inadequate for the corrosive dust. Switching to a contact rubber lip seal with a flinger extended service life noticeably on that application.
Dust, Heat, and the Sealing Challenge
The operating environment for pillow block units in agriculture and material handling is defined more by contamination than by load magnitude. Airborne particulate — grain dust, cement powder, fertilizer salts — attacks grease first, turning it into an abrasive paste that wears the cage and raceway. High temperature variants address grease degradation when the unit sits near a dryer or kiln, while corrosion resistant features protect against washdown water in food-grade conveyor zones. Lubrication intervals shorten dramatically in these conditions; even a well-sealed unit may need re-greasing more often than the manufacturer’s standard interval suggests [NEED_CITE: relubrication interval reduction in contaminated environments per SKF bearing maintenance guidelines]. The seal itself becomes a trade-off: contact lip seals block dust effectively but generate friction heat at higher speeds, while non-contact shields run cooler but let fines through.
Reading the Specs That Matter
The spherical raceway in the UCP214 is the key to its misalignment tolerance — the outer ring raceway is ground to a sphere, allowing the inner ring and ball set to pivot slightly within the housing. This matters on conveyor shafts where frame deflection or uneven foundation settling can introduce a degree or two of angular error. The single-row ball complement keeps friction low compared to a double-row spherical roller design, which suits the moderate loads and higher speeds typical of belt conveyor pulleys. Corrosion resistant construction usually involves a surface treatment or stainless insert option, essential when the housing faces periodic washdown or outdoor weather exposure. High speed capability in this size range means the cage and grease can handle the peripheral velocity of a pulley running at typical conveyor belt speeds without excessive temperature rise.
The Hidden Cost of a Shortcut Purchase
A pillow block that fails to match the application’s seal requirement, clearance class, or material grade will not just wear faster — it can damage the shaft, distort the housing, and contaminate downstream equipment. ISO 15243 classifies bearing failures into categories like contamination, electrical erosion, and fatigue; in practice, contamination from inadequate sealing dominates field returns on pillow block units in agriculture and material handling [NEED_CITE: bearing failure mode classification per ISO 15243]. Counterfeit units with soft inner rings and cloned markings compound the risk: the raceway may appear dimensionally correct at inspection but wears prematurely under load, leading to unplanned downtime and potential warranty voidance on the equipment it supports.
What We Bring to the Table
We source UCP214 units through authorized distributor channels, meaning every shipment carries traceable documentation back to the manufacturer’s production lot. Our cross-reference database aligns housing dimensions, seal type, clearance class, and insert bearing specifications across the six major brands we cover — not just the base designation. When a buyer sends us an OEM equipment number, we verify the original seal configuration and clearance to prevent the kind of mismatch that causes field failures. Country-of-origin documentation is prepared for import compliance, and we provide QR code verification pathways so buyers can confirm authenticity through brand official apps before installation.
Documentation & Authenticity
- Supplier Certificate of Conformity listing the UCP214 batch number, housing model, and insert bearing designation
- Third-party dimensional inspection report covering housing bore tolerance, bolt hole spacing, and shaft diameter fit
- Country-of-origin certificate suitable for customs clearance and preferential tariff claims
- QR code verification pathway via the brand’s official app for on-site authenticity confirmation before mounting
- Material certificate confirming insert bearing steel grade and housing casting specification
- HS code guidance and import documentation support for pillow block unit shipments
Storage, Handling & Mounting
- Keep the UCP214 in its export standard carton and pallet wrapping until the day of installation; opening early in a humid warehouse risks corrosion on the spherical raceway surface
- Store cartons flat on the pallet in a dry area away from direct sunlight to protect the rubber seal lips from UV degradation
- Wear clean lint-free gloves when handling the insert bearing; fingerprint acids on the inner ring bore can initiate corrosion pits that propagate under load
- Mount the housing to the frame using a torque wrench on all four bolts; uneven clamping distorts the housing bore and binds the spherical outer ring, defeating the self-alignment feature
- For high temperature variants, use a high-temperature grease rated for the operating range; standard lithium-complex grease will thin and leak past the seal at elevated temperatures
- In heavily contaminated environments such as grain conveyors, verify that external sealing responsibility is addressed — the factory seal handles normal dust, but extreme particulate may require an additional labyrinth guard on the housing
Ready to Specify Your Next UCP214 Order
Send us your application parameters — shaft speed, operating temperature, contamination type, and load conditions — so we can confirm the correct seal configuration and clearance class for your equipment. If you have an OEM part number from the machine nameplate, share it and we will cross-reference against our database to verify interchangeability. We will return a quotation with lead time, available documentation, and batch traceability details for your procurement records.
Frequently Asked Questions
Q: How can I verify the authenticity of a UCP214 pillow block bearing after delivery?
A: Scan the QR code on the product packaging using the brand’s official mobile app. The app links the code to the manufacturer’s database and confirms the production lot. We also supply a Certificate of Conformity with batch traceability so you can cross-check independently.
Q: What should I check when cross-referencing a UCP214 across different brands?
A: Beyond the base number, verify the seal type, clearance class, housing bolt pattern, and shaft locking method. A mismatch in any of these can cause premature failure even if the bore size and load ratings appear equivalent.
Q: What documentation do I need for importing UCP214 pillow block units?
A: You will typically need a Certificate of Conformity, country-of-origin certificate, commercial invoice with HS code, and packing list. We prepare these documents as part of the shipment package and can advise on destination-country-specific requirements.
Q: How do I choose between corrosion resistant and standard UCP214 variants?
A: Corrosion resistant variants are recommended when the unit faces washdown water, outdoor exposure, or chemical-laden dust. Standard units suit dry indoor environments. Share your operating conditions and we will recommend the appropriate specification.
Q: What is the typical lead time for a bulk order of UCP214 units?
A: Lead time depends on current stock at our authorized distributor channels and the specific variant requested. Contact us with your quantity and required documentation so we can confirm availability and provide a realistic delivery schedule.
Confirm Your UCP214 Specification and Availability
Share your equipment details or OEM part number, and we will respond with a matched specification, cross-reference comparison, and documentation package for your review.
