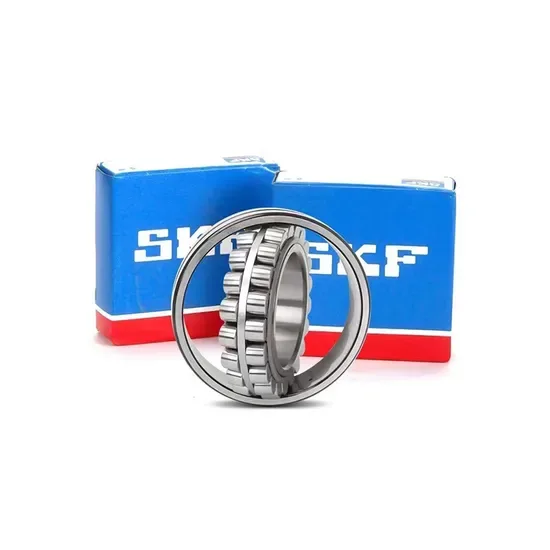

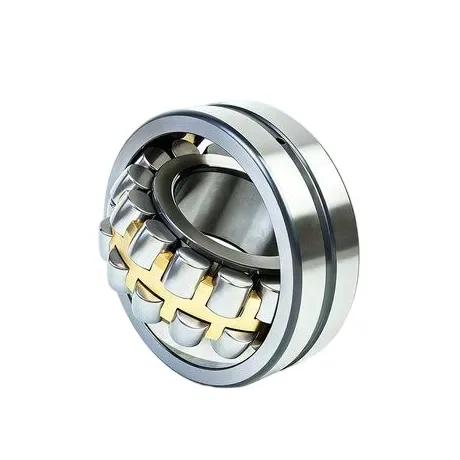

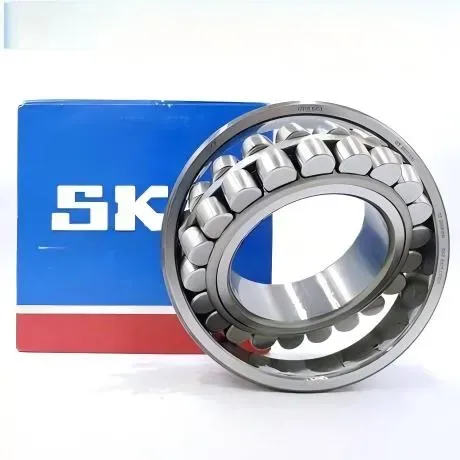

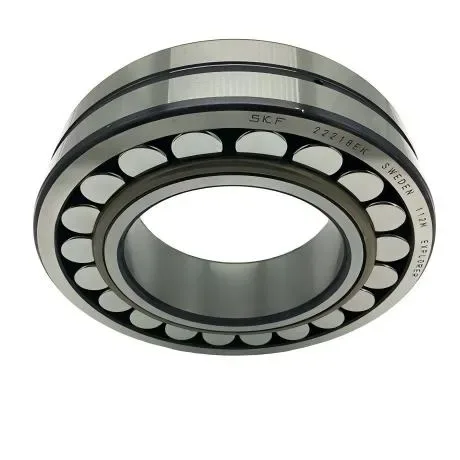

22314EK Spherical Roller Bearing Tapered Bore Genuine Supplier
Authorized Channel Traceability — Every 22314EK spherical roller bearing shipped from our network carries a batch-linked certificate of conformity traceable back to the manufacturer’s production facilities, so you can match the lot number on the box to the paperwork in your import file before it leaves the port.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 22314EK |
| Bearing Type | Spherical Roller Bearing |
| Bore Type | Tapered Bore (1:12) |
| Width (B) | 51 mm |
| Cage Material | Steel |
| Seal or Shield Type | Open |
| Number of Rows | Two |
| Arrangement | Self-Aligning |
| Origin | Sourced via authorized distributor channels |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Crushing | Crusher eccentric shaft, jaw crusher toggle plate pivot |
| Steel & Metallurgy | Continuous caster guide roll, roll table drive |
| Material Handling | Vibrating screen side plate exciter, conveyor drive pulley |
| Paper Manufacturing | Paper machine dryer cylinder bearing, press roll support |
What a Wrong Bore Taper Costs on a Crusher Eccentric
The EK suffix locks in a 1:12 tapered bore — fit the wrong adapter sleeve and the residual clearance collapses before the first shift ends.
I’ve seen a crusher in the Gulf go down because the procurement team cross-referenced the base number 22314 but ignored the K bore taper. The maintenance crew pressed a cylindrical bore replacement onto a tapered seat, and within days the inner ring crept on the shaft. [NEED_CITE: bearing inner ring creep failure modes per ISO 15243] Vibration levels climbed, the housing cracked at the foot, and the plant lost an entire production shift chasing a problem that started with a suffix mismatch. When you source a 22314EK spherical roller bearing supplier, the K is not optional decoration — it defines the mounting method, the drive-in distance, and the residual internal clearance once the lock nut is torqued.
How the Tapered Bore Fits Crusher and Screen Shafts
The 1:12 taper on the 22314EK means the inner ring seats against a matching tapered shaft journal or, more commonly in vibrating screens and crushers, onto an adapter sleeve like an H-series hydraulic or mechanical sleeve. This gives the maintenance crew a controlled interference fit without heating — you drive the bearing axially to a measured distance and check the remaining clearance with a feeler gauge. For a 22314EK spherical roller bearing supplier supporting mining and aggregate plants, getting this drive-in distance right is where the L10 life either holds or walks away.
Load Spectrum, Heat, and Dust at the Quarry Face
Crusher eccentric shafts see heavy combined radial and axial loads with shock peaks every time the jaw closes on hard rock. Vibrating screen exciters add high-frequency oscillation on top of steady radial load. Ambient temperatures at Middle East sites routinely exceed forty-five degrees, which compresses the internal clearance unless the bearing was specified with C3 or higher to begin with. Dust ingress is constant — the open design of the 22314EK relies on the housing labyrinth or external seal to keep fines out of the roller path. [NEED_CITE: effect of particulate contamination on spherical roller bearing fatigue life] Mounting method matters equally: an adapter sleeve allows field re-adjustment, but a poorly seated sleeve leaves the inner ring loose and fretting starts immediately.
Reading the EK Suffix and Its Impact on Field Life
The E in EK signals an optimized internal geometry — larger rollers, more of them, higher dynamic load capacity compared to the earlier non-E design of the same size envelope. The K confirms the tapered bore at 1:12. Together they tell you this bearing handles heavier radial loads in a tighter housing while demanding precise axial positioning during fit-up. The self-aligning outer ring raceway accommodates shaft deflection under shock load, which is exactly what a jaw crusher or vibrating screen produces. Pairing this geometry with the correct adapter sleeve and measuring residual clearance after lock-up is the difference between reaching design L10 life and replacing the bearing every maintenance window.
The Hidden Cost of Skipping Suffix Verification
A 22314EK installed with the wrong clearance class — say standard CN shipped where C3 was required for thermal expansion — will bind internally as the shaft heats up under load. ISO 281 dynamic life calculations assume correct clearance; once rollers slide instead of roll, fatigue spalling appears on the raceway within weeks. [NEED_CITE: ISO 281 bearing life calculation clearance dependency] Counterfeit spherical roller bearings compound this with soft inner rings and cloned markings that pass a visual check. The unplanned downtime cost, lost production tonnage, and emergency air-freight for a replacement dwarf the bearing price many times over.
Why Maintenance Engineers Route 22314EK Orders Through Our Network
We source through authorized distributor channels, which means the 22314EK spherical roller bearing supplier paperwork — certificate of conformity, material certificate, batch traceability — arrives with the box, not as an afterthought. Our cross-reference database matches not just the base number but clearance class, cage material, and bore type across the six major brands, so when a plant needs an interchange from SKF to FAG or NSK to TIMKEN, the suffix chain is verified before quotation. Authenticity checks include QR code verification pathways through official brand applications. For import buyers, country-of-origin documentation and HS code details are prepared alongside the commercial invoice, clearing customs without document discrepancies.
Documentation & Authenticity
- Certificate of Conformity linked to batch and lot number, matching the 22314EK bearing markings on the outer ring and box label
- Material certificate confirming bearing steel grade for inner and outer rings and rollers
- Dimensional inspection report covering bore taper angle, outer diameter, and width tolerances before dispatch
- Country-of-origin documentation prepared for import customs clearance at destination port
- QR code or batch verification pathway through the manufacturer’s official application for field authenticity checks
Storage, Handling & Mounting
- Keep the 22314EK in its original sealed packaging until the day of mounting; the tapered bore surface rusts faster than a cylindrical bore because the machined taper exposes fresh steel
- Select the matching adapter sleeve and lock nut before unpacking; dry-fitting the sleeve onto the shaft journal first avoids contamination from repeated bearing handling
- Measure axial drive-in distance with a dial indicator during hydraulic or mechanical sleeve mounting, and confirm residual internal clearance with feeler gauge through the roller set
- For vibrating screen and crusher installations, apply the recommended grease fill through the housing fill point after mounting — the open bearing design depends entirely on the housing seal and external lubrication schedule
- Store flat on a shelf with the outer ring supported; storing large spherical roller bearings on edge risks brinelling the roller-raceway contact under their own weight over time
Request a Quotation with Application Details
Share your operating parameters — shaft speed, radial and axial load estimates, ambient temperature range, and housing seal type — so we can confirm the correct clearance class and adapter sleeve pairing for your 22314EK application. If you are replacing an existing bearing, send us the OEM equipment number or the full marking string from the old bearing’s outer ring for cross-reference verification. We will return a quotation with confirmed lead time, batch availability, and a documentation package tailored to your import requirements.
Frequently Asked Questions
Q: What does the EK suffix mean on a 22314EK spherical roller bearing?
A: The E indicates optimized internal geometry with a larger, more densely packed roller complement for higher dynamic load rating than the earlier non-E design. The K specifies a tapered bore at 1:12 ratio, requiring an adapter sleeve or matching tapered shaft seat for mounting.
Q: How do I verify a 22314EK bearing is genuine?
A: Check the markings on the outer ring against the certificate of conformity, scan the QR code or enter the batch number through the manufacturer’s official verification application, and confirm the material certificate matches the bearing steel grade. [NEED_CITE: bearing counterfeit detection through official brand verification channels] Sourcing through authorized distributor channels with traceable documentation is the most reliable safeguard.
Q: Can I interchange a 22314EK across brands like SKF, FAG, NSK, or TIMKEN?
A: Base dimension interchange is straightforward since the 22314 series follows ISO 15 envelope dimensions. However, clearance class, cage design, and internal geometry differ by brand. A complete cross-reference must align the E-geometry equivalent, K bore taper, clearance suffix, and cage material — not just the base number.
Q: Which adapter sleeve fits a 22314EK bearing?
A: The matching adapter sleeve is sized to the shaft diameter and the 1:12 bore taper of the 22314EK. Confirm the sleeve series (typically H-series) against the shaft journal diameter and the required lock nut thread. Drive-in distance must be measured during installation to preserve the specified residual internal clearance.
Q: What clearance class should I specify for a vibrating screen application?
A: Vibrating screens typically require C3 or C4 clearance to accommodate thermal expansion and the interference fit from the adapter sleeve. The correct class depends on shaft speed, ambient temperature, and sleeve tightness. Share your operating conditions so we can recommend the right clearance before quotation.
Secure Your 22314EK with Full Traceability
Send us your application parameters or OEM equipment number, and we will return a matched quotation with confirmed documentation, clearance verification, and import-ready paperwork.
