Description
Authorized Channel Sourcing — Every SKF 7020 ACD/P4AQGA ships with batch-level traceability back to the manufacturer’s production facilities.
Technical Specifications
| Parameter | Value |
|---|---|

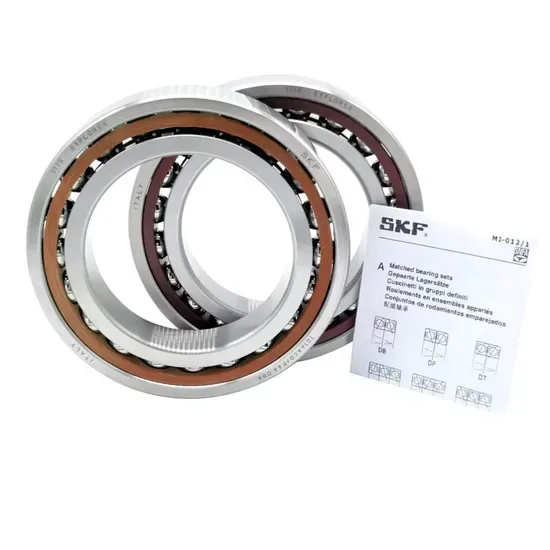

| Designation | SKF 7020 ACD/P4AQGA |
| Bearing Type | Angular Contact Ball Bearing |
| Number of Rows | Single Row |
| Bore Diameter (d) | 100 mm |
| Outside Diameter (D) | 150 mm |
| Contact Angle | 25° |
| Precision Class | P4 (ISO 492 Class 4) |
| Arrangement | Universal Matching, Light Preload |
| Origin | China |
The A and Q segments within the P4AQGA suffix block remain unverified against the current SKF super-precision catalog and should be confirmed before finalizing mounting configurations.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Machine Tool Manufacturing | Milling spindle front/rear support, grinding wheel headstock |
| Precision Equipment | Coordinate measuring machine rotary tables, optical inspection stages |
| Industrial Pumps | High-speed centrifugal pump shaft locating pairs |
| Robotics | Joint actuator housings requiring low runout under moment loads |
What Happens When a P4 Spindle Bearing Gets Swapped for P6 on the Shop Floor
The spindle bore scores within weeks, not years.
I pulled a wrecked milling spindle apart in Lagos after a fabricator replaced a failed bearing with whatever was on the shelf — same base number 7020, but standard P6 tolerance instead of P4. The inner ring ran hot within three weeks because the dimensional spread across the tolerance band let preload collapse under thermal expansion. Once preload is gone on a matched angular contact pair, the rolling elements skid rather than roll, and the raceway surface finishes degrade fast. That single substitution cost more in downtime and bore rework than a year’s worth of genuine SKF 7020 ACD/P4AQGA angular contact ball bearing purchases would have. [NEED_CITE: bearing tolerance class effect on preload stability per ISO 492]
Matching the SKF 7020 ACD/P4AQGA to High-Speed Spindle Duty
Machine tool spindles demand simultaneous radial stiffness and controlled axial compliance — exactly what a 25° contact angle delivers. The ACD internal geometry distributes contact stress across a wider ellipse than a standard AC design, which matters when the spindle accelerates through critical speeds and the rolling elements experience gyroscopic moments. Universal matching with light preload means this SKF 7020 ACD/P4AQGA angular contact ball bearing can be paired back-to-back or face-to-face without selective shimming, cutting setup time on the bench. We regularly cross-check OEM spindle drawings against the bearing’s mounting envelope to confirm the shaft and housing fits will not crush the preload out of the assembly during press-fit installation.
Thermal Growth, Speed Limits, and Lubrication Realities
At sustained speeds approaching the limiting threshold, friction heat at the contact ellipse raises the inner ring temperature faster than the outer ring can dissipate it through the housing. That differential expansion tightens internal clearance — or in a preloaded pair, it increases the contact force beyond what the lubricant film can separate. Oil-air or oil-jet systems manage this better than grease packing in continuous-duty spindles, but many repair shops default to grease because it is simpler. The consequence shows up as cage wear and elevated vibration signatures within a few hundred operating hours. Ambient temperature in equatorial workshops only accelerates the problem, since the starting thermal margin is already reduced. [NEED_CITE: thermal expansion impact on preloaded angular contact bearing pairs]
Decoding the Suffix Stack: ACD, P4, and QGA
The ACD designation specifies a 25° contact angle with an optimized internal geometry that balances axial load capacity against friction heat generation — a deliberate choice for spindles that see combined loading rather than pure thrust. P4 precision, governed by ISO 492 Class 4, constrains bore and outside diameter tolerances along with running accuracy to levels that maintain predictable preload across the matched set. The GA portion of the suffix indicates universal matching with light preload, meaning any two bearings from the same production lot can be mounted DB, DF, or DT without custom spacers. This flexibility matters in field repairs where the original arrangement may not be documented and the maintenance team needs to rebuild the spindle stack with available inventory. Light preload suits high-speed, moderate-load spindle positions; heavier preload classes would increase stiffness but at the cost of higher operating temperature and reduced speed capability.
The Hidden Expense of Ignoring Suffix Details
When a procurement team matches only the base number 7020 and overlooks the ACD/P4AQGA suffix block, they might receive a bearing with the wrong contact angle, incorrect clearance, or a precision grade that cannot hold preload. ISO 15243 catalogs the failure modes that follow — raceway smearing from skidding elements, cage fracture from vibration at loose preload, and bore fretting from fit degradation under thermal cycling. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] Each of these failures triggers unplanned downtime, and on a CNC milling center, that means scrapped workpieces, missed delivery windows, and emergency air freight for replacement bearings. Genuine SKF 7020 ACD/P4AQGA angular contact ball bearing units sourced through authorized channels arrive with the exact suffix configuration the spindle design requires, eliminating the guesswork that leads to these cascading costs.
Why Maintenance Engineers Source This Bearing Through Our Channel
Our procurement path runs through authorized distributor networks rather than open-market traders, so every unit carries batch-level documentation traceable to the manufacturer’s production facilities. We verify the full suffix string — not just the base number — before confirming stock, which prevents the P4/P6 substitution problem described above. When a customer provides an OEM spindle drawing or equipment nameplate number, we cross-reference the required contact angle, preload class, and precision grade against the SKF 7020 ACD/P4AQGA angular contact ball bearing designation to confirm alignment. Country-of-origin paperwork ships with every consignment, smoothing customs clearance in markets where import documentation scrutiny is tightening. For buyers in regions where counterfeit bearings with cloned markings circulate freely, we provide the QR verification pathway through the manufacturer’s official application so authenticity can be confirmed before the bearing leaves its packaging.
Documentation & Authenticity
- Certificate of Conformity tied to the specific production batch of each SKF 7020 ACD/P4AQGA unit shipped
- QR code scan pathway via the official SKF application to verify authenticity before breaking the seal
- Dimensional inspection report confirming P4-class bore and OD tolerances, available upon request before dispatch
- Country-of-origin certificate supporting import compliance and customs documentation in destination markets
- Material certificate tracing the bearing steel grade back to the originating mill heat number
Storage, Handling & Mounting
- Keep each SKF 7020 ACD/P4AQGA unit in its original sealed packaging until the moment of mounting — premature exposure risks contamination of the P4-finished raceway surfaces
- Store matched pairs flat and stacked in their marked orientation; disturbing the factory alignment marks compromises the universal light preload pairing
- Use clean, lint-free gloves when handling the 100 mm bore to prevent fingerprint corrosion on the precision-ground inner ring
- For shaft mounting, apply induction heating to the inner ring rather than press-fitting cold, which risks brinelling the raceway at P4 tolerance levels
- After mounting, verify that housing and shaft fits have not collapsed the light preload — measure starting torque and compare against the spindle OEM specification
Request a Technical Quotation
Share your spindle application parameters — operating speed, load spectrum, lubrication method, and ambient temperature range — so we can confirm the SKF 7020 ACD/P4AQGA angular contact ball bearing matches your duty cycle or recommend a more suitable variant. If you are replacing an existing bearing, send the OEM equipment nameplate number and we will cross-verify the suffix block against the original specification. Documentation packages and current batch availability can be provided within one business day of inquiry.
Frequently Asked Questions
Q: How can I verify that the SKF 7020 ACD/P4AQGA I received is genuine?
A: Each unit carries a traceable batch code and QR label that can be scanned through the official SKF verification application. We also supply a Certificate of Conformity linked to that specific production lot, and third-party dimensional inspection is available upon request before the bearing leaves our facility.
Q: What does the ACD suffix mean compared to a standard AC designation?
A: Both indicate a 25° contact angle, but ACD adds an optimized internal geometry that improves load distribution across the contact ellipse. This results in better performance under combined radial and axial loads typical of machine tool spindle applications.
Q: Can I substitute a P5 precision bearing in place of P4 for this spindle position?
A: P5 tolerance bands are wider than P4, which means preload in a matched pair becomes less predictable across the operating temperature range. On high-speed spindles, this variability often leads to preload loss or excessive contact pressure — both of which shorten bearing service life.
Q: What pairing arrangements are possible with the GA universal matching suffix?
A: Universal matching with light preload allows back-to-back (DB), face-to-face (DF), or tandem (DT) arrangements without custom shims. The correct arrangement depends on the direction and magnitude of the thrust load and the stiffness requirements of the spindle design.
Q: How do I cross-reference this bearing against NSK, FAG, or NTN equivalents?
A: A valid cross-reference must match not only the base dimensions but also the contact angle, precision class, and preload designation. We maintain a cross-brand interchange database that aligns these parameters across SKF, NSK, FAG, NTN, TIMKEN, and KOYO so substitutions can be evaluated with confidence.
