Description
Authorized Channel Sourcing — Every UCP315 unit we ship is backed by traceable procurement documentation, ensuring buyers receive genuine pillow block bearing assemblies with verifiable origin.
Technical Specifications
| Parameter | Value |
|---|---|

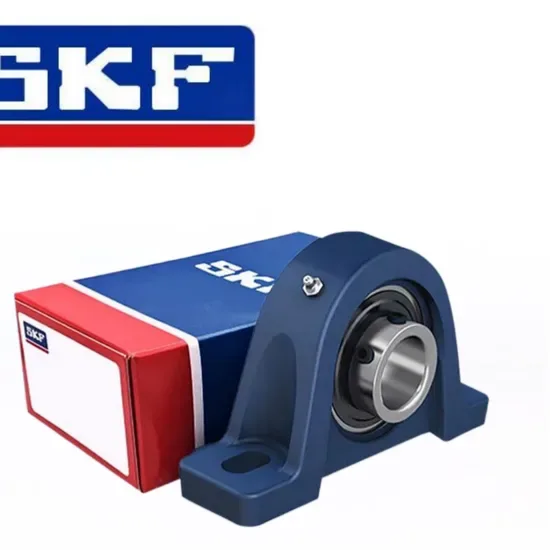

| Designation | SKF UCP315 Pillow Block Bearing Unit |
| Bearing Type | Pillow Block Unit (Insert Bearing with Housing) |
| Bore Diameter (d) | 75 mm |
| Housing Type | Square Base Pillow Block |
| Locking Mechanism | Set Screw |
| Number of Rows | Single |
| Raceway | Spherical |
| Seal Type | Contact Seal (standard for UCP series) |
| Feature | Corrosion Resistant, High Temperature, High Speed |
| Transport Package | Carton + Wooden Pallet / Export Standard Packing |
| Origin | To be confirmed at inquiry |
Note: Specific clearance class, cage material, and precision class are not designated in the base identifier and should be confirmed against the manufacturer catalog for critical applications.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and Crushing | Vibrating screen drive shafts, crusher conveyor pulleys |
| Material Handling | Belt conveyor head and tail pulleys, bucket elevator drives |
| Agricultural Machinery | Combine harvester rotor shafts, grain auger drives |
| Industrial Machinery | Industrial fan shafts, mixer drive assemblies |
What Happens When a Contact Seal Becomes a Steel Shield on a Conveyor
A three-month lifespan where three years was expected.
In Lagos, a cement plant ran a batch of UCP pillow blocks on their clinker conveyor. The base designation matched perfectly. The problem was the suffix: a proper contact seal had been swapped for a cheap steel shield by an unverified middleman. Dust breached the housing, the grease turned black within weeks, and the shaft scored badly enough to require a full rebuild. The plant lost a week of production. This is the hidden reality of sourcing housed units without verifying every suffix and seal type before shipment [NEED_CITE: bearing contamination failure modes per ISO 15243].
Spherical Raceway Alignment for Field Misalignment
The UCP315 pillow block bearing unit incorporates a spherical outer ring raceway that permits self-alignment between the shaft and housing. On conveyor systems where frame deflection is inevitable under load, this alignment capability prevents edge loading on the rolling elements. We have seen this feature absorb mounting inaccuracies on agricultural equipment where welded brackets rarely achieve perfect parallelism.
Load Spectrum and Environmental Demands in Heavy Industry
These units face predominantly radial loads with moderate shock from belt tension fluctuations and material impact. Operating temperatures in mining environments can drive thermal expansion of the shaft, making internal clearance a critical selection parameter. The contact seal standard to the UCP series must maintain lip pressure against the inner ring to exclude particulate contamination, a constant threat in crushing and material handling. Relubrication intervals depend heavily on the dust load and ambient temperature at the installation site [NEED_CITE: relubrication intervals for pillow block units in contaminated environments].
Inside the UCP315 Specification
The heavy-duty 3-series designation indicates a larger cross-section and higher load capacity compared to the standard 2-series pillow blocks. The 75 mm bore diameter accommodates shafts common in mid-range conveyor drives and industrial fans. Set screw locking provides secure shaft retention without requiring precision-ground shaft tolerances, a practical advantage in field maintenance where shaft condition may be degraded. The spherical raceway interface between the outer ring and housing bore allows for the self-aligning function, compensating for static misalignment during installation.
The Financial Weight of a Counterfeit Housing
Installing a pillow block with a soft inner ring from an unverified source may not show problems during commissioning. The failure arrives months later as fretting corrosion between the shaft and bore, leading to unplanned downtime during peak production. ISO 281 life calculations assume material quality that counterfeit components simply do not possess. A single catastrophic failure on a critical conveyor can void production targets for the entire quarter, far exceeding the savings from a cheaper purchase price [NEED_CITE: economic impact of unplanned downtime in bulk material handling].
Verification Protocols for Industrial Buyers
Our procurement process for the UCP315 pillow block bearing unit relies on authorized distributor channels with documented traceability. We provide cross-reference comparisons that align not just the base number but the seal type, clearance, and housing material. For buyers managing import documentation, we supply country-of-origin certification and HS code support. Every shipment can include dimensional inspection reports and material certificates upon request, providing the paper trail that maintenance engineers need for their reliability records.
Documentation & Authenticity
- Supplier Certificate of Conformity (COC) linking the UCP315 batch number to the original manufacturer’s production lot.
- Third-party dimensional inspection confirming housing bore sphericity and insert bearing running accuracy before dispatch.
- Material certificate verifying the housing casting grade and insert bearing steel composition.
- Country-of-origin documentation formatted for customs clearance in destination markets.
- Guidance on using the manufacturer’s official QR verification pathway to confirm authenticity upon receipt.
Storage, Handling & Mounting
- Keep the UCP315 in its sealed export packaging until the moment of installation to prevent moisture ingress into the pre-packed grease cavity.
- Handle the pillow block unit by the housing base, not the bearing outer ring, to avoid brinelling the raceway from impact loads.
- Verify shaft diameter and surface finish before mounting; the set screw locking mechanism requires a shaft within specified tolerances to achieve full clamping force.
- Align the housing base to the mounting surface before tightening bolts to prevent inducing misalignment that defeats the spherical raceway’s self-aligning capability.
- For high-dust environments, confirm the condition of the contact seal lips during installation and establish a relubrication schedule based on local contamination levels.
Request Technical Selection Support
Share your conveyor shaft speed, radial load estimates, and operating temperature range so we can confirm the appropriate clearance class for your UCP315 application. If you are replacing an existing unit, provide the OEM equipment number or the full designation from the nameplate for an exact cross-reference check. We can prepare a documentation package including origin certification and inspection reports aligned with your import requirements.
Frequently Asked Questions
Q: How can I verify the UCP315 I received is genuine and not a counterfeit?
A: Genuine units feature specific marking quality, material weight, and packaging details. We supply units from authorized channels with traceable documentation and can guide you through the manufacturer’s official QR code verification process upon delivery.
Q: What is the difference between UCP, UCF, and UCFL housing types?
A: UCP is a pillow block with a base parallel to the shaft, UCF is a square flange unit mounted perpendicular to the shaft, and UCFL is a two-bolt oval flange. The correct type depends on your mounting surface orientation and space constraints.
Q: Does the UCP315 come with C3 clearance, or is it standard CN?
A: The base identifier does not specify clearance class. C3 clearance is often required for applications with thermal expansion or tight shaft fits. Please confirm your operating conditions so we can source the correct internal clearance.
Q: What relubrication interval should I use for this unit in a dusty environment?
A: Relubrication frequency depends on the contamination level, operating temperature, and bearing size. We can provide general guidance based on your specific site conditions once we understand your application parameters.
