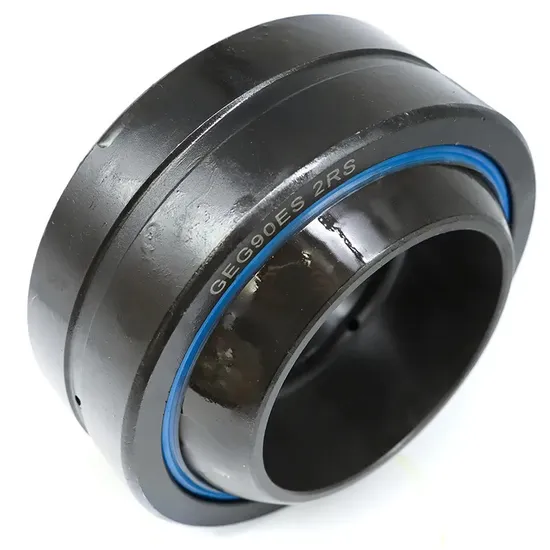

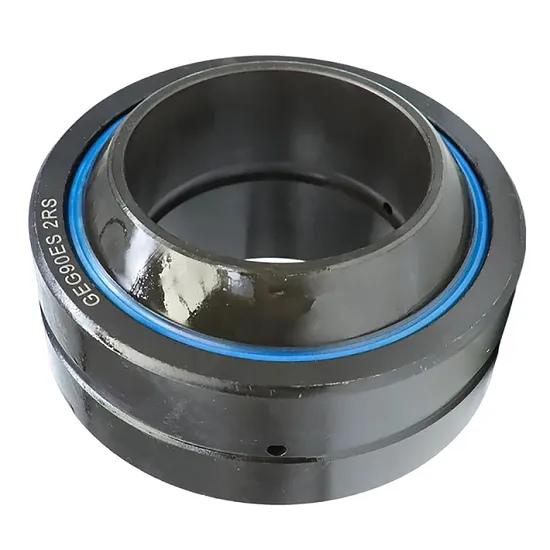

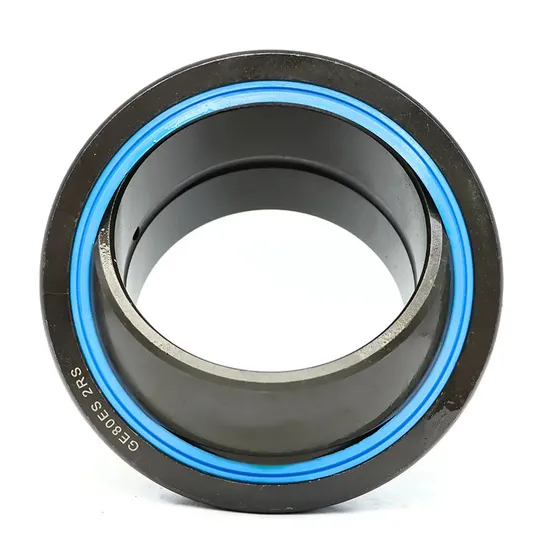

Geg90es-2RS Spherical Plain Bearing – Easy Install, Heavy-Duty Construction
Basic Specifications
| Inner Diameter | 90 mm |
| Outer Diameter | 150 mm |
| Thickness | 85 mm |
| Model No. | GEG90ES-2RS |
| Material | Bearing Steel |
| Lubrication | Self-lubricating |
Product Overview
This radial spherical plain bearing features high precision, long service life, and low noise. Designed for demanding applications including hydraulic cylinders, construction machinery, automotive shock absorbers, and automation equipment. Compact whole outer ring structure with steel-on-steel sliding contact and ISO/DIN standard compliance.
Basic Info.
