Description

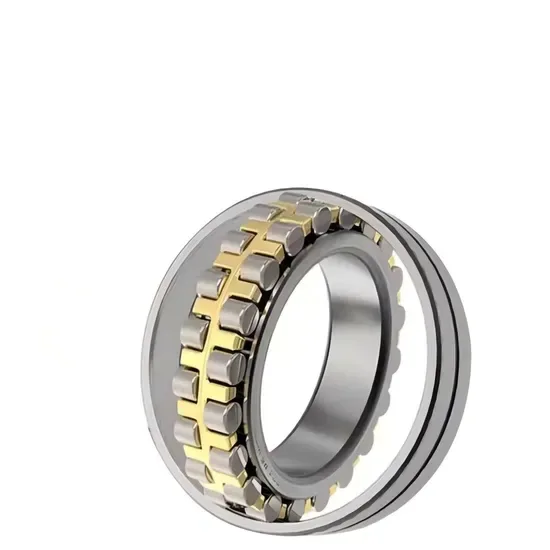

Authorized Channel Procurement — Traceable sourcing with batch-level documentation for 24132SWRCo2E4 spherical roller bearings supplied to steel mill and continuous caster applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 24132SWRCo2E4 |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 160 mm |
| Outside Diameter (D) | 270 mm |
| Width (B) | 109 mm |
| Material | Bearing Steel |
| Seal or Shield Type | Sealed Type |
| Feature | High Temperature, Sealed, Heavy-Load |
| Customization | Available |
| Standards | ISO9001:2008, ISO9001:2000, RoHS, CE |
The suffix string SWRCo2E4 does not correspond to standard nomenclature across SKF, FAG, or NSK catalogs; confirmation against the specific manufacturer’s documentation is advised before finalizing application parameters.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel and Metallurgy | Continuous caster segment rolls, strand guide equipment |
| Mining and Crushing | Vibrating screen eccentric shafts, jaw crusher pitman bearings |
| Industrial Machinery | Heavy-load rotary kiln support rollers, material handling drive shafts |
What Happens When a Sealed Spherical Roller Bearing Fails Inside a Caster Segment
A single seized bearing on a continuous caster can halt an entire casting line within minutes.
I once watched a procurement team replace a batch of spherical roller bearings on a caster segment with what looked like identical sealed units. The markings matched, the dimensions checked out, and the price was lower. Three months later, cages began cracking under thermal shock — the replacement bearings had stamped steel cages not rated for the radiant heat near the mold zone. The downtime cost dwarfed any savings. [NEED_CITE: premature bearing failure modes under thermal cycling in continuous casting equipment]
When sourcing a 24132SWRCo2E4 spherical roller bearing for continuous caster duty, the risk is never just a wrong part number. It is a clearance class that cannot accommodate thermal expansion, a cage material that softens above operating temperature, or a seal lip compound that degrades against caster coolant spray. Counterfeit bearings with soft inner rings and cloned laser markings circulate heavily in steel mill supply chains, and casual visual inspection will not catch them.
Matching the Caster Environment to Bearing Construction
A continuous caster segment roll endures combined radial and axial loading, slow oscillating rotation, and ambient temperatures that routinely compromise standard grease and seal materials. The 24132SWRCo2E4 spherical roller bearing addresses these conditions through its sealed construction and high-temperature design intent. The sealed configuration prevents scale dust and coolant ingress — two of the most common contamination vectors in caster zones below the mold. We routinely cross-reference OEM segment drawings against authorized distributor stock to confirm the bearing envelope, seal type, and internal clearance align before shipping.
Load Spectrum, Thermal Growth, and Contamination Pressure
The load profile at a caster roll end is predominantly radial with intermittent axial thrust during strand misalignment events. Speeds are low, often below 20 rpm, but the thermal gradient across the bearing cross-section can be severe. Heat from the solidifying strand drives outer ring expansion while the roll bore constrains the inner ring — a condition that demands sufficient internal clearance to prevent preload binding. Contamination is constant: iron oxide scale, water-based secondary cooling spray, and hydraulic fluid mist all attack seal interfaces. A sealed bearing here must rely on contact seal geometry and lip material compatibility rather than external labyrinth housings, since many caster segment designs offer minimal housing sealing provisions. [NEED_CITE: seal material degradation mechanisms in continuous caster secondary cooling zones]
Reading the Construction Behind the Part Number
The 160 mm bore and 270 mm outside diameter place this bearing in the heavy-section range of the 24132 series, built to carry the high static and dynamic radial loads typical of caster segment rolls. Bearing steel construction with through-hardening provides the raceway hardness necessary to resist brinelling under the shock loads encountered during strand breakout events. The sealed design eliminates the need for re-lubrication in positions where access is restricted once the segment is installed — a practical advantage during maintenance windows that are measured in hours, not days. The heavy-load rating reflects a roller complement and cage design optimized for maximum load-carrying cross-section rather than high-speed operation, which is appropriate for the oscillating, low-rpm duty of caster rolls.
The Downtime Arithmetic Nobody Puts on a Purchase Order
Correct specification paired with verified provenance delivers predictable L10 life and scheduled replacement intervals. A mismatched clearance class causes thermal binding that destroys cages within weeks. A counterfeit inner ring spalls under load, sending hardened steel fragments through the entire roller complement and into adjacent gearboxes. These failures follow patterns cataloged in ISO 15243, and they share a common root: the bearing that was installed was not the bearing the application required. [NEED_CITE: bearing failure classification per ISO 15243 related to material and clearance errors]
How We Reduce That Risk at the Inquiry Stage
Every 24132SWRCo2E4 spherical roller bearing we quote is traced back to an authorized distributor channel with lot-level documentation. We verify internal clearance, cage material, and seal compound against the application parameters you provide — not just the base designation. Our cross-reference database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO interchangeability with suffix-level matching so substitutions do not introduce hidden mismatches. Country-of-origin documentation accompanies each shipment for your import clearance process, and we support authenticity verification through brand official app QR pathways where applicable.
Documentation & Authenticity
- Supplier Certificate of Conformity tied to the specific batch and lot number of your 24132SWRCo2E4 shipment
- Material certificate confirming bearing steel grade and heat treatment compliance for high-temperature caster service
- Dimensional inspection report covering bore, OD, width, and radial internal clearance before dispatch
- Country-of-origin documentation and HS code support for steel mill bearing import clearance
- QR code verification pathway guidance for authenticity confirmation through brand official applications
- Batch and lot traceability records maintained for post-delivery warranty and failure investigation support
Storage, Handling & Mounting
- Retain factory sealed packaging until the caster segment maintenance window; early exposure invites scale dust infiltration past the seal lips
- Store horizontally in a dry environment to prevent brinelling marks on the 160 mm bore raceway from static vibration
- Use induction heating for inner ring mounting rather than open flame, which can unevenly expand the ring and damage the seal compound on this sealed-type bearing
- Verify shaft and housing fit tolerances against the specific clearance class before pressing — interference fits on the inner ring reduce internal clearance and must be accounted for in high-temperature caster positions
- Handle with clean gloves to prevent fingerprint corrosion on the outer ring surface before installation into the segment housing
Request a Specification Review Before You Commit
Share your caster segment drawing or OEM equipment number, and we will verify clearance, cage, and seal compatibility against the 24132SWRCo2E4 spherical roller bearing configuration you are considering. If you are evaluating a cross-brand interchange, we will provide a matched comparison covering all six major brands so you can substitute with confidence. Reach out to confirm batch availability, request the documentation package, or discuss lead time for your next scheduled outage.
Frequently Asked Questions
Q: How do I verify the authenticity of a 24132SWRCo2E4 spherical roller bearing before installation?
A: Authenticity verification starts with traceable documentation from an authorized distributor channel. We supply batch and lot records, and where brand official apps support QR scanning, we guide you through the verification process. Material certificates and dimensional inspection reports provide additional confirmation that physical properties match the specification.
Q: Can this bearing be cross-referenced to SKF, NSK, FAG, TIMKEN, NTN, or KOYO equivalents?
A: Cross-brand interchange is available across all six brands. However, matching goes beyond the base 24132 designation — internal clearance, cage material, and seal type must all align for the bearing to survive continuous caster conditions. We provide a complete interchange comparison covering these parameters.
Q: What does the suffix string SWRCo2E4 indicate?
A: This suffix combination does not align with standard published nomenclature from major bearing manufacturers. We recommend requesting the specific manufacturer’s catalog entry or technical datasheet to confirm what each suffix segment designates for cage type, clearance class, and seal configuration before committing to a bulk order.
Q: What re-lubrication schedule applies to sealed spherical roller bearings in caster applications?
A: Sealed spherical roller bearings are typically pre-greased at the factory and are not designed for field re-lubrication. In continuous caster environments with elevated ambient temperatures, grease service life is shortened; replacement intervals should be aligned with scheduled segment removal rather than attempting in-situ re-greasing.
Q: What documentation ships with the bearing for import purposes?
A: Each shipment includes a Certificate of Conformity, material certificate, dimensional inspection report, and country-of-origin documentation. HS code details are provided to support customs clearance in destination markets common to steel mill equipment procurement.
Confirm Your Application Parameters With Our Engineering Desk
Send your continuous caster segment drawing or OEM part number, and we will return a verified specification match with full documentation within one business day. Contact our team through your existing account channel or submit a new inquiry to begin.
