Description

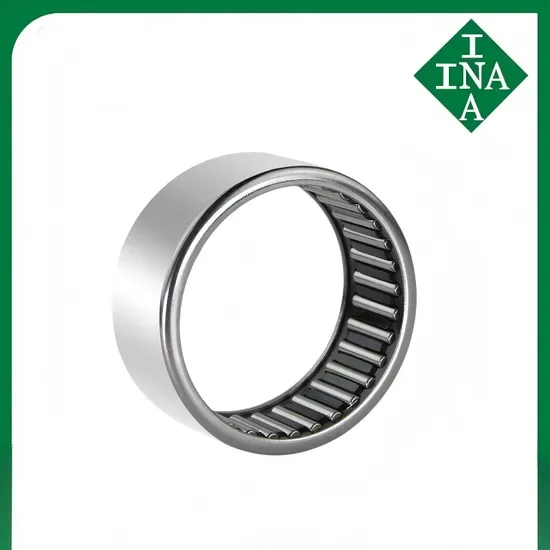

Authorized Channel Procurement — Every INA HK0509 drawn cup needle roller bearing we ship is backed by distributor-channel documentation with full batch traceability, so procurement teams can verify origin before it reaches the shop floor.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | INA HK0509 |
| Bearing Type | Drawn Cup Needle Roller Bearing, Open Type |
| Bore Diameter (Fw) | 5 mm |
| Outside Diameter (D) | 9 mm |
| Width (C) | 9 mm |
| Weight | 2 g |
| Style | Without Outer Ring, Without Inner Ring |
| Material | Bearing Steel |
| Load Direction | Radial |
| Seal or Shield Type | Open |
| Cage Material | Sheet Steel |
| Number of Rows | Single |
HK series suffixes follow INA/Schaeffler standard nomenclature. Specific batch availability and lead times are subject to confirmation at the time of inquiry.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Automotive and heavy vehicle repair | Transmission shift forks, steering column joints, pedal pivot bushings |
| Industrial machinery | Small gearboxes, textile guide rollers, packaging machine linkages |
| Material handling | Conveyor idler pivots, lift truck mast rollers, trolley wheel axles |
| General MRO | Electric motor accessory shafts, agricultural linkage joints, hand tool pivots |
What Happens When a Counterfeit Needle Roller Fails Inside a Gearbox
A soft-roller fake HK0509 will score the shaft journal before the cage shows any visible wear.
Counterfeit drawn cup bearings flood MRO supply chains every year, and the 5×9×9mm compact size is no exception. Casual visual inspection cannot distinguish a cloned INA marking from a genuine part, and soft inner rollers degrade silently under radial load until the shaft itself is damaged [NEED_CITE: counterfeit bearing detection methods in industrial supply chains]. When maintenance teams pull the housing apart, they find scored journals that require machining — turning a routine bearing swap into a multi-day repair event. This is why we source the INA HK0509 needle roller bearing 5x9x9mm exclusively through authorized distributor channels with documentation that traces back to the manufacturer’s production facilities.
Matching the HK0509 to Compact Radial Load Points
The INA HK0509 needle roller bearing 5x9x9mm fits into applications where the shaft serves as the inner raceway and the housing bore acts as the outer raceway. This eliminates the need for separate inner and outer rings, keeping the radial envelope at just 9 mm while still supporting meaningful radial loads through the full-complement needle roller arrangement. We typically see this bearing specified in shift mechanisms, small gear reducers, and pivot points where space constraints rule out deeper groove or angular contact alternatives.
When a purchasing engineer sends us an OEM equipment number, we cross-check not only the base designation but also whether the application requires an open or sealed variant. I once saw a textile mill replace open-type needle rollers with sealed units without adjusting the housing ventilation — the trapped heat degraded the grease within weeks. Those field lessons drive how we review every inquiry against actual operating conditions before quoting.
Load Spectrum, Speed Envelope, and Installation Realities
Radial loads on drawn cup needle roller bearings like the HK0509 are carried across a large number of small-diameter rollers, distributing stress evenly but demanding a hardened shaft surface. The mating shaft should reach at least HRC58-62 hardness with a ground finish, otherwise the rollers will embed into a softer journal and generate vibration [NEED_CITE: shaft hardness requirements for drawn cup needle roller bearings per INA technical guidelines].
Operating speed is governed by the cage design and lubrication method. Open-type bearings rely on external lubrication — typically oil mist or periodic grease application — which means the maintenance schedule must account for re-lubrication intervals. Temperature excursions above typical ambient ranges accelerate grease breakdown, so applications near heat sources such as exhaust manifolds or furnace conveyors require high-temperature grease formulations or oil circulation. Installation is straightforward with a mandrel press, but misalignment during press-fitting can deform the thin drawn cup and cause immediate roller skew.
Reading Between the Lines of the HK Suffix
The HK designation identifies this as an open-type drawn cup needle roller bearing without an inner ring. The absence of an inner ring means the shaft itself functions as the rolling surface, which demands precise control over shaft roundness and surface finish. The 0509 dimension series tells us the bearing is built around a 5 mm bore (shaft diameter) with a 9 mm outside diameter and 9 mm width — a compact envelope suited to miniature mechanisms.
Bearing steel construction provides the necessary core hardness and fatigue resistance for radial needle roller service. The sheet steel cage spaces the needles evenly and retains them during handling, which matters because loose needles in a full-complement design can be easily displaced if the bearing is dropped or mishandled before installation. Open-type construction also means there are no integral seals to generate friction — a deliberate trade-off that favors low torque at the cost of requiring external contamination protection from the housing design.
The Hidden Toll of an Unverified Source
Correct bearing selection only protects you if the physical product matches the designation on the label. A counterfeit HK0509 with undersized rollers or a low-hardness cup will show acceptable radial play on a bench check but will shed material within the first few hundred operating hours [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Premature cage fracture on a drawn cup bearing often cascades into shaft scoring, housing bore damage, and unplanned downtime that far exceeds the cost of the bearing itself.
Procurement engineers who bypass authorized channels to save a few cents per unit absorb this risk invisibly. ISO 281 bearing life calculations assume material quality consistent with standard bearing steel specifications — an assumption that counterfeit products violate entirely. Sourcing through documented channels with traceable batch records is the only practical defense.
How Our Sourcing Process Protects Your Maintenance Schedule
We purchase INA bearings, including the HK0509 series, through authorized distributor channels rather than open-market brokers. Each shipment arrives with a Certificate of Conformity tied to a specific batch and lot number, giving your quality team a paper trail that satisfies import audits and internal traceability requirements.
Our cross-reference database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO, so if a competing brand is specified on a bill of materials we can identify the correct INA equivalent — matching not just the base number but clearance class, cage type, and precision suffix. I recall quoting needle rollers to a Dubai textile mill where the buyer had matched the base number but overlooked the open versus closed suffix; cages rattled loose within weeks and spindles scored. That experience reshaped how we verify every suffix string before a quotation leaves our desk. For buyers importing into regions with strict origin documentation requirements, we provide country-of-origin paperwork and HS code support alongside the standard shipping documents.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the specific batch and lot number for each shipment of INA HK0509 bearings
- Third-party dimensional inspection report confirming Fw, D, and C tolerances against INA published specifications
- QR code verification pathway through the official Schaeffler/INA app so receiving inspectors can authenticate on the dock
- Country-of-origin documentation prepared for import compliance and customs clearance in destination markets
- Material certificate confirming bearing steel composition for quality management system records
Storage, Handling & Mounting
- Keep the HK0509 in its original sealed packaging until the moment of installation; the drawn cup is thin-walled and exposure to humid shop air promotes surface corrosion that compromises shaft mating
- Handle with clean, lint-free gloves — fingerprints on the 5 mm bore surface introduce acidic moisture that initiates pitting under radial load
- Press-fit using a correctly sized mandrel that contacts the outer drawn cup evenly; off-axis force will ovalize the 9 mm cup and bind the needle rollers
- Ensure the shaft journal is ground to at least HRC58-62 hardness and inspected for roundness before mounting, since the HK0509 has no inner ring to compensate for a soft or out-of-round shaft
- Apply the specified grease or oil immediately after press-fitting; the open-type design means no factory fill is present to protect the rollers during initial run-in
- Store remaining inventory flat in a climate-controlled area below typical condensation thresholds to prevent moisture migration into the needle roller complement
Request a Quotation with Full Traceability
Share your application parameters — shaft speed, radial load magnitude, operating temperature range, and lubrication method — so our technical team can confirm the INA HK0509 needle roller bearing 5x9x9mm is the correct selection for your specific duty point. If you are replacing an existing bearing by OEM equipment number, send us the full nameplate data and we will run a cross-reference check that covers clearance, cage, and suffix alignment. We can also confirm current batch availability, lead time, and the documentation package that will accompany your order before you commit.
Frequently Asked Questions
Q: How can I verify that the INA HK0509 needle roller bearings I received are genuine?
A: Each bearing sourced through our authorized distributor channels carries batch and lot traceability. Your receiving team can scan the QR code on the packaging using the official Schaeffler/INA app to confirm authenticity. We also supply a Certificate of Conformity tied to the specific production batch, and third-party dimensional inspection is available upon request.
Q: Why does the open-type design matter for my application?
A: The HK suffix indicates an open drawn cup without integral seals. This design minimizes friction torque but places the responsibility for contamination protection on the housing design. If your application operates in a dusty or washdown environment, you will need external seals or a sealed variant — and we can advise on the correct alternative during the technical selection review.
Q: Can I substitute a different brand for the INA HK0509?
A: Cross-brand interchange is possible, but matching the base number alone is not sufficient. The cage material, needle roller profile, and dimensional tolerances must all align. We maintain a cross-reference database covering SKF, NSK, FAG, TIMKEN, NTN, and KOYO and will verify full compatibility — not just the designation — before recommending a substitution.
Q: What shaft preparation is required since this bearing has no inner ring?
A: The shaft journal must serve as the inner raceway, so it needs to be hardened to at least HRC58-62 and ground to a fine surface finish. Soft or rough shafts will cause the needle rollers to embed, leading to vibration and premature wear. We can review your shaft specifications during the inquiry stage to flag potential issues before the order ships.
Q: What documentation comes with a bulk order?
A: Bulk shipments include a Certificate of Conformity, batch and lot traceability records, material certificates, dimensional inspection data, and country-of-origin documentation. If your import process requires specific HS code declarations or additional paperwork, we prepare those documents as part of the pre-shipment package.
Source the Genuine INA HK0509 with Confidence
Send your inquiry with application parameters or OEM equipment numbers, and we will return a technical review, cross-reference confirmation, and documented quotation within the same business cycle.
