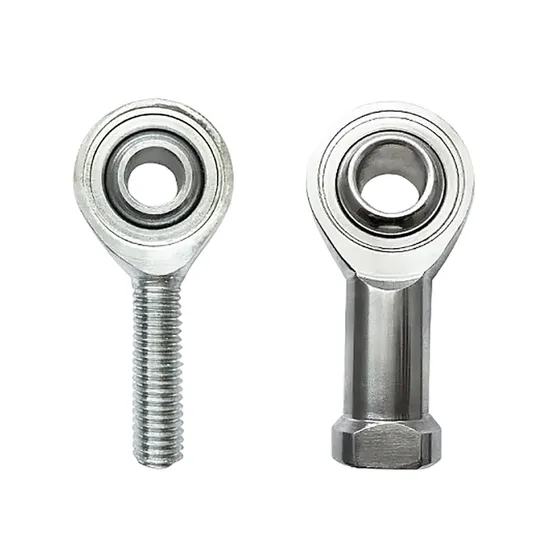

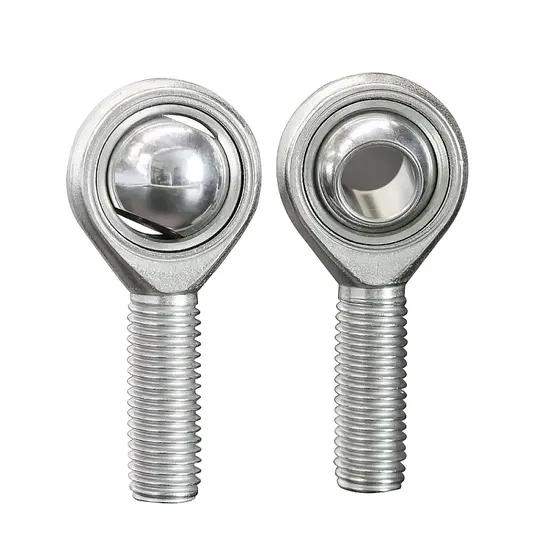

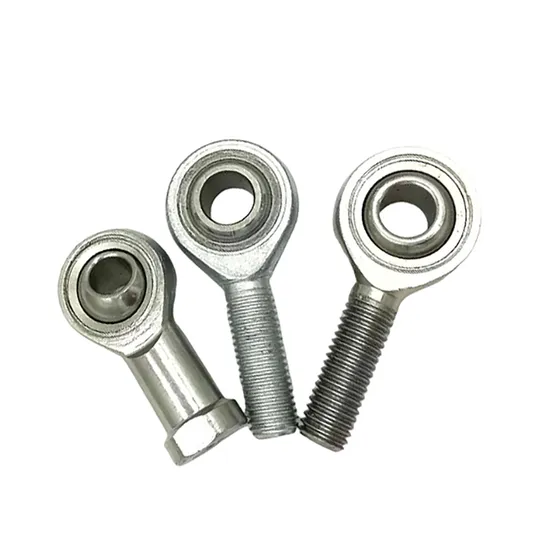

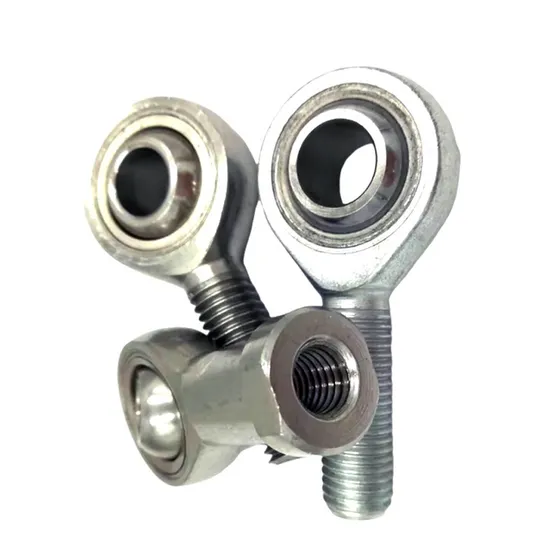

Phsb6-Phsb12 Rod End Bearing – High-Precision, Heavy-Duty
Specifications
| Inner Diameter | Outer Diameter | Thickness |
|---|---|---|
| 9.53 mm | 25.4 mm | 10.31 mm |
Introduction
Radial spherical plain rod end bearing made of bearing steel, non self-lubricating, with whole outer ring structure. Suitable for hydraulic cylinders, construction machinery, automotive shock absorbers and automation equipment. Available in models PHSB6–PHSB12, precision grades P0–P2, and rich stock delivery.
Basic Info.
