Description
Authorized Channel Sourcing — Every 22344CC/W33 unit ships with batch-traceable documentation confirming purchase through verified distributor networks, not secondary markets.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 22344CC/W33 (Generic) |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 220mm |
| Outside Diameter (D) | 460mm |
| Width (B) | 145mm |
| Dynamic Load Rating (C) | Verify against manufacturer catalog |
| Static Load Rating (C₀) | Verify against manufacturer catalog |
| Cage Material | Machined Brass (CC) |
| Seal or Shield Type | Open |
| Clearance Class | Verify against specific order |
| Precision Class | P0 / P6 / P5 |
| Contact Angle | N/A (Radial Spherical) |
| Bore Type | Cylindrical |
| Arrangement | Single Row |
| Number of Rows | Two |
| Origin | Verify against COO documentation |
| Lubrication Feature | Outer ring annular groove with three lubrication holes (W33) |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and crushing | Crusher eccentric shaft, vibrating screen main shaft |
| Steel and metallurgy | Continuous caster guide roll, hot strip mill work roll |
| Industrial machinery | Paper machine dryer roll, large gear reducer |
When a Suffix Substitution Cracks the Cage

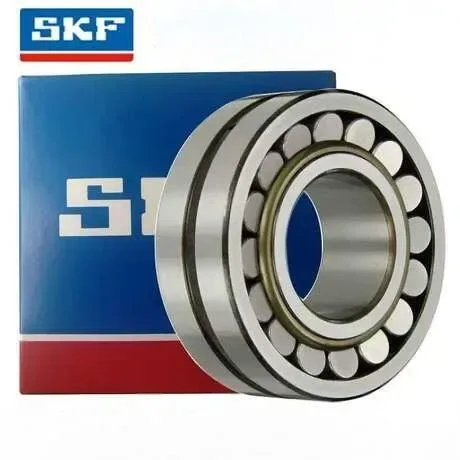

A 22344CC/W33 spherical roller bearing 220x460x145mm is not just a bore, OD, and width. The CC and W33 suffixes define how it survives under load. When procurement teams swap a specified CC brass cage for a stamped steel variant to save cost, the result is often cage fracture within the first few hundred operating hours.
The CC suffix means a machined brass cage, inner ring centered. It is not interchangeable with stamped steel or window-type cages in high-vibration applications.
I saw this firsthand on a vibrating screen in a quarry operation. The maintenance crew replaced a failed bearing with what the supplier called an "equivalent." The bore and OD matched, but the cage was a pressed steel type. Under the constant high-frequency vibration, the cage pockets wore unevenly. Within weeks, a cage fragment lodged between a roller and the raceway, scoring the inner ring and forcing a full shaft teardown. That kind of failure doesn’t just cost the bearing price—it costs days of lost production, crane rental, and emergency logistics. [NEED_CITE: rolling bearing cage failure modes per ISO 15243]
How This Bearing Handles the Loads a Crusher Demands
The 22344CC/W33 is built for the kind of combined loading that destroys lesser designs. The spherical raceway in the outer ring allows angular misalignment of several degrees, absorbing housing deflection and shaft bending that would edge-load a cylindrical or tapered roller bearing. The two rows of barrel-shaped rollers distribute radial load across a wide contact area, while the inner ring-centered brass cage keeps rollers aligned even when the shaft whips under impact.
In my years sourcing for heavy-duty clients, the machines that eat bearings fastest are those where shock loads meet misalignment—crushers, screens, hammer mills. This bearing type handles that combination because the self-aligning geometry compensates for frame flex and uneven foundation settling, conditions no amount of precision machining can fully eliminate in the field.
What the Operating Environment Demands from Every Component
These bearings typically operate under heavy radial load with moderate axial thrust, often in contaminated, high-temperature environments. The ambient dust in a crushing plant or the scale-laden air near a steel mill work roll penetrates any seal that isn’t maintained. Open-type designs like this one rely on the housing seal and regular re-lubrication rather than integral rubber lips, which would degrade under sustained heat.
Thermal expansion is a constant concern. When shaft and housing temperatures diverge, the bearing clearance must accommodate differential growth without running tight. Re-lubrication intervals shorten dramatically in dusty or wet conditions, and the W33 feature—an annular groove with three holes drilled through the outer ring—lets fresh grease reach the roller paths without disassembling the housing. This matters when a single missed greasing cycle can push roller temperatures past the grease thermal limit.
Decoding the CC Cage and W33 Groove
The CC suffix indicates a machined brass cage, centered on the inner ring. Brass offers superior damping under vibration compared to stamped steel, and its thermal conductivity helps carry heat away from the roller ends. The inner ring centering design means the cage rides on the inner ring land, which is advantageous when the inner ring is the rotating member—it stabilizes cage motion and reduces skew-induced wear.
The W33 feature is straightforward but often overlooked: an annular groove machined into the outer ring circumference, intersected by three radial lubrication holes. This allows grease or oil injected through the housing to enter the bearing interior directly, flushing contaminants and replenishing the lubricant film at the roller-raceway contact. For bearings operating in high-contamination zones, this external re-lubrication path is essential to achieving anything close to rated L10 life.
Precision options (P0, P6, P5) let buyers match the bearing to the application’s running accuracy requirements. P0 covers most industrial rotating equipment where vibration velocity is acceptable at standard levels. P6 or P5 may be specified for equipment where tighter dimensional tolerances reduce startup noise or improve shaft position repeatability.
The Hidden Cost of Cutting Corners on Sourcing
When a counterfeit or mis-specified 22344CC/W33 spherical roller bearing 220x460x145mm enters the supply chain, the damage rarely stops at early replacement. ISO 281 life calculations assume genuine material, correct internal geometry, and proper clearance. A bearing with a soft inner ring—common in counterfeits—will brinell under static load, creating vibration signatures that propagate through the entire drivetrain.
The real cost appears as unplanned downtime during peak production, emergency freight for replacement parts, and labor for teardown and reassembly. In severe cases, a cage collapse sends metal fragments through the gear train or destroys adjacent seals and shaft journals. These are not warranty-covered events; they are total losses compounded by reputational damage to the equipment owner. [NEED_CITE: economic impact of premature bearing failure in heavy industry]
How We Reduce Risk at Every Procurement Step
We source 22344CC/W33 units through authorized distributor channels, meaning every batch carries documentation traceable to the manufacturer’s production lot. This is not a promise—it’s a paper trail: certificate of conformity, material test reports, and dimensional inspection records that accompany each shipment.
Our cross-reference database covers SKF, NSK, FAG, TIMKEN, NTN, and KOYO equivalents, but we don’t stop at the base number. We verify that the cage material, clearance class, and precision grade align across the substitution. A 22344CA/W33 from SKF or a 22344RHE4 from NSK may appear interchangeable, but the internal design differences—cage guidance method, roller profile, and internal clearance—matter in critical applications.
For import buyers, we provide country-of-origin documentation and HS code classification to clear customs without delays. And when a maintenance engineer needs to verify authenticity, we guide them through the manufacturer’s official app QR verification process.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the 22344CC/W33 batch number, linking each unit to its production date and factory lot.
- Material certificate confirming brass cage composition for the CC-designated component, critical for buyers in jurisdictions requiring metallurgical traceability.
- Third-party dimensional inspection report verifying bore (220mm), OD (460mm), and width (145mm) against ISO 15 tolerances before dispatch.
- Country-of-origin statement suitable for import licensing and preferential tariff claims, particularly for buyers in regions with strict sourcing rules.
- QR code verification pathway via the manufacturer’s official app, allowing end users to confirm authenticity at the point of installation.
Storage, Handling & Mounting
- Keep the 22344CC/W33 in its original sealed wrapping until the moment of mounting; the machined brass cage surfaces oxidize slowly but contaminants introduced during storage accelerate wear at startup.
- Store horizontally on a flat shelf in a dry environment—this bearing’s 145mm width and substantial mass create point loads if stored vertically on edge, potentially brinelling the raceway under its own weight over time.
- Before mounting, verify the W33 lubrication groove and holes on the outer ring are aligned with the housing grease inlet port; misalignment blocks re-lubrication and starves the bearing within hours.
- Use induction heating for the inner ring fit on the 220mm shaft bore—open flame or oil bath methods introduce uneven thermal gradients that can distort the inner ring seating.
- After mounting, fill the housing cavity with the specified grease grade and purge through the W33 holes until fresh grease appears, confirming the lubrication path is clear and contamination-free.
Ready to Verify Fit and Documentation
Send us the application parameters—load spectrum, operating speed, ambient and shaft temperature, and housing seal type—so we can cross-check whether the 22344CC/W33 spherical roller bearing 220x460x145mm matches your requirements or if a different clearance or precision class is warranted. If you have an OEM equipment number or an existing bearing part number from another brand, share it and we will run a full cross-reference including cage, clearance, and precision alignment.
Need the documentation package before placing an order? Request the sample COC, material certificate, and country-of-origin statement so your compliance team can review import requirements in advance.
Frequently Asked Questions
Q: How does the CC cage differ from a CA cage in a 22344 bearing?
A: The CC suffix denotes a machined brass cage centered on the inner ring, while CA typically indicates a machined brass cage centered on the outer ring with different roller guidance geometry. The choice affects cage stability under high vibration and the bearing’s ability to accommodate misalignment. Always verify the internal design with the manufacturer’s technical data before substituting one for the other.
Q: What does the W33 suffix mean for maintenance intervals?
A: W33 means the outer ring has an annular groove and three lubrication holes. This allows re-lubrication without disassembly, but it does not extend the base maintenance interval by itself. The interval depends on operating temperature, contamination level, and grease type. The W33 feature ensures that when re-lubrication is performed, fresh grease reaches the roller paths effectively.
Q: Can I substitute a 22344CC/W33 with a 22344-B-MB-W33 from FAG?
A: These designations often refer to similar internal designs, but the exact cage guidance method, roller profile, and internal clearance may differ. We verify cross-references by matching cage material (brass), clearance class, and precision grade—not just the base number—before confirming interchangeability for your specific application.
Q: Which precision class should I specify for a vibrating screen application?
A: P0 is standard and sufficient for most vibrating screen installations where shaft speed and vibration amplitude are within normal design limits. P6 or P5 may be specified if the screen operates at higher frequencies or if reduced startup noise is a procurement requirement. Share the screen’s operating speed and vibration amplitude for a precise recommendation.
Q: How do I verify the bearing is genuine when it arrives?
A: Each unit we supply carries a batch number linked to a Certificate of Conformity. You can also scan the QR code on the packaging using the manufacturer’s official app to confirm authenticity. If the packaging, labeling, or QR response raises any concern, contact us before mounting—we will guide you through additional verification steps.
Secure Your 22344CC/W33 with Full Traceability
Share your application details or OEM equipment number today, and we will respond with a technical cross-reference and documentation preview before you commit to an order.
