Authorized Channels with Verified Traceability — Every UCPX13 pillow block unit ships with distributor-level batch documentation and origin records for confident cross-border procurement.

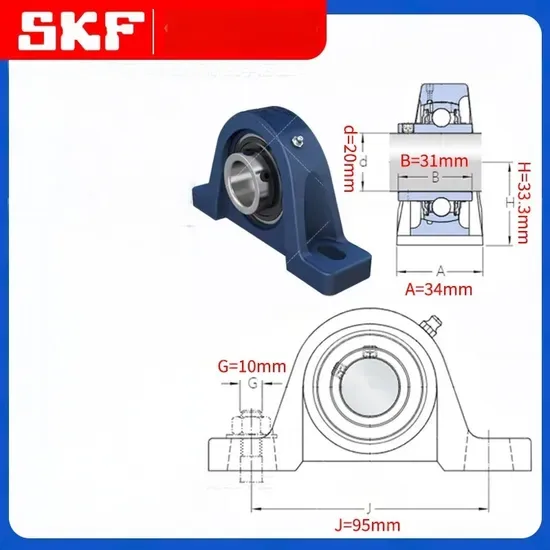

Technical Specifications

Application Suitability

When Standard Housings Fail Under Construction Loads

The base number alone does not guarantee survival in a vibrating, high-dust environment.

Many procurement engineers assume that any pillow block matching the "UCP" designation will fit and function. In reality, standard-duty housings often feature thin walls and basic labyrinth seals that cannot withstand the shock loads and particulate contamination typical of construction sites. When a "look-alike" unit fails because the housing casting was too brittle or the seal let in silica dust, the cost of the replacement bearing is negligible compared to the cost of the unplanned downtime [NEED_CITE: cost of unplanned downtime vs bearing replacement cost]. Verifying the housing wall thickness and the specific sealing arrangement is a mandatory step, not an optional check.

Matching the Unit to the Construction Cycle

A UCPX13 pillow block bearing unit heavy duty insert bearing is frequently called upon to manage misalignment on long conveyor shafts where structural deflection is unavoidable. The spherical raceway design allows the inner ring to self-align relative to the housing, preventing edge loading on the raceway. I recently saw a site in West Africa where a competitor's non-spherical unit caused a shaft to shear due to the rigid misalignment stress. We focus on sourcing units where the insert's self-aligning capability is matched by a housing that allows full rotational clearance.

Operational Demands in High-Temperature Zones

Construction and mining equipment often operate under the sun or near heat-generating processes like asphalt mixing. High ambient temperatures can reduce the viscosity of the grease and cause the inner ring bore to expand on the shaft. For units designated with high-temperature capabilities, the lubrication must be formulated to resist thinning and leakage. If the seal cannot retain the grease while excluding abrasive dust, the raceway will score within weeks [NEED_CITE: bearing failure due to high temperature and contamination].

Spherical Geometry and Load Distribution

The "spherical raceway" is the defining engineering feature of this insert. Unlike a standard deep groove ball bearing, the outer ring's outside surface and the housing bore are both ground to a matching radius. This allows the bearing to pivot, accommodating up to a few degrees of static misalignment. This design protects the bearing from the "binding" forces that occur when the shaft and the foundation are not perfectly parallel, a common occurrence in heavy, field-assembled steel structures.

The Hidden Costs of Soft Inner Rings

The market is flooded with "commercial grade" inserts that look correct but use low-carbon steel for the inner ring instead of through-hardened chrome steel. When the set screw tightens onto the shaft, a soft inner ring can distort, leading to fretting corrosion and eventual spinning on the shaft. This destroys both the bearing and the shaft journal. According to failure analysis standards like ISO 15243, surface distress from inadequate material hardness is a primary driver of premature replacement [NEED_CITE: ISO 15243 failure classification for surface distress].

Sourcing Beyond the Box

We do not just sell the box; we verify the pedigree. Our network of authorized distributor channels ensures that the UCPX13 units we supply are backed by traceable documentation. We provide cross-reference data that includes not just the bore size, but the specific seal type and grease fill, ensuring the replacement unit matches the OEM's original intent. We also assist with the country-of-origin documentation required for customs clearance in regions with strict import protocols.

Documentation & Authenticity

• Certificate of Conformity (COC): Provided by our verified supplier network, confirming the UCPX13 units meet the specified dimensional tolerances and material standards.
• Batch Traceability: Every box is marked with a lot code that can be cross-referenced with our internal procurement records for material certification.
• Country-of-Origin Files: Essential for import compliance in the Middle East and African markets, including HS code support for pillow block units.
• Third-Party Inspection: We can coordinate pre-shipment inspections to verify housing casting quality and seal integrity before the cargo leaves the port.

Storage, Handling & Mounting

• Keep the UCPX13 in its original anti-corrosion wrapping until the moment of installation; the corrosion-resistant features can be compromised by long-term exposure to humid storage conditions.
• Inspect the housing foot for flatness before bolting down; overtightening the mounting bolts on a misaligned base will restrict the spherical raceway's ability to self-align.
• Use the correct set screw torque for the shaft diameter; the high-speed capability of the insert depends on a secure, vibration-resistant lock to the shaft.
• Monitor re-greasing intervals if the unit is equipped with a grease fitting; purging old grease is vital to remove the particulate matter collected by the seal lips.

Technical Verification & Quotation

To ensure we provide the correct unit for your specific machinery, please provide the OEM equipment model or the shaft diameter and load conditions. Our technical team will verify the cross-reference and confirm the availability of the specific UCPX series variant required for your application.

Frequently Asked Questions

Q: What does the "spherical raceway" feature mean for my vibrating screen installation?
A: It allows the bearing to self-align with the housing, which is critical for vibrating equipment where the shaft and frame may flex under dynamic loads, preventing the bearing from binding and overheating.

Q: How do I confirm the authenticity of the UCPX13 unit before shipping?
A: We provide traceability documentation from authorized channels and can arrange for third-party verification of the markings and packaging against the manufacturer's official specifications.

Q: What is the significance of "Corrosion Resistant" in this bearing block model?
A: It typically indicates a specific coating or material treatment on the housing or insert, which extends service life in wet or chemically active environments like mining or agricultural processing.

Q: Can I get support for customs clearance with my order?
A: Yes, we provide the necessary country-of-origin documentation and HS code support to facilitate smooth import procedures for pillow block units.

Secure Your Machinery’s Uptime with Verified Sourcing
Contact our engineering desk today with your OEM part numbers or shaft specifications to receive a technical cross-reference and availability report.
