Combined Load Arrangements

Angular contact ball bearings are specified where a shaft carries radial and axial load together, as in spindles, pumps, compressors and precision drives. Performance depends on contact angle, arrangement and preload, so replacing just the base size without the suffixes…

Request a Quote Send Your List on WhatsApp
  • Authorized SKF supplier
  • Itemised, line-by-line quotes
  • Substitutes only with buyer approval
  • Supplying buyers worldwide
Application overview

SKF bearing selection for Combined Load Arrangements

Angular contact ball bearings are specified where a shaft carries radial and axial load together, as in spindles, pumps, compressors and precision drives. Performance depends on contact angle, arrangement and preload, so replacing just the base size without the suffixes can change how the whole bearing set behaves. Technical approvers check that the arrangement, precision class and cage type match the original design.

  • State the contact angle and the mounting arrangement (back-to-back, face-to-face or tandem) for paired bearings, as these set the load direction and stiffness.
  • Specify the preload class and the universal-matching suffix when bearings are ordered as matched sets for spindles or precision drives.
  • Confirm the precision class (for example P5 or P4) and the ball material, such as hybrid ceramic balls, for high-speed or low-heat positions.
  • For double row designs in pumps and compressors, include the cage and clearance suffixes (such as TN9, C3 or MT33) so the replacement suits the operating temperature.
Bearing categories

SKF bearing types used in Combined Load Arrangements

These SKF categories cover the bearing positions typical of this application. Open a category to compare designs and series.

View all SKF bearings

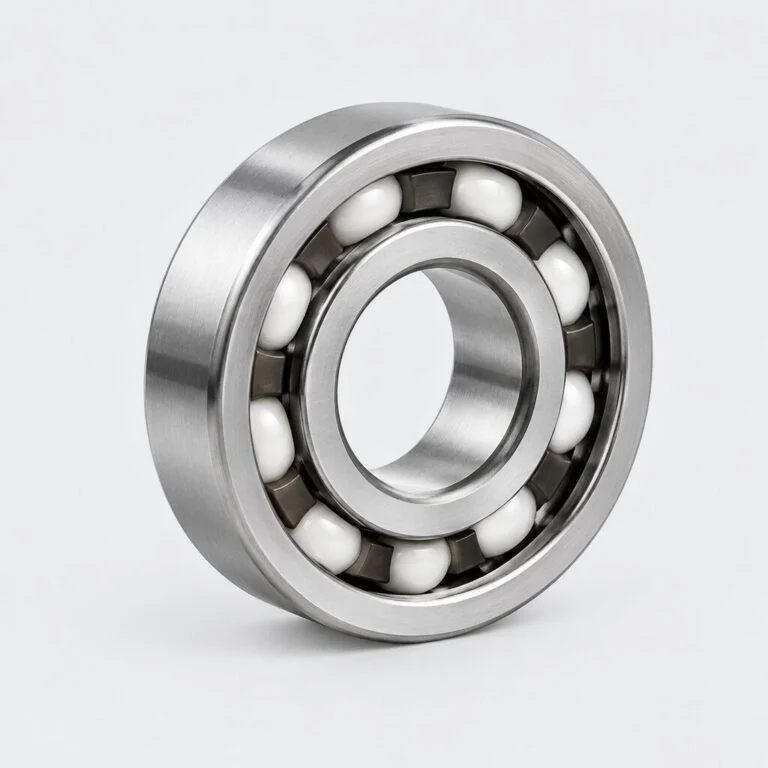

SKF Angular Contact Ball Bearings close-up 01 Angular Contact Ball Bearings 39 models SKF Super-Precision Angular Contact Ball Bearings close-up 02 Super-Precision Angular Contact Ball Bearings 3 models SKF Machine Tool Spindle Bearings close-up 03 Machine Tool Spindle Bearings 5 models SKF Ceramic Bearing close-up 04 Ceramic Bearing 17 models

Running several machines? Put it all on one list.

Bearings, housings and accessories for every machine in this application can go into one itemised inquiry, each line keeping its own SKF designation, internal code and quantity.

Send Your Model List
Products

SKF bearings for Combined Load Arrangements

Genuine SKF bearings matched to this application. Add any item to your inquiry and we quote it with designation, quantity and availability on each line.
