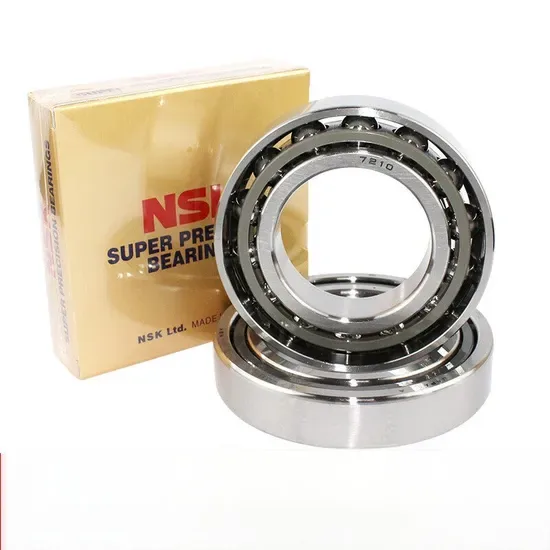

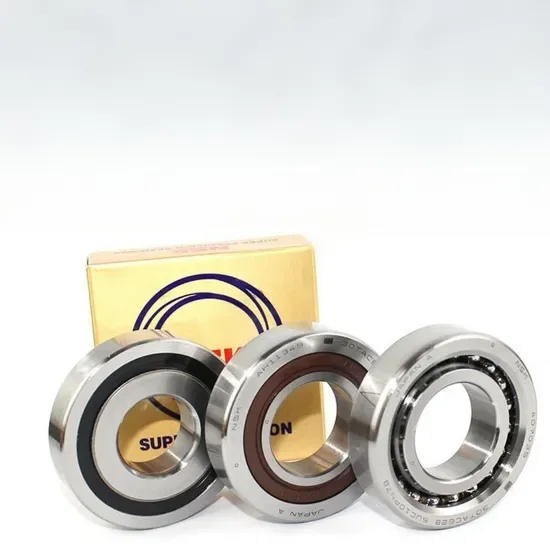

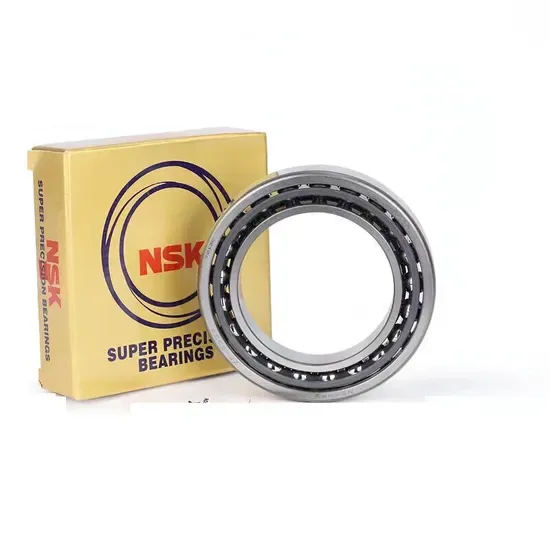

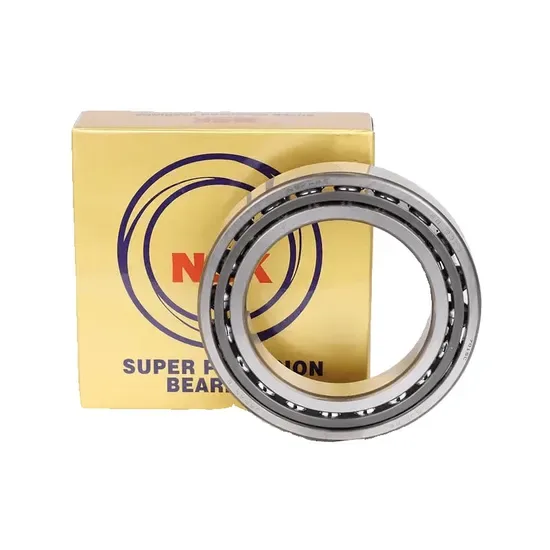

NSK 7900A5TRSULP4 Angular Contact Ball Bearing P4 Precision

Description

Authorized Channel Sourcing — Every NSK 7900A5TRSULP4 unit we ship traces back to verified regional distributor stock with full batch documentation.

Technical Specifications

Note: The suffix segments "5T" and "RSU" within the designation string remain unverified against the current NSK precision catalog and should be confirmed prior to final order placement.

Application Suitability

Why a 25° Contact Angle Changes Everything at 18,000 RPM

The NSK 7900A5TRSULP4 angular contact ball bearing survives where 15° alternatives collapse under axial thrust.

Back when I was still tearing down failed CNC spindles for a living, I pulled apart a grinding head that had been running a 15° contact angle bearing in an application generating substantial axial cutting forces. The raceway showed classic brinelling within 200 hours. A 25° angle distributes that axial component across a wider load zone on the outer ring, which is exactly what spindle designers intend when they specify the A5 suffix. Buyers who substitute a C-series bearing to save a few euros end up paying for a complete spindle rebuild [NEED_CITE: angular contact bearing load zone distribution under combined loading].

Where the 7900 Series Earns Its Place in Spindle Assemblies

The compact 10×22×6 mm envelope of the NSK 7900A5TRSULP4 angular contact ball bearing fits the tight radial constraints of high-frequency grinding spindles and small-diameter milling heads. At this bore size, shaft deflection is minimal, so the single-row SU arrangement lets engineers stack matched pairs in whatever configuration the spindle demands — back-to-back for moment load rigidity or face-to-face for thermal shaft growth tolerance. We routinely cross-check these pairing requirements against OEM spindle drawings before confirming shipment, catching arrangement errors that a simple part-number lookup would miss.

Thermal Expansion and Preload Survival at High Speeds

The polyamide TYN cage was chosen by NSK specifically because it runs cooler than pressed steel at elevated RPM. Steel cages generate more friction heat at the ball-pocket contact, and in a 10 mm bore bearing spinning above 30,000 RPM, that extra heat directly fights the light preload the "L" suffix establishes. When thermal expansion closes the internal clearance gap, the preload spikes and the bearing chokes itself. Polyamide’s lower mass also means less centrifugal force pulling the cage outward against the balls [NEED_CITE: cage material effect on high-speed bearing thermal equilibrium]. Temperature management in these small-bore spindle bearings is unforgiving — even a 10°C rise can shift the preload regime from light into medium territory, accelerating wear. Lubrication must match: oil-air mist systems are standard here because grease cannot replenish fast enough at these speeds without generating destructive churning heat.

Decoding the Suffix Stack on This Bearing

The A5 designation locks the contact angle at 25°, which balances radial capacity with meaningful axial stiffness — the sweet spot for most precision grinding and light milling spindles. The TYN polyamide cage is lighter and quieter than brass alternatives at high speed, though it imposes an upper temperature ceiling around 120°C continuous. The P4 precision class delivers the tight bore and OD tolerances that spindle builders need for predictable fit and running accuracy, sitting above standard P6 and P5 grades on the ISO 492 scale. The SU arrangement code means this bearing ships as a single universal unit, ground so that any combination of back-to-back or face-to-face stacking achieves the specified "L" light preload when clamped together. Light preload suits high-speed applications where minimizing friction heat matters more than maximizing rigidity [NEED_CITE: ISO 492 tolerance class definitions for angular contact bearings].

The Hidden Invoice Behind a Wrong Suffix

I have seen procurement teams match the bore and OD perfectly, then approve a substitute with a steel cage because the price was lower. That single substitution destroyed a spindle cartridge worth tens of thousands of euros in under six months. When you install a bearing with incorrect preload or the wrong cage material, the failure does not announce itself immediately — it hides inside vibration spectra and temperature logs until a catastrophic seizure forces an unplanned shutdown. ISO 15243 classifies these outcomes under subsurface fatigue and surface distress, both accelerated by preload errors [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Counterfeit bearings compound the problem: soft inner rings that pass a casual hardness check with a file but collapse under real centrifugal load. The real cost is never the bearing itself — it is the lost production shift, the expedited freight on a replacement spindle, and the warranty argument with the machine builder.

How We Keep Your Spindle Running Honest

Every NSK 7900A5TRSULP4 angular contact ball bearing we source moves through authorized distributor channels with paperwork that traces to the production lot. Our cross-reference database does not stop at the base number — we verify that cage material, contact angle, and precision suffix all match your OEM specification before any quote leaves our desk. When a spindle builder in Central Asia needed to confirm whether a local substitute matched the original NSK preload specification, we pulled the factory preload tolerance band and confirmed the mismatch before they committed to a wrong batch. We also supply Certificate of Conformity documentation and country-of-origin paperwork so your import clearance goes smoothly, regardless of destination port.

Documentation & Authenticity

• Certificate of Conformity from authorized NSK distributor confirming lot-level traceability for each 7900A5TRSULP4 shipment
• QR code verification pathway through NSK official authentication tools to confirm genuine origin
• Third-party runout inspection report validating P4 running accuracy on request before dispatch
• Country-of-origin documentation and HS code declaration package prepared for international customs clearance
• Dimensional inspection report covering bore, OD, and width tolerances against ISO 492 Class 4 limits

Storage, Handling & Mounting

• Retain the original sealed NSK packaging until the moment of mounting to prevent moisture contamination of the polyamide TYN cage
• Store P4-precision units flat in a climate-controlled area below 60% relative humidity to protect the open bearing raceways from corrosion
• Use lint-free gloves during handling — fingerprint residue on the 10 mm bore surface can compromise the interference fit on precision ground spindle shafts
• For DB or DF paired arrangements, keep matched sets sealed together; separating them risks losing the factory-lapped pairing surfaces that establish the specified light preload
• Mount using induction heating on the inner ring only, keeping temperature below 110°C to protect the polyamide cage from thermal degradation
• Open-type bearings in spindle applications rely on the housing seal design — confirm external sealing adequacy before introducing oil-air lubrication

Request a Technical Quotation

Share your spindle operating parameters — speed range, axial cutting forces, lubrication method — so we can verify that the NSK 7900A5TRSULP4 angular contact ball bearing matches your application envelope. If you are replacing an existing bearing, send us the OEM equipment number or the full suffix string from the nameplate and we will run a complete cross-reference check including cage, contact angle, and preload confirmation.

Frequently Asked Questions

Q: What does the 25° contact angle on the NSK 7900A5TRSULP4 mean for my spindle compared to a 15° version?
A: A 25° contact angle provides higher axial load capacity and stiffer thrust response, which is critical in grinding and milling spindles where axial cutting forces are significant. A 15° alternative would offer slightly lower friction but would deflect more under the same axial load, potentially affecting surface finish and dimensional accuracy of the machined part.

Q: How does P4 precision compare to ABEC 7?
A: P4 and ABEC 7 are functionally equivalent precision classes defined under different standards (ISO 492 and ABMA Std. 20 respectively). Both specify tight bore, OD, and running accuracy tolerances suitable for precision spindle applications. The NSK 7900A5TRSULP4 meets the ISO P4 designation.

Q: Can I substitute the TYN polyamide cage with a brass cage for higher temperature operation?
A: Brass cages tolerate higher continuous temperatures, but their greater mass increases centrifugal loading at high RPM and alters the thermal balance of the bearing. For spindle applications above 20,000 RPM, switching cage material requires a complete recalculation of preload and speed limits. We recommend confirming with the spindle OEM before substituting.

Q: What does the SU designation mean for pairing these bearings?
A: SU indicates a single universal bearing ground so that it can be paired in any arrangement — back-to-back, face-to-face, or tandem. When two SU bearings are clamped together, the light preload specified by the L suffix is established automatically by the ground face offsets.

Q: How do I verify the authenticity of the NSK 7900A5TRSULP4 I receive?
A: Genuine NSK precision bearings carry traceable batch markings and QR codes verifiable through NSK official authentication channels. We supply authorized distributor Certificate of Conformity documentation with every shipment and can provide additional third-party inspection reports upon request.

Verify Your Spindle Bearing Specification With Us
Send your OEM part number or operating parameters and we will confirm the correct suffix combination before you commit to an order. Contact our engineering team through the inquiry form on this page.
