Description
Traceable Authenticity Guaranteed — Every INA NKS30-XL needle roller bearing we dispatch ships with complete batch traceability documentation and QR verification pathways to confirm genuine origin before installation.
Technical Specifications
| Parameter | Value |
|---|---|

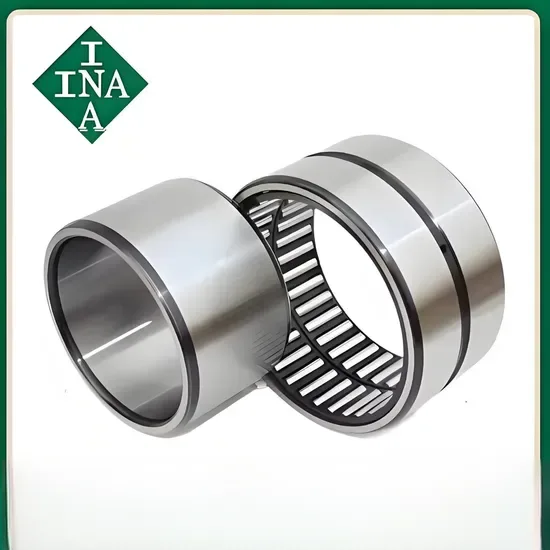

| Designation | INA NKS30-XL |
| Bearing Type | Needle Roller Bearing |
| Bore Diameter (Fw) | 28 mm |
| Outside Diameter (D) | 42 mm |
| Width (B) | 20 mm |
| Weight | 0.1 kg |
| Load Direction | Radial |
| Seal or Shield Type | Open |
| Number of Rows | Single Row |
| Material | Bearing Steel |
| Style | Without Outer Ring, Without Inner Ring |
| Origin | Germany |
The XL suffix designates X-life enhanced performance classification; specific load rating improvements should be confirmed against current INA catalog documentation.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Automotive Repair | Universal joint assemblies, steering column support bearings, transmission shafts |
| Industrial Machinery | Conveyor guide rollers, pivot arms, linkage mechanisms in packaging equipment |
| Material Handling | Forklift mast rollers, hoist sheave bearings, pallet jack wheel assemblies |
| Electric Motors | Small motor shaft support where compact radial envelope is critical |
What the XL Designation Actually Means for Load Capacity
X-life bearings deliver optimized raceway geometry that extends calculated service life under equivalent loading conditions.
Field experience across Middle East mining operations shows a pattern: maintenance teams swap needle rollers based on base designation alone, ignoring suffix differences that signal fundamental capacity variations. When equipment runs continuous shock loads — crushers, vibrating screens, aggregate conveyors — the difference between standard and enhanced-capacity variants becomes measurable within weeks. The INA NKS30-XL needle roller bearing carries the XL mark, indicating raceway surface optimization that improves stress distribution across needle contact zones. Skipping suffix verification during cross-reference substitution means accepting unknown load margins on equipment where unplanned downtime carries serious production costs [NEED_CITE: bearing failure classification and root cause analysis per ISO 15243].
Compact Envelope Demands Precise Shaft and Housing Preparation
This open-type needle roller design eliminates inner and outer rings entirely — the shaft journal and housing bore become the raceways. That architecture maximizes load capacity within the 28 mm × 42 mm × 20 mm envelope but shifts responsibility to your machining tolerances. Shaft hardness must reach HRC 58-62 with ground surface finish; housing bores need tight diameter tolerances to prevent needle skew under load. We cross-reference OEM equipment numbers against application parameters before confirming suitability, catching mismatches where standard bearings were specified for what the duty cycle actually demands.
Thermal Expansion and Lubrication Intervals in Continuous Operation
Radial-only needle bearings in material handling applications face moderate speeds but sustained radial loads that generate internal friction heat. The INA NKS30-XL needle roller bearing runs open-type, meaning your external sealing and relubrication intervals determine contamination ingress and grease degradation rates. In dusty quarry environments or cement plant conveyor systems, inadequate external sealing allows particulate penetration that scores needle surfaces and accelerates cage wear. Oil-mist or circulating oil systems extend relubrication intervals compared to grease packing, but housing design must accommodate the delivery method [NEED_CITE: needle bearing lubrication requirements and contamination sensitivity].
Raceway Geometry and Load Distribution Mechanics
The XL classification indicates modified raceway profiles that reduce edge stress concentration where needles contact the shaft and housing surfaces. In standard needle bearings, slight misalignment or shaft deflection concentrates load at needle ends, initiating surface fatigue that propagates into spalling. Optimized profiles distribute contact stress more uniformly across the full needle length, which becomes significant when shaft deflection is unavoidable — long conveyor roller shafts, pivot arms under eccentric loading, or mast assemblies experiencing side loads. The single-row configuration with machined cage maintains needle spacing and prevents edge-to-edge contact that would occur in full-complement arrangements.
Premature Replacement Costs Beyond the Bearing Price
Correct specification paired with verified genuine supply prevents cascading failures. Wrong clearance assumptions, incorrect cage material selection, or counterfeit bearings with soft raceways create failure modes that extend damage to shafts, housings, and adjacent components. ISO 281 life calculations assume proper mounting, adequate lubrication, and genuine material properties — assumptions that collapse when any variable deviates from specification [NEED_CITE: rolling bearing dynamic load rating and L10 life calculation methodology per ISO 281]. The INA NKS30-XL needle roller bearing sourced through unauthorized channels may carry correct markings while lacking the metallurgical properties and raceway geometry that justify the designation. Unplanned shutdowns on critical production equipment carry costs that dwarf the price differential between verified and unverified supply.
Technical Verification Before Commitment
Our sourcing operates through authorized distributor channels with documentation packages that trace each batch back through the supply chain. QR verification via official brand applications confirms authenticity before the bearing leaves quarantine. Cross-reference matching verifies clearance class, cage material, and precision suffix alignment — not just base number equivalence. Application-specific selection guidance addresses unusual load spectra, temperature ranges, or mounting constraints that standard catalog selection overlooks. Country-of-origin documentation supports import compliance requirements across different regional customs frameworks. Material certificates and dimensional inspection reports ship with every order, providing incoming quality verification before inventory commitment.
Documentation & Authenticity
- Supplier Certificate of Conformity linking batch number to INA production records for this NKS30-XL shipment
- QR code verification pathway enabling authenticity confirmation through official INA mobile application before installation
- Material certificate confirming bearing steel composition and heat treatment compliance for needle and cage components
- Dimensional inspection report verifying Fw 28 mm, D 42 mm, and B 20 mm tolerances against published specifications
- Country-of-origin documentation supporting customs clearance and import duty classification for international shipments
Storage, Handling & Mounting
- Maintain original sealed packaging until immediate pre-mounting to preserve factory-applied corrosion protection on the open-type bearing surfaces
- Store in climate-controlled inventory with humidity below 60% to prevent surface corrosion on the exposed needle rollers and cage assembly
- Use clean lint-free gloves during handling to prevent skin oils and particulate contamination on the raceway-contact surfaces
- Verify shaft journal hardness and surface finish before mounting since this ringless design uses the shaft as the inner raceway
- Confirm housing bore diameter tolerance matches INA specifications to prevent interference fit damage during press installation
Request Technical Documentation
Share your application parameters — radial load magnitude, operating speed range, ambient temperature, and mounting envelope constraints — so we can verify the INA NKS30-XL needle roller bearing matches your duty cycle requirements. Provide OEM equipment numbers for cross-reference validation against your existing installation. Request the complete documentation package including batch traceability, material certification, and country-of-origin papers before placing volume orders. Confirm current batch availability and lead time expectations for your procurement timeline.
Frequently Asked Questions
Q: How can I verify the authenticity of an INA NKS30-XL needle roller bearing before installation?
A: Genuine INA bearings carry QR codes scannable through the official INA application, linking the specific batch to manufacturer production records. We supply complete traceability documentation including Certificate of Conformity and batch identification that allows verification independent of visual inspection alone.
Q: What cross-reference factors matter beyond matching the base NKS30 designation?
A: Base number matching overlooks clearance class, cage material specification, and performance suffix differences like the XL designation. Substituting a bearing that matches the base number but lacks equivalent suffix specifications risks load capacity mismatch, thermal performance differences, or premature cage failure under actual operating conditions.
Q: When should I choose an open-type needle bearing versus sealed variants?
A: Open-type designs like the NKS30-XL suit applications where external sealing is engineered into the housing, where relubrication access is designed in, or where operating speeds generate heat that sealed variants cannot dissipate adequately. Sealed variants trade contamination protection for friction heat and speed limitations.
Q: What documentation supports import compliance for international shipments?
A: Each shipment includes country-of-origin certification, HS code classification support, material certificates, and dimensional inspection reports. These documents satisfy customs verification requirements and provide audit trails for quality management systems in regulated industries.
Q: What are typical lead times for less common needle bearing designations?
A: Availability varies by current stock position at authorized distribution points. Confirming batch availability early in your procurement planning allows realistic timeline expectations, particularly for designations with specific suffix requirements that may not appear in general inventory.
Verify Your INA NKS30-XL Requirement
Submit your application parameters and OEM reference numbers to confirm specification alignment and receive complete documentation review before commitment.
