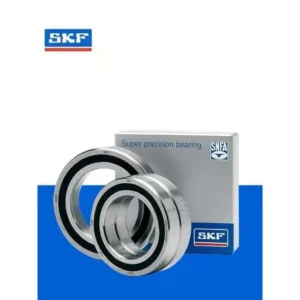

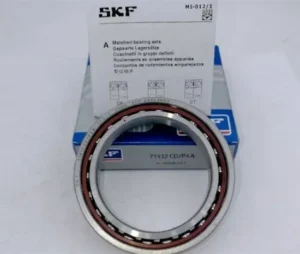

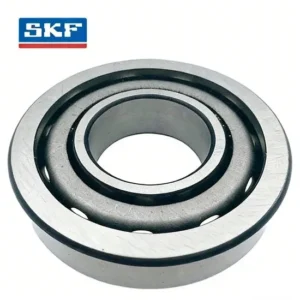

Traceable Precision Lot — Every SKF 7014acd/P4aqbcb angular contact ball bearing we supply ships with batch-level traceability documents tied to the manufacturer's production facilities, so your spindle rebuilds never hinge on paperwork gaps.

Technical Specifications

The suffix segment "qbcb" could not be fully decoded against publicly available catalog data; exact preload class and arrangement pairing should be confirmed with the manufacturer's current documentation before mounting.

Application Suitability

What Happens When You Match Only the Base Number on a Spindle Bearing

A 7014 bore-size replacement is never just a 7014 — the suffix string is where the spindle lives or dies.

I have seen machine shops pull a scorched spindle cartridge apart and find a bearing that "looked right" on the shelf: same bore, same outside diameter, but standard P0 tolerance instead of P4A, and a 15° contact angle where 25° was needed for the axial preload the spindle was designed around. The cage overheated in days, the seat got scored, and the repair invoice ran far beyond what a correct SKF 7014acd/P4aqbcb would have cost from the start [NEED_CITE: spindle bearing replacement cost vs bearing price ratio]. Cross-reference errors on precision angular contact bearings are a significant share of premature spindle failures in small-to-mid machine shops that lack dedicated procurement engineering.

How This Bearing Fits High-Speed Spindle Duty

The 25° contact angle on the SKF 7014acd/P4aqbcb gives it a meaningful axial stiffness advantage over 15° variants when the spindle sees combined radial and thrust loads — common on lathes and grinders where cutting forces push both radially into the workpiece and axially along the tool axis. P4A precision, which adds running accuracy checks on top of standard ISO class 4 dimensional tolerances, keeps runout within the tight envelope that high-speed spindles demand. When a procurement engineer sends us an OEM equipment number, we cross-check not just bore and OD but the full suffix string against the original spindle builder's specification, catching mismatches that catalog browsing alone would miss.

Spindle Thermal Behavior and Why Preload Matters

At sustained high speeds, inner ring temperature climbs faster than the housing, and the resulting thermal expansion eats into the internal clearance a bearing was designed with. If the preload on a matched arrangement is too light, the bearing loses stiffness and the spindle chatters; too heavy, and the balls skid, cage temperature spikes, and you get premature fatigue [NEED_CITE: thermal preload drift in angular contact spindle bearings]. Oil-air or oil-mist lubrication is typical here — grease cannot shed heat fast enough at the rpm ranges these spindles run. Sealed variants are sometimes specified to keep contaminants out without external seals adding friction, but open designs remain common where the spindle builder controls filtration and lube delivery internally.

Reading the Suffix String

The "ACD" segment confirms a 25° contact angle with an optimized internal geometry that distributes ball-to-raceway contact stress more evenly than earlier A-design variants, which matters for fatigue life under continuous combined loading. P4A precision goes beyond standard P4 by adding running accuracy verification — critical when a spindle's finished surface quality depends on sub-micron radial and axial runout. The single-row angular contact design inherently handles axial load in one direction, which is why these bearings are almost always mounted in opposed pairs or sets; the preload suffix tells you whether the factory paired them for light, medium, or heavy preload, and whether they stack back-to-back, face-to-face, or in tandem.

The Expense Hidden Inside a Wrong-Bearing Spindle Rebuild

A spindle that fails in the field does not just cost a bearing. It costs unplanned downtime on a machine that may be the bottleneck for an entire production cell, expedited freight for the replacement cartridge, and the labor of a specialist technician to reassemble, balance, and requalify the spindle [NEED_CITE: ISO 15243 rolling bearing failure classification]. If the root cause was a clearance or preload mismatch rather than normal fatigue, the replacement bearing will fail the same way — and the OEM warranty on the spindle cartridge is typically voided once non-original bearings are fitted inside it.

What We Do Before a Bearing Leaves Our Dock

Every SKF 7014acd/P4aqbcb angular contact ball bearing we ship is sourced through authorized distributor channels with documentation that traces back to the manufacturer. Our cross-reference database aligns clearance, cage material, and precision grade simultaneously — not just the base bore-diameter code — so substitutions across brands do not introduce hidden mismatches. We provide country-of-origin documentation for import clearance, and our team reviews application parameters with buyers before confirming an order, catching situations where a different preload class or contact angle would better suit the actual operating conditions.

Documentation & Authenticity

• Supplier Certificate of Conformity tied to the specific bearing batch, referencing the manufacturer's production lot
• Material certificate confirming bearing steel grade consistent with high-precision angular contact spindle requirements
• Dimensional inspection report verifying P4A running accuracy parameters before dispatch
• Country-of-origin documentation supporting import customs and buyer-side quality audits
• Batch and lot traceability records enabling post-delivery verification through the manufacturer's official channels
• QR code verification pathway via the brand's official application for on-site authenticity checks at your facility

Storage, Handling & Mounting

• Keep the bearing in its original sealed packaging until the moment of mounting; the P4A running accuracy depends on raceway surfaces free from dust ingress during storage
• Store flat in a climate-controlled area to prevent uneven loading on the cage that could distort ball spacing over time on this precision single-row unit
• Handle exclusively with clean, lint-free gloves — fingerprint residue on a 25° contact angle raceway can initiate corrosion pits that show up as vibration signatures weeks after spindle startup
• For matched sets, do not separate individual bearings or remove factory-applied pairing marks; misalignment during stacking destroys the preload calibration done at the manufacturer's facility
• Use induction heating for inner ring fitting rather than mechanical pressing, controlling temperature to avoid annealing effects that would compromise the hardened raceway

Frequently Asked Questions

Q: What does the P4A suffix add compared to standard P4 precision?
A: P4A meets all ISO class 4 dimensional tolerance requirements and adds specific running accuracy checks — typically radial and axial runout verification under controlled conditions. For spindle applications where surface finish and dimensional accuracy of machined parts depend on minimal spindle deflection, P4A is often the minimum acceptable grade.

Q: Can I substitute a 15° contact angle bearing in place of this 25° ACD design?
A: Not without engineering review. A 15° bearing offers lower axial stiffness and different load-sharing characteristics. If the spindle was designed around 25° contact angle preload, switching to 15° can result in insufficient axial rigidity, leading to chatter marks on finished parts and accelerated bearing wear.

Q: How do I verify the arrangement and preload class indicated by the suffix?
A: The full suffix string specifies the pairing arrangement and preload level. Because suffix conventions can vary between production periods, we recommend confirming the exact meaning of every segment against the manufacturer's current catalog or by sharing the full designation with our technical team for cross-verification before placing an order.

Q: Is this bearing suitable for grease lubrication at high speeds?
A: Grease lubrication is generally limited to moderate speeds on precision angular contact bearings of this size. High-speed spindle applications typically require oil-air or oil-mist systems to manage heat generation. Confirm the lubrication method against the spindle builder's specification.

Q: What cross-brand equivalents exist for this bearing?
A: Cross-reference matching must align not only bore, OD, and width but also contact angle, precision class, preload, and cage design. Share the full OEM part number or the complete SKF designation with us, and we will map verified equivalents across major brands with full suffix alignment.
