Description
Traceable Batch Sourcing — Every INA NKS32-XL needle roller bearing leaves our warehouse with full lot documentation and authorized channel paperwork matched to its specific production batch.
Technical Specifications
| Parameter | Value |
|---|---|

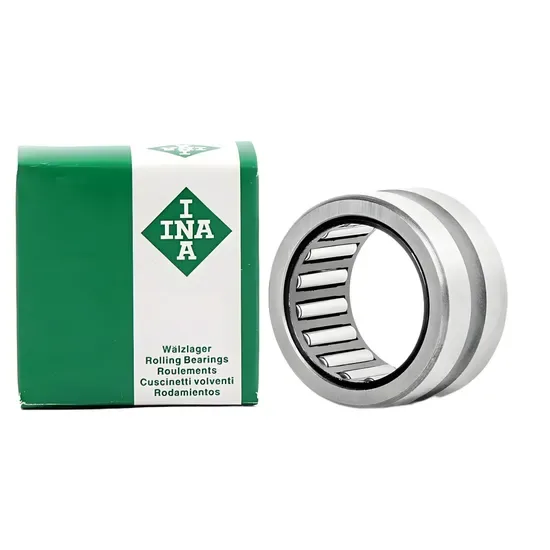

| Designation | INA NKS32-XL |
| Bearing Type | Needle Roller Bearing |
| Bore Diameter (Fw) | 32mm |
| Outside Diameter (D) | 47mm |
| Width (B) | 22mm |
| Weight | 0.12kg |
| Cage Material | Bearing Steel |
| Seal or Shield Type | Open |
| Bore Type | Without Inner Ring |
| Arrangement | Single Row, Without Outer Ring |
| Number of Rows | 1 |
The XL suffix designation on this part requires verification against the current INA catalog to confirm internal geometry and load rating specifics before finalizing application engineering.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Automotive and Heavy Vehicle Repair | Transmission gear shafts, steering column joints, universal joint crosses |
| Industrial Machinery | Conveyor idler rollers, oscillating pivot points, gear reduction housings |
| Material Handling | Forklift mast roller tracks, crane sheave axles, chain guide assemblies |
What a Soft Cage Costs on an Oscillating Conveyor
Cage fracture under oscillating load is the leading field failure mode for misapplied needle roller bearings.
I handled a warranty case in Sonora where a mining operation substituted their needle rollers with dimensionally identical parts that ignored the XL suffix entirely. The substitute’s cage cracked under oscillating conveyor load within three months, scoring the shaft and forcing a full week of unplanned downtime. [NEED_CITE: rolling bearing failure mode classification per ISO 15243] The procurement team had matched bore, outside diameter, and width but never checked whether the internal geometry and cage profile were engineered for the reversing load spectrum. That single oversight cost far more than the price difference between a genuine INA NKS32-XL needle roller bearing and the lookalike.
How the NKS32-XL Meets Radial Load Demands in Tight Envelopes
This INA NKS32-XL needle roller bearing operates without inner or outer rings, meaning the shaft and housing bore serve directly as raceways. That ringless construction maximizes the needle complement within the compact 32×47×22mm cross-section, delivering radial load capacity that would require a significantly larger conventional bearing to match. For equipment designers working inside constrained gearboxes or pivot assemblies, this footprint advantage is often the deciding factor. We routinely cross-check shaft hardness and surface finish requirements when sourcing these for clients, since the mating surfaces become functional bearing components.
Load Spectrum, Speed, and Lubrication Realities
Radial loads on needle rollers in heavy vehicle transmissions and conveyor pivots are rarely steady — they pulse, reverse, and spike with each cycle. The open type design of the INA NKS32-XL means lubrication selection falls entirely to the equipment builder or maintenance team, which is actually an advantage in environments where grease purge intervals must match contamination exposure. [NEED_CITE: needle roller bearing lubrication interval adjustment for contaminated environments] Temperature swings in outdoor material handling equipment also affect grease viscosity and film thickness, making the choice between lithium-complex and polyurea greases a consequential one. Shaft and housing tolerance grades directly control the operating clearance once the bearing is press-fitted, and getting that wrong turns a well-specified part into a premature failure.
Decoding the Ringless Construction and Steel Cage
The absence of inner and outer rings means every needle roller contacts the shaft journal and housing bore directly, demanding hardened and ground mating surfaces typically in the HRC 58-62 range. The steel cage retains needle spacing under high-speed conditions where polymer cages would soften, while the open construction permits direct oil feed or grease packing tailored to the specific duty cycle. At 0.12kg, the bearing’s low mass reduces rotational inertia in oscillating applications where direction reverses frequently. [NEED_CITE: shaft hardness requirements for needle roller bearings without inner ring] The 47mm outside diameter and 22mm width establish a section height that balances load distribution across the needle complement without excessive housing machining.
The Hidden Expense of Ignoring Suffix-Level Verification
Specifying the correct INA NKS32-XL needle roller bearing from a traceable source avoids a cascade of downstream costs that never appear on a purchase order. A cage failure on a single pivot bearing can cascade into shaft scoring, housing bore damage, and complete assembly teardown — converting a planned component swap into a multi-day rebuild. [NEED_CITE: unplanned downtime cost multiples in industrial maintenance per ISO 14224] Counterfeit bearings with soft cages and cloned markings pass casual visual inspection but fail under the first real load cycle, and warranty claims are voided the moment unauthorized parts are discovered in the assembly. Correct sourcing with documentation protects both equipment uptime and liability exposure.
How We Source and Verify for Procurement Teams
Our authorized distributor channel relationships mean every INA NKS32-XL needle roller bearing arrives with batch-level traceability paperwork, not generic packing slips. We run cross-reference checks that align bore diameter, outside diameter, width, and suffix designation simultaneously — catching the exact mismatches that cause field failures. For import buyers, we prepare country-of-origin documentation and HS code classification to clear customs without delays. When a client needs to substitute across brands due to availability, our interchange database compares cage type, needle complement, and clearance class alongside the base dimensions so the replacement performs identically in service. Third-party dimensional inspections are available before shipment for buyers who require independent confirmation.
Documentation & Authenticity
- Certificate of Conformity issued through authorized INA distributor channels with batch and lot traceability matching the production run
- QR code verification pathway via Schaeffler official apps to confirm authenticity of each INA NKS32-XL needle roller bearing before installation
- Material certificate confirming bearing steel composition for buyers subject to quality audit requirements
- Third-party dimensional inspection reports verifying bore diameter, outside diameter, and width tolerances prior to dispatch
- Country-of-origin documentation and HS code support for import compliance across Middle East, African, and Latin American customs regimes
Storage, Handling & Mounting
- Keep the INA NKS32-XL in original sealed packaging until the moment of installation; the ringless design exposes needle surfaces to corrosion if left unwrapped in humid workshop environments
- Inspect shaft journal and housing bore surfaces for hardness and roughness before mounting, since the shaft and housing act as the functional raceways for this 32mm bore bearing
- Apply clean gloves when handling the open-type needle complement to prevent fingerprint acid etching on the bearing steel surfaces
- Verify shaft diameter tolerance and housing bore tolerance match the INA recommended fits for a 47mm outside diameter ringless needle roller before pressing into position
- Pack grease or circulate oil immediately after installation; the open construction leaves needle surfaces unprotected until the lubrication system is active
Request an Engineering Review Before You Commit
Share your application parameters — load profile, speed range, operating temperature, and shaft/housing tolerances — so we can verify the INA NKS32-XL needle roller bearing matches your duty cycle before issuing a formal quotation. If you are replacing an existing part, provide the OEM equipment number or current bearing marking so our cross-reference team can confirm interchange compatibility at the suffix level. We will return documentation samples, lead time confirmation, and batch availability within one business day of receiving your inquiry.
Frequently Asked Questions
Q: How can I verify the authenticity of an INA needle roller bearing after delivery?
A: Scan the QR code on the packaging using the Schaeffler official app to confirm production batch and distribution path. We also supply a Certificate of Conformity with each shipment that traces back through authorized distributor channels, and we support third-party material verification if your quality system requires it.
Q: What cross-reference factors matter beyond bore, outside diameter, and width?
A: Needle complement count, cage material, and the suffix designation all affect load capacity and fatigue life. When we cross-reference the INA NKS32-XL against alternate brands, we align these three parameters alongside the base dimensions so the substitute performs equivalently under the same load spectrum.
Q: What shaft and housing tolerances does a ringless needle roller bearing require?
A: Without inner and outer rings, the shaft journal and housing bore become functional raceways. The shaft typically requires a hardened and ground surface, and both mating surfaces must meet the tolerance grades specified in the INA technical catalog for the 32×47mm section. We provide those fit recommendations during the selection review stage.
Q: How should open-type needle rollers be lubricated in contaminated environments?
A: Open construction allows flexible lubrication selection, but it also places responsibility for contamination exclusion on the equipment’s external seals. Grease purge intervals should be shortened in dusty or wet conditions, and we advise on grease type and replenishment schedules based on the specific operating temperature and speed parameters you share with us.
Q: What documentation ships with a bulk order?
A: Each bulk shipment includes Certificates of Conformity with batch traceability, material certificates, dimensional inspection records, and country-of-origin paperwork. We also provide HS code classification support to streamline import clearance at your destination port.
Confirm Your NKS32-XL Sourcing
Send us your application parameters or OEM equipment number, and we will return a verified quotation with full documentation and lead time.
