Description
Authorized Channel Procurement — every 22315E bearing ships with a traceable batch record linking back to the manufacturer’s authorized distributor network.
Technical Specifications
| Parameter | Value |
|---|---|

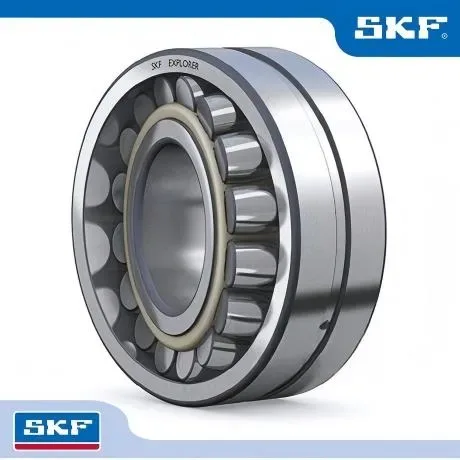

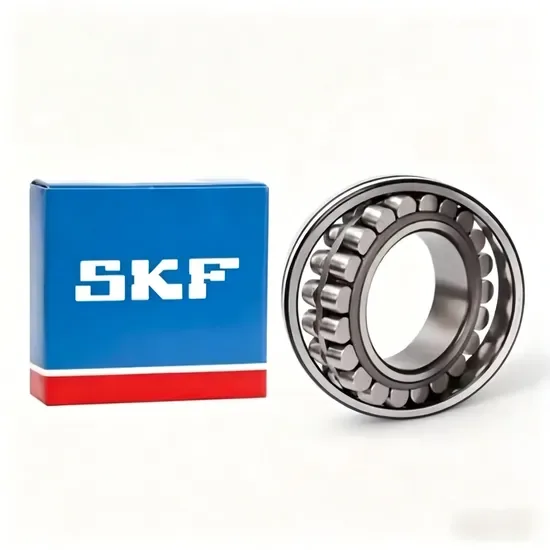

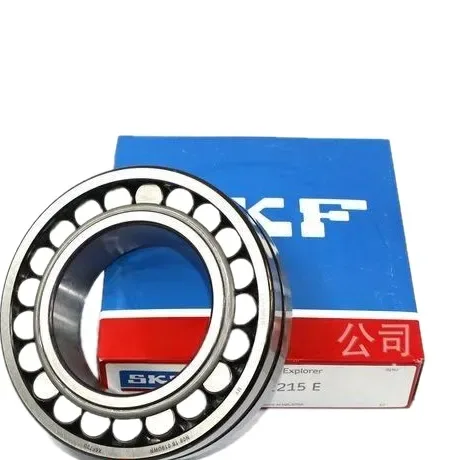

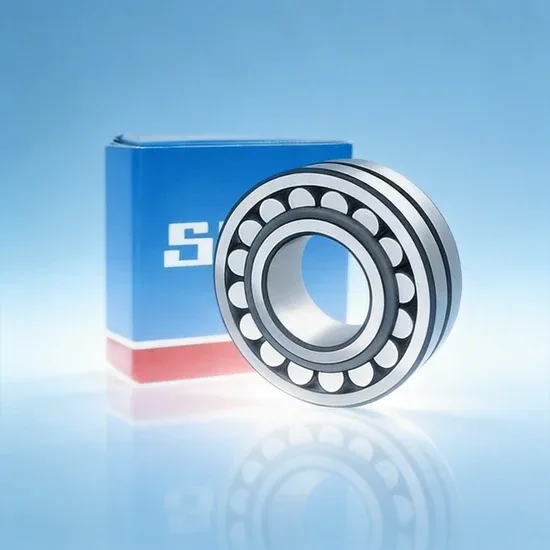

| Designation | SKF 22315E Spherical Roller Bearing |
| Bearing Type | Spherical Roller Bearing |
| Bore Diameter (d) | 75mm |
| Outside Diameter (D) | 160mm |
| Width (B) | 55mm |
| Cage Material | Steel (stamped) |
| Number of Rows | Two |
| Bore Type | Cylindrical |
| Internal Design | E — reinforced internal design |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining and crushing | Jaw crusher eccentric shaft, cone crusher main frame pivot |
| Steel and metallurgy | Continuous caster guide rolls, hot strip mill work roll necks |
| Material handling | Vibrating screen exciter mechanism, feeder drive shafts |
| Industrial machinery | Paper machine press section rolls, heavy-duty conveyor pulleys |
What a Clearance Mismatch Costs on a Crusher Eccentric
A standard CN clearance bearing installed where the thermal profile demands C3 will bind before the first shift ends.
I watched a Zambian copper mine lose a full production day because the 22315 spherical rollers they received matched the base number but carried the wrong internal clearance. The crusher ran for three weeks before the stamped steel cages cracked under vibration. The replacement cost was nothing compared to the idle crusher and the crew standing around. When you source a 22315E spherical roller bearing supplier for heavy machinery, the conversation has to go beyond the bore and outside diameter [NEED_CITE: rolling bearing failure mode classification per ISO 15243]. Counterfeit units with soft inner rings and cloned QR codes are slipping through unverified middlemen, and a buyer matching only the base designation is leaving clearance, cage material, and precision suffixes to chance.
How the 22315E Fits into High-Vibration Duty
The E suffix tells you this bearing carries a reinforced internal design — more rollers, a larger roller diameter, and a window-type stamped steel cage engineered to handle the shock loads that vibrating screens and crusher eccentric shafts impose. That internal geometry spreads the radial load across a wider contact zone, which matters when the equipment is running at low speed under heavy, oscillating force. We once cross-referenced a competitor’s part number for a mining client in Peru and found their existing supplier had been shipping a non-E variant with fewer, smaller rollers. The crushers were eating through sets every two months. Switching to the reinforced E design changed the replacement interval entirely.
Operating Environment and Performance Demands
Crushing and screening equipment generates radial loads that spike with every rock impact, often combined with axial thrust from inclined screen decks. Speeds stay low to moderate, but vibration amplitude is relentless, which means the cage design and roller guidance matter more than limiting speed ratings. Temperature rises from friction and process heat can expand the shaft, so the installed clearance must account for that thermal growth or the bearing will preload itself into early failure. Sealing is typically the responsibility of the equipment housing rather than the bearing itself — open-type spherical rollers rely on the screen box or crusher frame to keep out abrasive dust. Installation on a cylindrical bore calls for controlled heating or hydraulic pressing to avoid brinelling the raceways during mounting [NEED_CITE: mounting practices for spherical roller bearings under heavy interference fit].
Decoding the E Suffix and Core Specifications
The E in 22315E is not a marketing tag — it specifies a reinforced internal design with an increased number of rollers and optimized roller profile. More rollers in the load zone mean each individual contact stress is lower, directly extending fatigue life under the same operating load per ISO 281. The stamped steel cage is lightweight and handles the high-frequency vibration of screening applications well, though in extremely dirty environments a machined brass cage variant would offer better roller guidance under contamination. The 55mm width provides the axial envelope needed for the two-row spherical arrangement, giving the bearing its self-aligning capability to tolerate shaft deflection and housing misalignment common in fabricated steel screen frames. The cylindrical bore simplifies mounting on solid shafts with standard interference fits.
The Hidden Cost of Wrong-Sourcing a Spherical Roller
A 22315E spherical roller bearing supplier offering prices that undercut authorized channels significantly is often moving re-labeled, refurbished, or outright counterfeit product. Soft inner rings from inferior steel grades spall within weeks under crusher shock loads. Cloned QR codes that pass a casual phone scan point to fabricated verification pages. The real cost is never the bearing itself — it is the unplanned downtime on a production-critical crusher, the secondary damage to shafts and housings when a seized bearing is forced out, and the voided equipment warranty when the OEM traces the failure to an unverified component [NEED_CITE: economic impact of unplanned downtime in mining operations].
Why Procurement Teams Source This Bearing Through Us
Every 22315E we ship is traced back through the authorized distributor channel with batch-level documentation, not a generic packing slip. Our cross-reference database aligns clearance class, cage material, and internal design suffix — not just the base number — so when you substitute across SKF, NSK, FAG, TIMKEN, NTN, or KOYO, the replacement actually fits the application. We provide country-of-origin documentation upfront because we know import compliance officers in mining-heavy regions flag bearing shipments without clear provenance. Authenticity verification guidance walks your receiving team through QR validation using the brand’s official app, not a web link on a sticker. When an unusual load, speed, or temperature condition enters the conversation, our technical team reviews the selection against actual operating parameters rather than just quoting a catalog line.
Documentation & Authenticity
- Supplier Certificate of Conformity referencing the specific batch and lot number for the 22315E units in your shipment
- Material certificate confirming bearing steel grade (GCr15 / 100Cr6) with chemical composition and hardness data
- Country-of-origin documentation prepared for customs clearance in mining and industrial import jurisdictions
- Third-party dimensional inspection report verifying bore, OD, width, and radial internal clearance before dispatch
- QR code verification pathway using the brand’s official mobile application for on-site authenticity confirmation at your receiving dock
Storage, Handling & Mounting
- Keep the 22315E in its original sealed packaging until the moment of mounting; early exposure to humid crusher-house air starts corrosion on the exposed steel cage and raceways
- Store horizontally on a flat shelf to prevent the 55mm-wide inner ring from brinelling against the outer ring under its own weight during long-term storage
- If induction heating is used for the cylindrical bore mounting, do not exceed the manufacturer’s recommended temperature to avoid annealing the E-design reinforced raceway surfaces
- After mounting, verify residual radial clearance with a feeler gauge between the top roller and outer ring — the reinforced E internal geometry has a specific target range that differs from standard designs
- In vibrating screen applications, confirm the housing seals are intact before startup; the open-type 22315E depends entirely on external sealing to keep abrasive screen material out of the roller complement
Start Your 22315E Inquiry
Share your operating parameters — load profile, speed, ambient temperature, and equipment OEM number — so we can verify the 22315E is the correct clearance and internal design variant for your application. If you are cross-referencing from another brand, provide the full designation including all suffixes so we can align clearance, cage, and precision class accurately.
Frequently Asked Questions
Q: How do I verify that the 22315E bearings I receive are genuine?
A: Request the supplier Certificate of Conformity with batch and lot traceability, then validate the QR code on each bearing using the brand’s official mobile application. We provide authenticity verification guidance so your receiving team knows exactly what a genuine verification response looks like versus a cloned redirect page.
Q: What does the E suffix mean on a 22315E spherical roller bearing?
A: The E suffix indicates a reinforced internal design with an increased roller complement and optimized roller profile. This configuration delivers higher load-carrying capacity and improved fatigue life under heavy radial and shock loading conditions typical in crushers and vibrating screens.
Q: Can I substitute another brand for the SKF 22315E?
A: Cross-brand substitution is possible across SKF, NSK, FAG, TIMKEN, NTN, and KOYO, but the match must align the E-type reinforced internal design, cage material, and clearance class — not just the base 22315 number. We provide complete interchange comparison so the replacement performs identically in your application.
Q: What documentation comes with a 22315E shipment for import clearance?
A: We supply country-of-origin documentation, HS code details, a Certificate of Conformity, and material certificates. This documentation package supports customs clearance in regions with strict import requirements for industrial bearings, particularly in mining and heavy machinery sectors.
Confirm Your 22315E Specification and Availability
Send us your full designation, application parameters, or OEM equipment number for a technical review and quotation with lead time.
