Description

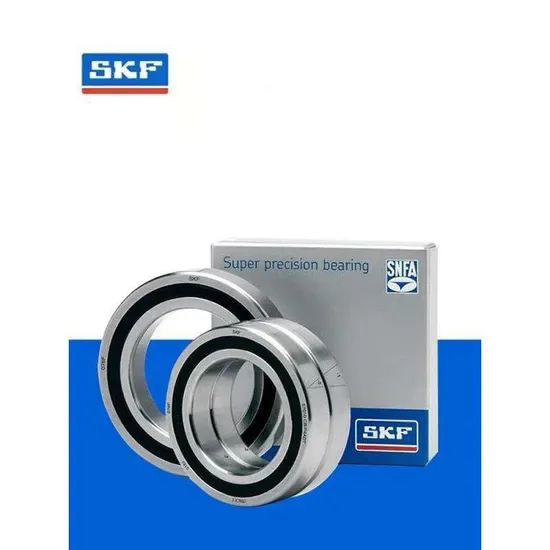

Authorized Channel Sourcing — Every SKF 7020 Cegb/P4a angular contact ball bearing we supply ships with traceable batch documentation from verified distributor networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SKF 7020 Cegb/P4a |
| Bearing Type | Angular Contact Ball Bearing |
| Bore Diameter (d) | 100 mm |
| Outside Diameter (D) | 150 mm |
| Width (B) | 24 mm |
| Precision Class | P4A |
| Contact Angle | 15° |
| Number of Rows | Single Row |
| Structure | Angular Contact |
| Weight | 0.100 kg |
| Origin | China |
Note: The suffixes ‘eg’ and ‘b’ within the identifier require confirmation against the manufacturer catalog to determine exact cage design and preload specifications.
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Machinery | High-speed pump shafts, precision gearbox input stages |
| Machine Tool Manufacturing | Lathe headstocks, milling machine spindle cartridges |
| Robotics | Rotary actuator joints, precision positioning stages |
What Happens When a 15° Spindle Bearing Gets Mislabeled as 25°?
A contact angle error turns a high-speed asset into a thermal liability.
On a recent service call for a CNC retrofit, a maintenance manager assumed all "7020" suffixes were interchangeable across brands. The replacement unit ran hot within hours because the axial stiffness profile of a 25° design overwhelmed a system calibrated for the lower friction of a 15° contact angle. This SKF 7020 Cegb/P4a angular contact ball bearing is engineered specifically to manage the predominantly radial loads typical of precision spindles while minimizing heat generation [NEED_CITE: thermal displacement in high-speed spindle assemblies]. When procurement teams focus only on the bore and outside diameter, they leave the cage material, clearance, and contact angle to chance, inviting premature cage failure or thermal binding on the shop floor.
Matching the 7020 Design to Spindle Load Profiles
High-speed spindles demand a bearing that can handle radial cutting forces without generating excess friction heat. This SKF 7020 Cegb/P4a angular contact ball bearing utilizes a 15° contact angle, which provides a larger contact ellipse for radial loads compared to steeper angle variants. We often see buyers attempt to substitute higher-angle bearings for increased axial capacity, only to find the spindle chatters under load. Our technical review process ensures the contact angle, precision class, and preload match the OEM equipment requirements before the order is finalized.
The Friction and Thermal Challenges in Precision Equipment
In machine tool environments, heat is the primary enemy of tolerance. A bearing running at high RPM must balance lubrication starvation against the drag of over-greasing. The P4A precision class ensures that dimensional and running accuracy remain within tight bounds, preventing the uneven load distribution that causes localized hot spots [NEED_CITE: influence of running accuracy on bearing temperature]. Furthermore, the internal geometry of a single-row 15° design allows for more efficient oil-air or oil-mist lubrication flow, which is critical for maintaining thermal stability during long production cycles.
Decoding the P4A Precision and 15° Contact Geometry
The P4A designation goes beyond standard ISO tolerance class 4; it includes additional specifications for running accuracy, which is vital for preventing workpiece surface waviness. Combined with the 15° contact angle, this bearing offers a "high-speed" internal geometry that reduces ball gyroscopic spin and sliding friction. While a 25° or 40° bearing would offer more thrust capacity, it would do so at the cost of higher friction and reduced limiting speed, making the 15° variant the correct engineering choice for belt-driven or motorized spindles where radial precision is paramount.
The Hidden Costs of Suffix and Precision Mismatches
Installing a standard P0 or P5 bearing in a P4A application leads to unpredictable runout and vibration. According to ISO 15243, a significant share of premature bearing failures stems from application errors rather than manufacturing defects [NEED_CITE: bearing failure modes per ISO 15243]. A mismatch in clearance or precision can lead to catastrophic spindle damage, voiding machine warranties and resulting in unplanned downtime that far exceeds the initial savings of buying a non-specified part. Authenticity verification is not just about avoiding fakes; it is about ensuring the internal geometry matches the application’s physical demands.
How We Secure the Sourcing Chain for Precision Bearings
We approach the SKF 7020 Cegb/P4a angular contact ball bearing not as a commodity, but as a critical component of your production line. Our sourcing relies on authorized distributor channels that provide full batch and lot traceability. We do not simply match the base number; we verify the contact angle, precision suffixes, and cage specifications to ensure interchangeability. Every shipment is supported by origin documentation and material certificates, allowing you to clear customs and satisfy internal quality audits without delay.
Documentation & Authenticity
- Supplier Certificate of Conformity (COC) referencing the specific batch and lot number.
- Material certificates confirming high-grade bearing steel composition.
- Dimensional inspection reports verifying P4A running accuracy and bore tolerances.
- Country-of-origin documentation required for international import compliance.
- QR code verification pathways for validating authenticity via official brand applications.
Storage, Handling & Mounting
- Keep the SKF 7020 Cegb/P4a in its original sealed packaging until the moment of installation to preserve the anti-corrosion coating.
- Store in a temperature-stable environment; thermal cycling can affect the precision tolerances of P4A class components.
- Use lint-free gloves during handling to prevent skin acids from etching the high-precision raceway surfaces.
- Ensure the spindle housing and shaft seats are cleaned with solvent and checked for out-of-roundness before mounting.
- For oil-air lubrication systems, ensure the bearing’s open design is compatible with the external sealing arrangement of the spindle cartridge.
Requesting a Technical Review for Your Spindle Application
To ensure this bearing matches your specific machinery, please provide the OEM equipment number or the application parameters, including speed, load, and lubrication type. We can then perform a cross-reference check and confirm the availability of the specific suffix combination you require. Our team is ready to provide a quotation that includes all necessary traceability and origin documents for your procurement records.
Frequently Asked Questions
Q: What does the P4A precision class mean for my machine tool spindle?
A: P4A indicates a high level of dimensional and running accuracy that is tighter than standard P5 or P4 classes. This minimizes vibration and runout, which is essential for achieving high-quality surface finishes on machined parts.
Q: How does the 15° contact angle compare to a 25° design?
A: A 15° contact angle is optimized for high-speed operation and predominantly radial loads. It generates less friction heat than a 25° or 40° design, making it superior for most precision spindle applications where thermal stability is required.
Q: Can I use this bearing if my original part has a different suffix?
A: Suffixes define critical features like cage material and preload. You must verify that the "Cegb" configuration matches your application’s requirements for speed and stiffness. We can assist in decoding these suffixes to ensure a safe substitution.
Q: How do you verify the origin and authenticity of the bearing?
A: We supply bearings sourced through authorized channels with traceable documentation. You can verify the authenticity using the manufacturer’s official app via the QR code on the packaging, and we provide certificates of conformity for every batch.
Q: What documentation is provided for import purposes?
A: We provide a complete documentation package that includes the Certificate of Conformity, material certificates, dimensional reports, and official country-of-origin documentation to support your customs clearance process.
Secure Your Spindle Reliability Today
Contact our technical sales team to verify the suffix configuration and request a formal quotation for the SKF 7020 Cegb/P4a angular contact ball bearing. We will confirm stock availability, lead times, and the specific documentation package for your next maintenance window.
