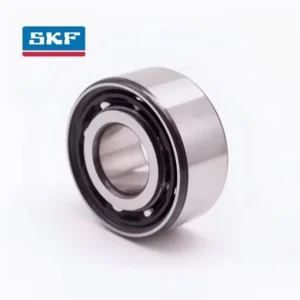

Authenticity via QR — Every SKF 3217-a double row angular contact ball bearing we dispatch includes verifiable factory batch codes scannable through official brand applications.

Technical Specifications

Application Suitability

Why Suffix Variations Dictate Survival in High-Speed Spindles

Minor designation discrepancies trigger catastrophic thermal runaway.

I have personally investigated spindle seizures at international trade shows where a standard 3217 was forced into a slot demanding the specific internal geometry of a 3217-A variant. The missing design optimization altered the internal clearance, causing severe temperature spikes under high-speed rotation [NEED_CITE: bearing failure mode classification per ISO 15243]. Sourcing the exact SKF 3217-a double row angular contact ball bearing prevents these costly misalignments. When procurement teams ignore suffix details to save marginal costs or reduce lead times, they inadvertently introduce critical weak points into the drivetrain. The resulting friction heat degrades the lubricant rapidly, leading to cage disintegration and complete shaft lockup within hours of operation.

Matching the 30° Contact Angle to Combined Loads

When machine tool spindles face simultaneous radial and axial cutting forces, the 30° contact angle of this SKF 3217-a double row angular contact ball bearing provides the necessary rigidity. Our engineering team routinely cross-references these load profiles against OEM specifications to ensure the selected configuration handles the exact moment loads without premature raceway fatigue. In automotive transmission systems, this specific contact geometry absorbs the complex thrust generated by helical gears while maintaining precise shaft positioning. The non-aligning characteristic further ensures that the bearing does not mask underlying housing misalignments, forcing proper mechanical correction rather than relying on the bearing to compensate for structural flaws.

Managing Thermal Expansion and Lubrication Boundaries

High-speed pump applications generate substantial friction heat, directly impacting internal clearance and lubricant viscosity. Selecting between oil and grease lubrication depends entirely on the operating rpm and cooling availability, while the non-aligning design demands strict shaft concentricity to avoid edge loading [NEED_CITE: thermal expansion effects on bearing clearance]. Misjudging these thermal dynamics often leads to cage failure long before the rolling elements show wear. Furthermore, the separated design of the bearing components requires careful handling during assembly to prevent contamination. If grease is chosen, the relubrication intervals must be strictly calculated based on the thermal load, whereas oil circulation systems must maintain adequate flow rates to flush away wear particles and dissipate heat effectively.

Decoding Cage Materials and Precision Classes

The availability of steel, copper, and nylon cages allows operators to optimize for specific speed and vibration environments; copper cages typically excel in high-load, high-vibration scenarios, while nylon variants reduce weight and noise at elevated speeds. Furthermore, selecting the correct precision class—from standard P0 up to ultra-precise P2—is critical for spindle runout control. Ignoring the precision rating in high-speed robotics joints introduces unacceptable positional errors, compromising the entire automated assembly process. The cage material must also be compatible with the chosen lubricant, as certain synthetic oils can chemically degrade specific polyamide compounds over extended operational periods.

The Financial Drain of Interchangeability Assumptions

Assuming a generic double row angular contact ball bearing can substitute for a specifically suffixed variant invites unplanned downtime and catastrophic damage to adjacent spindle components. According to ISO 281 life calculation frameworks, even slight deviations in internal clearance or contact angle drastically reduce the calculated fatigue life [NEED_CITE: dynamic load rating adjustments per ISO 281]. This negligence voids equipment warranties and escalates maintenance budgets exponentially. When a spindle seizes due to an incorrect internal geometry match, the collateral damage often extends to the motor coupling, housing seals, and the workpiece itself. The true cost is never just the replacement bearing; it encompasses the lost production hours, expedited shipping fees, and the extensive labor required to rebuild the entire spindle assembly.

Securing Traceability for Critical Suffix Variants

We maintain massive spot inventory specifically to address urgent maintenance requirements where a missing suffix could halt an entire production line. Our cross-brand equivalent model consultation ensures that if the exact SKF 3217-a double row angular contact ball bearing is unavailable, we provide technically validated alternatives rather than blind substitutions. Every shipment includes complete traceability documentation, guaranteeing the internal design matches your original equipment manufacturer's strict tolerances. Unlike generalist traders who merely move boxes, our technical sales team actively verifies the suffix implications before confirming the order. This proactive validation prevents the disastrous consequences of shipping a visually similar but internally incompatible component to a client facing a critical machine breakdown.

Documentation & Authenticity

• Certificate of Conformity validating the Gcr15 bearing steel metallurgy for each batch.
• Original factory batch traceability codes linked to the specific production run.
• Official app QR authentication to verify the genuine origin of the bearing.
• Dimensional and running accuracy inspection reports confirming the selected P-class tolerance.

Storage, Handling & Mounting

• Retain the original vapor-phase inhibitor packaging until mounting to protect the Gcr15 steel from humidity.
• Use induction heating for the inner ring, strictly monitoring temperature to preserve the selected precision class.
• Apply clean lint-free gloves when handling the separated components to prevent sweat-induced corrosion on the raceways.
• Verify the specific cage material requirements before applying oil or grease to avoid chemical degradation of nylon variants.

Engineering Data Required for Technical Validation

To accurately verify the suitability of this configuration, please provide your exact radial and axial load profiles, operating speeds, and thermal constraints. Sharing the original equipment manufacturer's part number allows our technical team to perform a rigorous cross-reference check and confirm the precise internal geometry required for your application. Additionally, detailing the environmental exposure, such as coolant splash in machine tools or dust in agricultural machinery, helps us recommend the most appropriate sealing or shielding strategy. This collaborative technical review ensures that the final selected bearing not only fits the physical envelope but also delivers the expected service life under your specific operational parameters.

Frequently Asked Questions

Q: How does the 30° contact angle affect load distribution?
A: A 30° contact angle optimizes the bearing to handle combined radial and axial loads simultaneously. This geometry provides higher axial rigidity compared to smaller angles, making it highly suitable for machine tool spindles and high-speed pumps where cutting forces or fluid pressures generate significant thrust components alongside radial weights.

Q: What does the unverified "-a" suffix imply for replacement?
A: The "-a" suffix is currently unverified and requires direct manufacturer catalog confirmation. It likely indicates a specific internal design modification or clearance variation. Installing a standard variant without this exact suffix risks internal geometry mismatch, leading to severe thermal buildup and premature seizure in high-speed applications.

Q: How do I choose between steel, copper, and nylon cages?
A: Steel cages offer high mechanical strength for heavy-load environments. Copper cages provide superior durability and heat dissipation in high-vibration or high-speed scenarios. Nylon cages reduce weight and operating noise but have strict upper temperature limits. The choice depends entirely on your specific rpm, load, and thermal conditions.

Q: What precision class is recommended for machine tool spindles?
A: Machine tool spindles typically demand P4 or P2 precision classes to minimize radial and axial runout, ensuring superior surface finish and machining accuracy. Standard P0 or P6 classes are generally reserved for less critical general machinery where strict rotational accuracy and minimal vibration are not primary operational requirements.
